FM10
Process Optimisation, Mobile Computing
Tablet PC ready for vehicle and forklift installation Ruggedized Tablet and docking unit in sturdy magnesium alloy housing Protection class IP65 all around incl. Interfaces Shock and vibration protected (MIL-STD-810G) Antiscratch resistive touch (finger & stylus) SMA connector for external antenna 10-60 V input, wide operating temperature range, mounting accessories etc. Field-replaceable front unit (Tablet) reduces service costs and downtime The ideal partner for warehouse, logistics, automotive, outdoor etc.

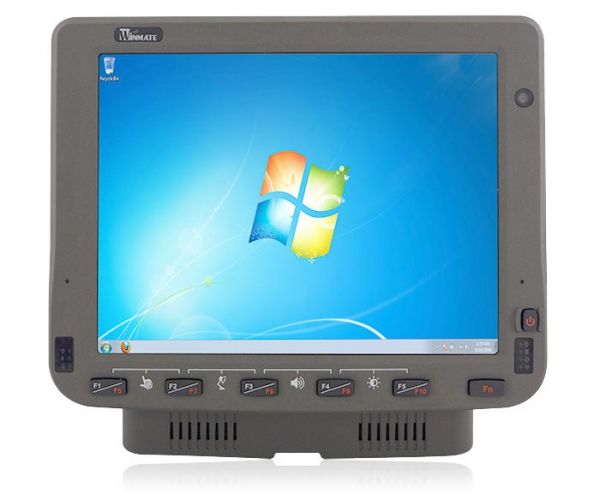

01-Fahrzeug-montierbarer-PC-FM10 / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
02-Vehicle-Mount-PC-Function-Keys-FM10 / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
03-Industrial-Vehicle-Computer-Docking-Station-FM10 / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
Order number:
23100493
gross price: €2,278.85
€1,915.00 *
gross price: €2,278.85
Prices plus VAT plus shipping costs
Ready to ship today,
Delivery time appr. 1-3 workdays
SPEZIFIKATIONEN
| Order number: | 23100493 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| series name: | Vehicle Mounted Computer |
| Manufacturer item number: | FM10 |
| mechanics: | Vehicle Mount Computer |
| dimensions width: | 26,8 |
| dimensions height: | 21,4 |
| dimensions depth: | 3,5 |
| weight: | 1,7 |
| Material housing: | Magnesium Legierung / Magnesium alloy |
| protection device: | IP65 |
| colour: | Schwarz / black |
| cooling: | lüfterlos / fanless |
| Display-diagonal (inch): | 10,1 |
| aspect ratio: | 16:9 |
| resolution: | 1024 x 768 |
| brightness: | 400 cd/m² |
| contrast: | 1200:1 |
| Display-Technology: | LCD, LED Backlight |
| Touch-Screen : | Projected Capactive / Multi-Touch |
| usability: | Finger/Stift / finger/pen |
| CPU Typ: | Atom |
| CPU Model: | E3845 |
| CPU speed: | 1,91 GHz |
| CPU cores: | 4 |
| RAM size (MB): | 4096 |
| RAM Typ: | SO-DDR3L |
| RAM speed: | 1600 |
| SSD design: | M.2 |
| SSD capacity: | 64 |
| SSD number: | 1 |
| WLAN: | Ja / yes |
| WLAN-Standard: | IEEE 802.11 a/b/g/n/ac |
| Bluetooth: | Ja / yes |
| Camera front: | Ja / yes |
| Camera front resolution: | 2MP |
| USB: | 1x USB 3.0 |
| Card Slot: | 1x SIM Slot, 1x SD Slot |
| Docking connector: | 1x 19-pin Docking Connector |
| operating system: | Windows 10 |
| operating temperatur min.: | -10°C |
| operating temperatur max.: | 50°C |
| Shock: | MIL-STD-810G Method 516.6 Procedure I |
| Vibration: | MIL-STD-810G Method 514.6 Procedure I |
| Drop: | MIL-STD-810G Method 516.6, 4 ft |
| voltage input DC: | 10 V-60 V |
| battery: | 7.6V, 5800 mAh Li-Polymer Battery (2S1P) |
