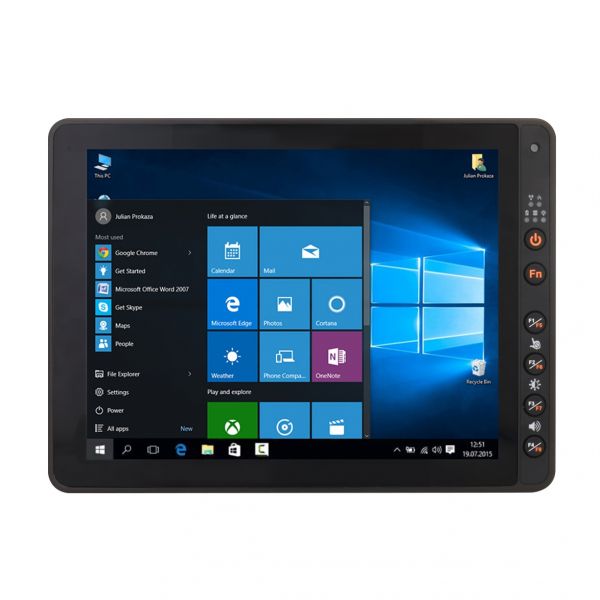

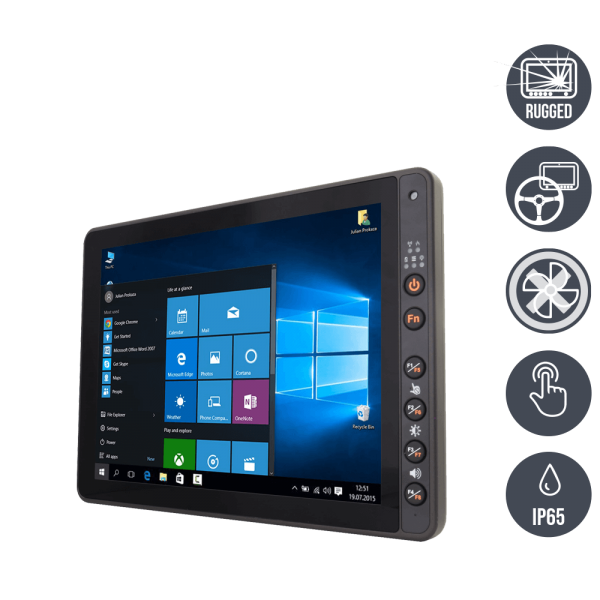

FM12AD-V
Process Optimisation, Vehicle Mount Computer

Tablet PC ready for vehicle and forklift installation Ruggedized Tablet in sturdy magnesium alloy housing Protection class IP65 all around incl. Interfaces Shock and vibration protected (MIL-STD-810H) Antiscratch resistive touch (finger & stylus) SMA connector for external antenna 10-60 V input, wide operating temperature range, mounting accessories etc. The ideal partner for warehouse, logistics, automotive, outdoor etc. Long-term availability

02-Fahrzeug-montierbarer-PC-FM12AD-V / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
02-Fahrzeug-montierbarer-PC-FM12AD-V / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
01-Fahrzeug-montierbarer-PC-FM12AD-V / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
01-Fahrzeug-montierbarer-PC-FM12AD-V / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
03-Fahrzeug-montierbarer-PC-FM12AD-V / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
03-Fahrzeug-montierbarer-PC-FM12AD-V / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
04-Fahrzeug-montierbarer-PC-FM12AD-V / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
04-Fahrzeug-montierbarer-PC-FM12AD-V / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
Order number: 25120001
gross price: €3,034.50
€2,550.00 *

Prices plus VAT plus shipping costs

Delivery time: upon request

HIGHLIGHTS
  • Für Fahrzeug- und Gabelstapler-Einbau
  • Widerstandsfähige Gehäuse aus Magnesium-Legierung
  • IP65 wasser- und staubdicht
  • Schock- und Vibrations-Resistenz gemäß MIL-STD-810H
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 25120001
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: Vehicle Mounted Computer
Manufacturer item number: FM12AD-V
mechanics: Vehicle Mount Computer
dimensions width: 30,7
dimensions height: 22,5
dimensions depth: 5.7
weight: 2,5
Material housing: Aluminium / aluminium
protection device: IP65
colour: Schwarz / black
VESA-Mounting Interface: VESA 75 x 75 / 100 x 100 mm
cooling: lüfterlos / fanless
Display-diagonal (inch): 12,1
aspect ratio: 4:3
resolution: 1024 x 768
brightness: 400 cd/m²
contrast: 1000:1
Display-Technology: LCD, LED Backlight
Touch-Screen : Projected Capactive / Multi-Touch
usability: Finger/Stift/Handschuh / finger/pen/glov
CPU Typ: Core i5
CPU Model: 1235U
CPU speed: 1,3 GHz
CPU cores: 10
RAM size (MB): 8192
RAM max. Größe (MB: 32768
RAM Typ: SDRAM-DDR5
SSD design: NVMe
SSD capacity: 128
SSD number: 1
safety: TPM 2.0
WLAN: Ja / yes
Bluetooth: Ja / yes
WWAN: Optional / optional
Ethernet_connections: 1x RJ-45
Ethernet data transfer: 1 x Gigabit-LAN
Camera front: Ja / yes
Camera front resolution: 2MP
USB: 1x USB 3.0 Type C (OTG), 1x USB 2.0 Port
serial: 2x RS-232
LAN: 1x RJ45 - 10/100 Mbps
Card Slot: 1x Micro SD Slot, 1x Dual-Nano SIM Slot
Power: 1x 10-60 V/DC, DC Plug
controls: 6 Keys: Power, 5x Function
operating temperatur min.: -30°C
operating temperatur max.: 50°C
Shock: MIL-STD-810H Method 516.8 Procedure I
Vibration: MIL-STD-810H Method 514.8 Procedure I
voltage input DC: 10 V-60 V
external power supply: 12 V/DC, 100 - 240 V/AC, DC plug
