ITMH100-EX
ATEX Computing

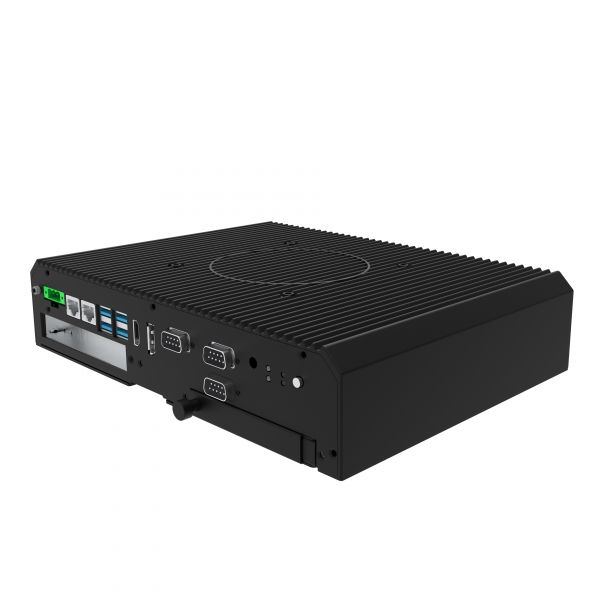

ITMH100-EX M Series Box PC Intel® Tiger Lake UP3 Core™ i5-1135G7 Ex Certificate: Class 1, Division 2, ATEX Grade zone 2 and IECEx certified for hazardous area applications Expansion slot for PCIex4 Support wide range 9-29 V DC input Optional with Modular front Display as a Panel PC VESA Mount
01-Industrie-Embedded-PC-ITMH100-EX / TL Produkt-Welten / Industrie-PC / Embedded-PC
02-Industrie-Embedded-PC-ITMH100-EX / TL Produkt-Welten / Industrie-PC / Embedded-PC
03-Industrie-Embedded-PC-ITMH100-EX / TL Produkt-Welten / Industrie-PC / Embedded-PC
04-Industrie-Embedded-PC-ITMH100-EX / TL Produkt-Welten / Industrie-PC / Embedded-PC
Order number:
15100542
gross price: €0.00
Price on request
gross price: €0.00
Prices plus VAT plus shipping costs
Delivery time: upon request
SPEZIFIKATIONEN
| Order number: | 15100542 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| series name: | EmbeddedLine |
| Manufacturer item number: | ITMH100-EX |
| mechanics: | Embedded-PC |
| dimensions width: | 27,6 |
| dimensions height: | 20,7 |
| dimensions depth: | 6,0 |
| Material housing: | Metall / metal |
| protection front: | IP20 |
| protection device: | IP20 |
| colour: | schwarz / black |
| controls: | 2 Keys: Power, Reset, Status-LEDs |
| VESA-Mounting Interface: | VESA 100 x 100 mm |
| wall mounting: | Ja / yes |
| cooling: | lüfterlos / fanless |
| chipset: | Intel System on chip |
| CPU Typ : | Core i5 |
| CPU Model : | 1135G7 |
| CPU 64bit : | Ja |
| CPU speed: | 2,4 GHz |
| CPU cores: | 4 |
| CPU socket: | FCBGA1449 |
| RAM size (MB): | 4096 |
| RAM max. size (MB): | 32768 |
| RAM Number of benches: | 2 |
| RAM Typ : | SO-DDR4 |
| RAM speed: | 3200 |
| PCI Express x16 : | 1 |
| Grafik Controller: | Intel Iris Xe Graphics |
| Ethernet Controller: | Intel I211-AT + I219-LM |
| safety: | TPM 2.0 |
| Mini-PCIe-slot: | 1 |
| SSD design: | M.2 |
| SSD max. number: | 1 |
| SSD capacity (GB): | 128 |
| Display: | 1x DP 1.4, 1x HDMI 2.0 (optional) |
| USB : | 4 x USB 3.2 Gen.1 (Type-A) |
| LAN: | 2x RJ45 - 10/100/1000 Mbps |
| Audio : | Line-Out, Mic-In |
| Seriell : | 3 x RS-232 |
| voltage input DC: | 9-29 V/DC |
| power adapter: | 100 - 240 V/AC, 4-pin, extern |
| WLAN: | Optional / optional |
| operating temperatur min.: | 0°C |
| operating temperatur min.: | 50°C |
| warranty: | 24 Monate / 24 months |
