W22ITWS-MHB1-EX
ATEX Computing

22" (1920 x 1080) M Series HMI Panel PC Intel® 11th Generation Tiger Lake UP3 Core™ i5 Ex Certificate: Class 1, Division 2, ATEX Grade zone 2 and IECEx certified for hazardous area applications Aluminum, anti-corrosion treated housing Protection class IP65 Front side protected Projected Capacitive Multi-Touch Screen (PCAP) Support wide range 9-29 V DC input Panel mount / VESA Mount

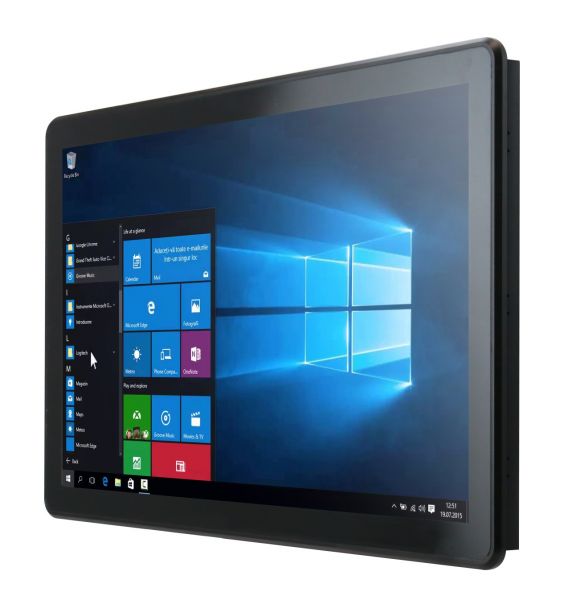

01-HMI-Panel-PC-Multi-Touch-W22ITWS-MHB1-EX
01-HMI-Panel-PC-Multi-Touch-W22ITWS-MHB1-EX
02-HMI-Panel-PC-Multi-Touch-W22ITWS-MHB1-EX
02-HMI-Panel-PC-Multi-Touch-W22ITWS-MHB1-EX
03-HMI-Panel-PC-Multi-Touch-W22ITWS-MHB1-EX
03-HMI-Panel-PC-Multi-Touch-W22ITWS-MHB1-EX

Order number: 23221134
gross price: €0.00
Price on request

Prices plus VAT plus shipping costs

Delivery time: upon request

HIGHLIGHTS
  • Diverse Einbau-Frontausführungen
  • Frontseitiger IP65-Schutz
  • P-CAP Touch-Screen
  • Langzeitverfügbarkeit
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 23221134
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: M-Serie HMI
Manufacturer item number: W22ITWS-MHB1-EX
mechanics: Panel Mount
dimensions width: 53,26
dimensions height: 32,41
dimensions depth: 9,42
Material housing: Stahlblech / steel sheet
Material Front : Stahlblech / steel sheet
protection front: IP65
colour: schwarz / black
controls: 2 Keys: Power, Reset, Status-LEDs
VESA-Mounting Interface: VESA 100 x 100 mm
mounting: Einbau von vorne / front installation
cooling: lüfterlos / fanless
Display-diagonal (inch): 21,5
aspect ratio: 16:9
resolution: 1920 x 1080
brightness: 350 cd/m²
contrast: 1000:1
Display-Technology: LCD, LED Backlight
Touch-Screen or glass: Projected Capactive / Multi-Touch
Touch Interface: USB
Manufacturer controller: P-CAP Touchcontroller
voltage input DC: 9-29 V/DC
external power supply: 12 V/DC, 100 - 240 V/AC, 4-pin
HDMI: 1 x HDMI 2.0 (optional)
DisplayPort: 1 x DisplayPort
USB: 4 x USB 3.2 Gen.1 (Type-A)
serial: 3 x RS-232
Audio: Mic-In, Line-Out
LAN: 2x RJ45 - 10/100/1000 Mbps
CPU Typ: Core i5
CPU Model: 1135G7
CPU 64bit: Ja
CPU speed: 2,4 GHz
CPU cores: 4
CPU socket: FCBGA1449
RAM size (MB): 4096
RAM max. size (MB): 32768
RAM Number of benches: 2
RAM Typ: SO-DDR4
RAM speed: 3200
Grafik Controller: Intel Iris Xe Graphics
safety: TPM 2.0
CPU class: Core i3 / i5 / i7
Expansion slots: 1 x mPCIe, 1 x PCIe-x16
SSD design: M.2
SSD max. number: 1
SSD capacity (GB): 128
Ethernet connections: 2 x RJ-45
Ethernet data transfer: 2 x Gigabit-LAN
Ethernet Controller : Intel I211-AT + I219-LM
WLAN : Optional / optional
Bluetooth : optional / optional
Betriebssystem: Optional
operating temperatur min.: -20°C
operating temperatur max.: 60°C
warranty: 24 Monate / 24 months
