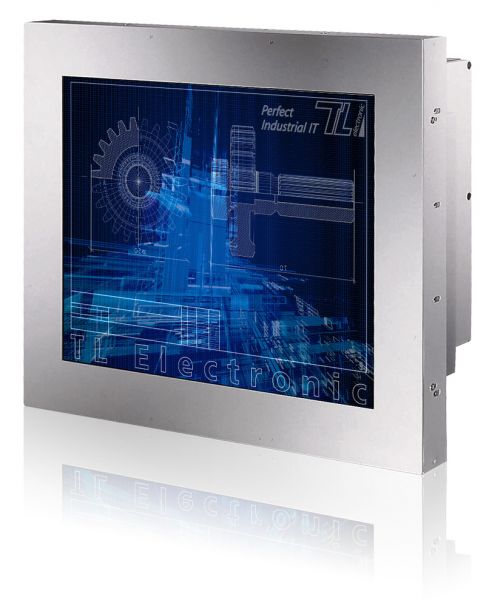

F 17I-PMA-ERU
Panel-PC
Einbau-Panel-PC für den professionellen Einsatz
Panel-Industrie-PC in robuster Stahlblechausführung
Stabile Aluminium-Frontplatte (IP65-geschützt)
Ausgelegt für industrielle Anwendungen im Dauerbetrieb
FlexLine Smallfront / TL Produkt-Welten / Panel-PC / Panel Mount (Einbau von vorne) / Touch-Screen für 1-Finger-Bedienung
Order number:
22702034
gross price: €684.25
€575.00 *
gross price: €684.25
Prices plus VAT plus shipping costs
Ready to ship today,
Delivery time appr. 1-3 workdays
SPEZIFIKATIONEN
| Order number: | 22702034 |
| mechanics: | Panel Mount |
| dimensions width: | 46,6 |
| dimensions height: | 39,0 |
| dimensions depth: | 13,5 |
| Material Front : | Aluminium / aluminum |
| protection front: | IP65 |
| colour: | RAL 7035 / light grey |
| controls: | 2 Keys: Power, Reset |
| VESA-Mounting Interface: | VESA 75 x 75 mm |
| Display-diagonal (inch): | 17,0 |
| aspect ratio: | 4:3 |
| resolution: | 1280 x 1024 |
| brightness: | 230 cd/m² |
| Display-Technology: | LCD, LED Backlight |
| Touch-Screen or glass: | Resistive Touch |
| Touch Interface: | USB |
| Manufacturer controller: | ELO |
| VGA: | 1 x 15-pin D-sub |
| USB: | 4 x USB 2.0, 2 x USB 3.0 |
| serial: | 1 x RS-232/422/485 |
| LAN: | 1x RJ45 - 10/100/1000 Mbps |
| PS/2: | 1x Mini-DIN |
| CPU Typ: | Core i5 |
| CPU Model: | 2400 |
| CPU 64bit: | Ja |
| CPU speed: | 3,1 Ghz |
| CPU cores: | 4 |
| RAM size (MB): | 4096 |
| HDD design: | 2.5 |
| HDD connection: | SATA |
| HDD capacity (GB): | 120 |
| Ethernet connections: | 1 x RJ-45 |
| Ethernet data transfer: | 1 x Gigabit-LAN |
| operating temperatur min.: | 0°C |
| operating temperatur max.: | 50°C |
| warranty: | 6 Monate / 6 months |
Weiterführende Links zu "F 17I-PMA-ERU"
Verfügbare Downloads:
