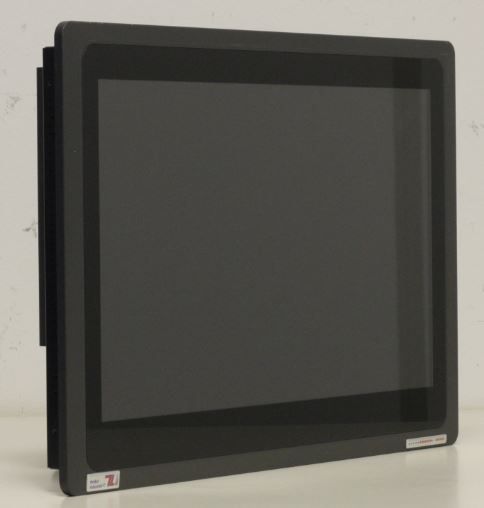

PT 18W-1082-PMA-MTU
Panel-PC
Built-in Panel PC for professional use Industrial Panel PC in sturdy steel sheet design Robust aluminium front panel (IP65 protected) Designed for industrial applications in continuous operation
gross price: €1,255.45
Prices plus VAT plus shipping costs
Ready to ship today,
Delivery time appr. 1-3 workdays
Order number: | 26180000 |
Manufacturer: | PT |
Matchcode manufacturer: | nein |
Manufacturer: | Protech |
mechanics: | Panel Mount |
dimensions width: | 38,5 |
dimensions height: | 31,8 |
dimensions depth: | 11,5 |
weight: | 8,8 |
Material housing: | Aluminium / aluminium |
Material Front : | Aluminium / aluminum |
protection front: | IP65 |
colour: | schwarz / black |
controls: | 2 Keys: Power, Reset |
mounting: | Einbau von vorne / front installation |
cooling: | lüfterlos / fanless |
Display-diagonal (inch): | 18,5 |
aspect ratio: | 16:9 |
Display-Technology: | LCD, LED Backlight |
Touch-Screen or glass: | Projected Capactive / Multi-Touch |
Manufacturer controller: | P-CAP Touchcontroller |
voltage input DC: | 9-36 V/DC |
external power supply: | 12 V/DC, 100 - 240 V/AC, 4-pin |
VGA: | 1 x 15-pin D-sub |
USB: | 4 x USB 3.0 |
serial: | 3 x RS-232, 1 x RS232/422/485 |
Audio: | Mic-In, Line-Out |
LAN: | 2x RJ45 - 10/100/1000 Mbps |
CPU Typ: | Core i3 |
CPU Model: | 3120ME |
CPU 64bit: | Ja |
CPU speed: | 2,4 GHz |
CPU cores: | 2 |
RAM size (MB): | 4096 |
RAM Typ: | SO-DDR3L |
HDD design: | 2.5 |
HDD connection: | SATA |
HDD capacity (GB): | 500 |
Ethernet connections: | 2 x RJ-45 |
Ethernet data transfer: | 2 x Gigabit-LAN |
operating temperatur min.: | 0°C |
operating temperatur max.: | 50°C |
warranty: | 6 Monate / 6 months |
