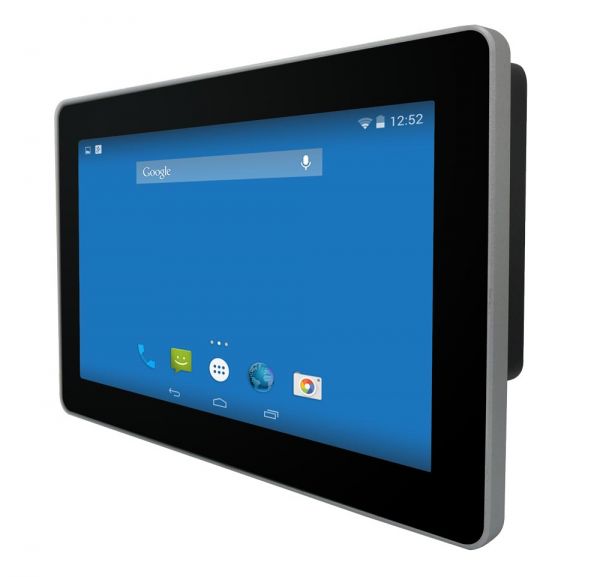

HMI Panel PC with multitouch for professional use Flat PCAP glass front without dirt-collecting edges Programmable LED signal bar Designed for industrial applications in continuous operation Easy installation with rear VESA mounting interface

01-HMI-Panel-PC-Multi-Touch-W10FA3S-PCH2 / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
01-HMI-Panel-PC-Multi-Touch-W10FA3S-PCH2 / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Order number: 23100454
gross price: €470.05
€395.00 *

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • 1 x Console Port (Mini USB), 1 x USB OTG, 1 x USB 2.0 (Type-A)
  • robustes Stahlblech-Chassis
  • VESA-Montageschnittstelle
  • P-CAP Touch-Screen
Download PDF datasheet

Order number: 23100454
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: S-Series
Manufacturer item number: W10FA3S-PCH2-PoE
mechanics: Chassis (VESA-Mounting)
dimensions width: 26,46
dimensions height: 17,33
dimensions depth: 3,57
weight: 1,35
Material housing: Stahlblech / steel sheet
protection front: IP65
VESA-Mounting Interface: VESA 75 x 75 mm
cooling: lüfterlos / fanless
Display-diagonal (inch): 10,1
aspect ratio: 16:9
resolution: 1280 x 800
brightness: 350 cd/m²
contrast: 800:1
Display-Technology: LCD, LED Backlight
Touch-Screen or glass: Projected Capactive / Multi-Touch
Touch Interface: USB
Manufacturer controller: P-CAP Touchcontroller
voltage input DC: 12 V/DC
external power supply: 12 V/DC, 100 - 240 V/AC, 4-pin
HDMI: 1 x Micro HDMI (optional)
serial: 1 x RS-232
Audio: 1 x Speaker
LAN: 1x RJ45 - 10/100/1000 Mbps
CPU Typ: A9
CPU Model: Cortex A9
CPU speed: 1,0 GHz
CPU cores: 2
RAM size (MB): 1024
SSD design: eMMC
SSD capacity (GB): 16
Ethernet connections: 1 x RJ-45
Ethernet data transfer: 1 x Gigabit-LAN
Betriebssystem: Android 6.0
operating temperatur min.: 0°C
operating temperatur max.: 50°C
warranty: 6 Monate / 6 months
