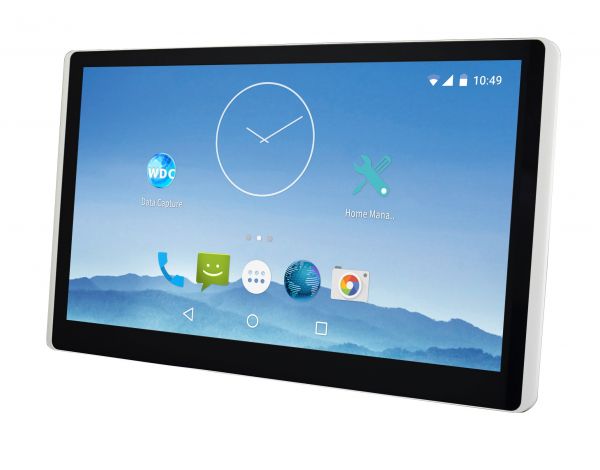

W15RK3S-PTA3
Panel-PC
Multitouch Panel PC for professional use Industrial Panel PC in sturdy plastic housing Flat PCAP glass front without dirt-collecting edges (IP65 Front) Designed for industrial applications in continuous operation Easy installation with rear VESA mounting interface
01-Front-W15RK3S-PTA3 / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Order number:
23152360
gross price: €946.05
€795.00 *
gross price: €946.05
Prices plus VAT plus shipping costs
Ready to ship today,
Delivery time appr. 1-3 workdays
SPEZIFIKATIONEN
| Order number: | 23152360 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| series name: | PT-Serie |
| Manufacturer item number: | W15RK3S-PTA3 |
| mechanics: | Chassis (VESA-Mounting) |
| dimensions width: | 38,8 |
| dimensions height: | 23,3 |
| dimensions depth: | 4,0 |
| weight: | 1,6 |
| Material housing: | Kunststoff / plastic |
| Material Front : | Kunststoff / plastic |
| protection front: | IP65 |
| controls: | 2 Keys: Power, Reset |
| VESA-Mounting Interface: | VESA 75 x 75, 100 x 100, 200 x 100 mm |
| mounting: | Tragarm-, Standfuß-, Wandmontage / Suppo |
| cooling: | lüfterlos / fanless |
| Display-diagonal (inch): | 15,6 |
| aspect ratio: | 16:9 |
| resolution: | 1920 x 1080 |
| brightness: | 400 cd/m² |
| contrast: | 800:1 |
| Display-Technology: | LCD, LED Backlight |
| Touch-Screen or glass: | Projected Capactive / Multi-Touch |
| Touch Interface: | USB |
| Manufacturer controller: | P-CAP Touchcontroller |
| voltage input DC: | 12 V/DC |
| external power supply: | 12 V/DC, 100 - 240 V/AC, 4-pin |
| USB: | 1 x USB 3.0, 1 x USB 2.0, 1 x USB OTG |
| serial: | 1 x RS-232/422/485 |
| Audio: | 2 x Speaker |
| LAN: | 1x RJ45 - 10/100/1000 Mbps |
| CPU Typ: | Cortex |
| CPU Model: | A72 + A53 |
| CPU speed: | 2,0 GHz + 1,5 GHz |
| RAM size (MB): | 2048 |
| RAM Typ: | LPDDR3L |
| RAM speed: | 1600 |
| SSD design: | eMMC |
| SSD max. number: | 1 |
| SSD capacity (GB): | 16 |
| Ethernet connections: | 1 x RJ-45 |
| Ethernet data transfer: | 1 x Gigabit-LAN |
| Betriebssystem: | Android 7.1 |
| operating temperatur min.: | 0°C |
| operating temperatur max.: | 50°C |
| warranty: | 12 Monate / 12 months |
