EL1083-EC
Embedded PC, Industrial PC
Booksize Embedded PC for professional use Industrial computer in sturdy aluminium housing Designed for industrial applications in continuous operation Easy installation with mounting bars or DIN Rail kit Long-term availability

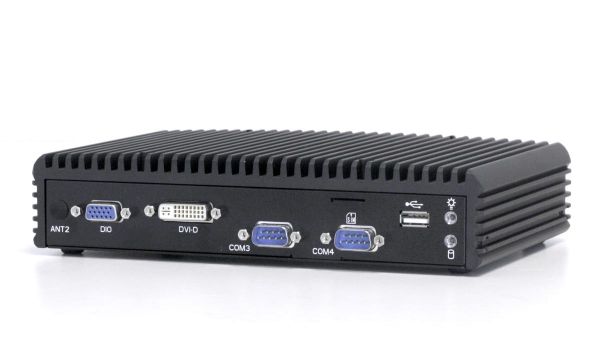

01-Front-EL1083EC / TL Produkt-Welten / Industrie-PC / Embedded-PC
03-Rear-Interfaces-EL1083EC / TL Produkt-Welten / Industrie-PC / Embedded-PC
Order number:
15000496
gross price: €648.55
€545.00 *
gross price: €648.55
Prices plus VAT plus shipping costs
Ready to ship today,
Delivery time appr. 1-3 workdays
SPEZIFIKATIONEN
| Order number: | 15000496 |
| Manufacturer: | PT |
| Matchcode manufacturer: | nein |
| Manufacturer: | Protech |
| series name: | EmbeddedLine |
| Manufacturer item number: | SE-8124 |
| mechanics: | Embedded-PC |
| dimensions width: | 217,5 |
| dimensions height: | 4,5 |
| dimensions depth: | 14,8 |
| weight: | 2,0 |
| Material housing: | Aluminium / aluminium |
| Material Front : | Aluminium / aluminum |
| protection front: | IP20 |
| protection device: | IP20 |
| colour: | schwarz / black |
| controls: | 2 Keys: Power, Reset, Status-LEDs |
| wall mounting: | Optional / optional |
| cooling: | lüfterlos / fanless |
| chipset: | Intel System on chip |
| CPU Typ : | Celeron |
| CPU Model : | J1900 |
| CPU 64bit : | Ja |
| CPU speed: | 2000 |
| CPU cores: | 4 |
| RAM size (MB): | 4096 |
| RAM max. size (MB): | 8192 |
| RAM Number of benches: | 1 |
| RAM Typ : | SO-DDR3L |
| Grafik Controller: | Intel HD Graphics Z3700 series |
| Ethernet Controller: | Intel WG I210IT |
| Audio Controller: | Realtek ALC888S HD Codec |
| Mini-PCIe-slot: | 1 |
| SSD design: | 2.5" |
| SSD max. number: | 1 |
| SSD capacity (GB): | 256 |
| RAID-System : | Nein / no |
| Display: | 1x DVI-D |
| USB : | 1 x USB 2.0 |
| Seriell : | 2 x RS-232 |
| Digitale I/O : | 1 x 4in / 4out |
| Display : | 1x DVI-I |
| USB : | 1 x USB 3.0, 2 x USB 2.0 |
| LAN : | 2x RJ45 - 10/100/1000 Mbps |
| Audio : | Line-Out, Mic-In |
| serial: | 2 x RS-232/422/485 |
| controls: | Power On/Off |
| voltage input DC: | 9-36 V/DC |
| power adapter: | Optional externes Netzteil 100 - 240 V/A |
| WLAN: | Optional / optional |
| operating-system support: | Windows 7 / 8.1 / 10 IoT |
| operating temperatur min.: | 0°C |
| operating temperatur min.: | 50°C |
| warranty: | 24 Monate / 24 months |
