SE-N207
Embedded PC, Industrial PC

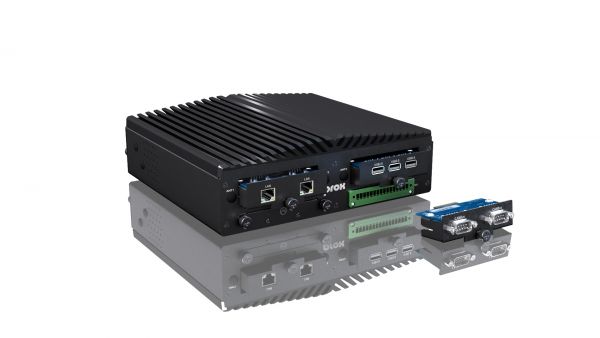

Booksize Embedded PC for professional use Industrial computer in sturdy aluminium housing Designed for industrial applications in continuous operation Easy installation with mounting bars or DIN Rail kit Long-term availability

01-Industrie-Embedded-PC-SE-N207.jpg / TL Produkt-Welten / Industrie-PC / Embedded-PC
01-Industrie-Embedded-PC-SE-N207.jpg / TL Produkt-Welten / Industrie-PC / Embedded-PC
01-Industrie-Embedded-PC-SE-N207-Front-2.jpg / TL Produkt-Welten / Industrie-PC / Embedded-PC
01-Industrie-Embedded-PC-SE-N207-Front-2.jpg / TL Produkt-Welten / Industrie-PC / Embedded-PC
02-Industrie-Embedded-PC-SE-N207-Rear.jpg / TL Produkt-Welten / Industrie-PC / Embedded-PC
02-Industrie-Embedded-PC-SE-N207-Rear.jpg / TL Produkt-Welten / Industrie-PC / Embedded-PC
02-Industrie-Embedded-PC-SE-N207-Rear-2.jpg / TL Produkt-Welten / Industrie-PC / Embedded-PC
02-Industrie-Embedded-PC-SE-N207-Rear-2.jpg / TL Produkt-Welten / Industrie-PC / Embedded-PC
03-Industrie-Embedded-PC-SE-N207.jpg / TL Produkt-Welten / Industrie-PC / Embedded-PC
03-Industrie-Embedded-PC-SE-N207.jpg / TL Produkt-Welten / Industrie-PC / Embedded-PC
04-Industrie-Embedded-PC-SE-N207.jpg / TL Produkt-Welten / Industrie-PC / Embedded-PC
04-Industrie-Embedded-PC-SE-N207.jpg / TL Produkt-Welten / Industrie-PC / Embedded-PC
05-Industrie-Embedded-PC-SE-N207.jpg / TL Produkt-Welten / Industrie-PC / Embedded-PC
05-Industrie-Embedded-PC-SE-N207.jpg / TL Produkt-Welten / Industrie-PC / Embedded-PC
Order number: 15000581
gross price: €0.00
Price on request

Prices plus VAT plus shipping costs

Delivery time: upon request

HIGHLIGHTS
  • EmbeddedLine Kompakt Industrie PC
  • optional bis zu 4x RJ45 - 10/100/1000 Mbps möglich
  • Langzeitverfügbarkeit
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 15000581
Manufacturer: PT
Matchcode manufacturer: nein
series name: EmbeddedLine
Manufacturer item number: SE-N207
mechanics: Embedded-PC
dimensions width: 22,8
dimensions height: 7,12
dimensions depth: 21,21
weight: 3,0
Material housing: Aluminium / aluminium
Material Front : Aluminium / aluminum
protection front: IP20
protection device: IP20
colour: schwarz / black
controls: 2 Keys: Power, Reset, Status-LEDs
wall mounting: Ja / yes
cooling: lüfterlos / fanless
chipset: Intel System on chip
CPU Typ : Core i3
CPU Model : 8145UE
CPU 64bit : Ja
CPU speed: 2,2 GHz
CPU cores: 2
CPU socket: FCBGA1528
RAM size (MB): 8192
RAM Number of benches: 2
RAM Typ : SO-DDR4
RAM speed: 2400
Grafik Controller: Intel HD Graphics 620
Mini-PCIe-slot: 1
SSD design: 2.5"
SSD max. number: 1
SSD capacity (GB): 256
SD Card Slot : Ja / yes
Display : 2x DisplayPort, 1x HDMI
USB : 4 x USB 3.1
LAN : 2x RJ45 - 10/100/1000 Mbps
Audio : Line-Out, Line-In, Mic in
serial: 2 x RS-232
voltage input DC: 9-36 V/DC
power adapter: Optional externes Netzteil 100 - 240 V/A
operating temperatur min.: 0°C
operating temperatur min.: 50°C
warranty: 24 Monate / 24 months
