R19IB7T-CHM1

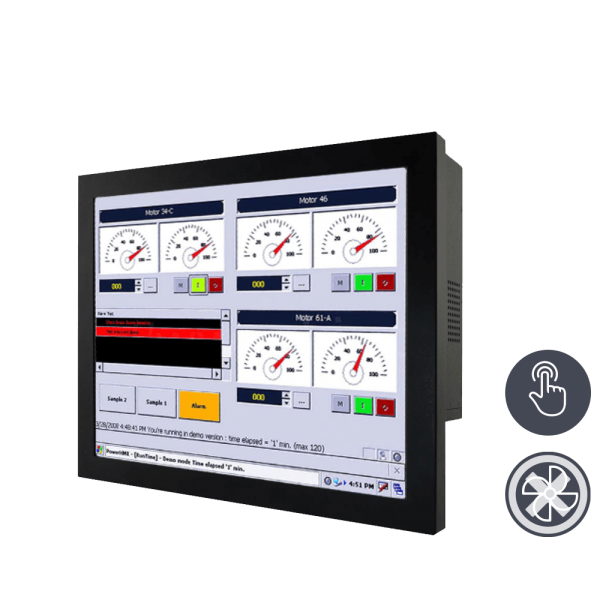

Touch-Screen for 1-Finger Operation, Panel-PC
Chassis Panel PC for professional use Industrial Panel PC in sturdy steel sheet housing Designed for industrial applications in continuous operation Easy installation with rear VESA mounting interface
01-Chassis-Industrie-Panel-PC-R19IB7T-CHM1-mT.png / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Touch-Screen für 1-Finger-Bedienung
Unfortunately, This product is currently out of stock!
Order number:
23191842
gross price: €1,184.05
€995.00 *
gross price: €1,184.05
Prices plus VAT plus shipping costs
Delivery time: upon request
SPEZIFIKATIONEN
| Order number: | 23191842 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| series name: | WM-Serie |
| Manufacturer item number: | R19IB7T-CHM1 |
| mechanics: | Chassis (VESA-Mounting) |
| dimensions width: | 43,2 |
| dimensions height: | 36,3 |
| dimensions depth: | 7,9 |
| weight: | 5,5 |
| Material housing: | Stahlblech / steel sheet |
| Material Front : | Stahlblech / steel sheet |
| protection front: | IP54 |
| protection device: | IP20 |
| colour: | schwarz / black |
| controls: | 2 Keys: Power, Reset |
| VESA-Mounting Interface: | VESA 75 x 75 mm, 100 x 100 mm |
| mounting: | Tragarm-, Standfuß-, Wandmontage / Suppo |
| cooling: | lüfterlos / fanless |
| Display-diagonal (inch): | 19,0 |
| aspect ratio: | 4:3 |
| resolution: | 1280 x 1024 |
| brightness: | 250 cd/m² |
| contrast: | 1000:1 |
| Display-Technology: | LCD, LED Backlight |
| Touch-Screen or glass: | Resistive Touch |
| Touch Interface: | USB |
| Manufacturer controller: | Premier |
| voltage input DC: | 12 V/DC |
| external power supply: | 12 V/DC, 100 - 240 V/AC, 4-pin |
| VGA: | 1 x 15-pin D-sub |
| USB: | 1 x USB 3.2 Gen1x1, 3 x USB 2.0 |
| serial: | 2 x RS-232, 1 x RS232/422/485 |
| Audio: | Line-Out, Line-In, Mic in |
| LAN: | 2x RJ45 - 10/100/1000 Mbps |
| PS/2: | 2x Mini-DIN |
| chipset: | Intel System on chip |
| CPU Typ: | Celeron |
| CPU Model: | N2930 |
| CPU 64bit: | Ja |
| CPU speed: | 1,83 GHz |
| CPU cores: | 4 |
| CPU socket: | FCBGA1170 |
| RAM size (MB): | 4096 |
| RAM Number of benches: | 2 |
| RAM Typ: | SO-DDR3L |
| RAM speed: | 1600 |
| Grafik Controller: | Intel HD Graphics Z3700 series |
| CPU class: | Atom / Celeron |
| Expansion slots: | 2 x mPCIe |
| SSD design: | mSATA |
| SSD max. number: | 1 |
| SSD capacity (GB): | 64 |
| Ethernet connections: | 2 x RJ-45 |
| Ethernet data transfer: | 2 x Gigabit-LAN |
| operating temperatur min.: | 0°C |
| operating temperatur max.: | 50°C |
| warranty: | 24 Monate / 24 months |
