W10IB3S-EHH2
Multitouch-Screen,
Projected-Capacitive (PCAP), Panel-PC
Projected-Capacitive (PCAP), Panel-PC
Multitouch Panel PC for professional use Industrial Panel PC in sturdy steel sheet design Robust aluminium front panel (IP65 protected) Flat PCAP glass front without dirt-collecting edges Designed for industrial applications in continuous operation Panelmount installation with rear holding clamps or female screw threads Long-term availability

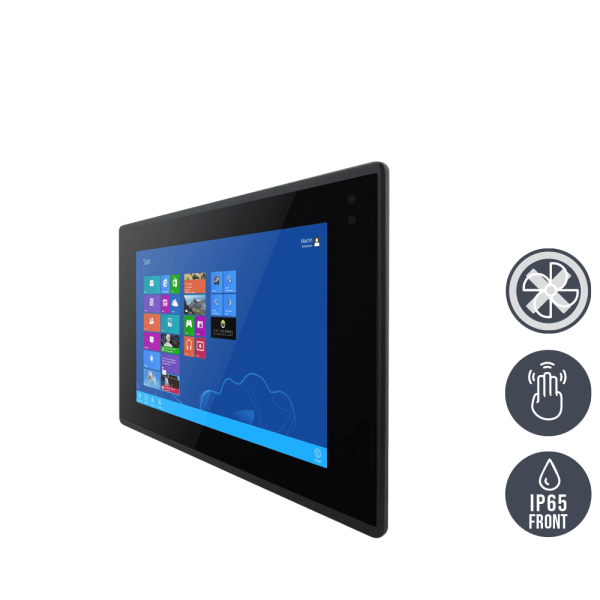

01-HMI-Panel-PC-Multi-Touch-W10IB3S-EHH2.png / TL Produkt-Welten / Panel-PC / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Unfortunately, This product is currently out of stock!
Order number:
23100514
gross price: €1,059.10
€890.00 *
gross price: €1,059.10
Prices plus VAT plus shipping costs
Delivery time: upon request
SPEZIFIKATIONEN
| Order number: | 23100514 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| series name: | E-Serie HMI |
| Manufacturer item number: | W10IB3S-EHH2 |
| mechanics: | Panel Mount |
| dimensions width: | 26,7 |
| dimensions height: | 18,2 |
| dimensions depth: | 5,65 |
| weight: | 1,7 |
| Material housing: | Stahlblech / steel sheet |
| Material Front : | Aluminium / aluminum |
| protection front: | IP65 |
| protection device: | IP20 |
| colour: | schwarz / black |
| controls: | 2 Keys: Power, Reset |
| VESA-Mounting Interface: | Nein / no |
| mounting: | Einbau von vorne / front installation |
| cooling: | lüfterlos / fanless |
| Display-diagonal (inch): | 10,1 |
| aspect ratio: | 16:10 |
| resolution: | 1280 x 800 |
| brightness: | 350 cd/m² |
| contrast: | 800:1 |
| Display-Technology: | LCD, LED Backlight |
| Touch-Screen or glass: | Projected Capactive / Multi-Touch |
| Touch Interface: | USB |
| Manufacturer controller: | P-CAP Touchcontroller |
| voltage input DC: | 12 V/DC |
| external power supply: | 12 V/DC, 100 - 240 V/AC, 4-pin |
| input: | 19 Watt |
| HDMI: | 1 x HDMI 1.4 (optional) |
| USB: | 1 x USB 3.2 Gen1x1, 1 x USB 2.0 |
| serial: | 1 x RS-232 |
| LAN: | 2x RJ45 - 10/100/1000 Mbps |
| Mainboard form factor: | 3,5" |
| chipset: | Intel System on chip |
| CPU Typ: | Celeron Bay Trail-M |
| CPU Model: | N2930 |
| CPU 64bit: | Ja |
| CPU speed: | 1,83 GHz |
| CPU cores: | 4 |
| CPU socket: | FCBGA1170 |
| RAM size (MB): | 4096 |
| RAM max. size (MB): | 8192 |
| RAM Number of benches: | 2 |
| RAM Typ: | SO-DDR3L |
| RAM speed: | 1600 |
| Grafik Controller: | Intel HD Graphics Engine |
| Audio Controller: | Realtek ALC886 HD Codec |
| safety: | TPM 2.0 |
| CPU class: | Atom / Celeron |
| SSD design: | mSATA |
| SSD max. number: | 1 |
| SSD capacity (GB): | 128 |
| Ethernet connections: | 2 x RJ-45 |
| Ethernet data transfer: | 1 x Gigabit-LAN |
| Ethernet Controller : | Intel I210-AT |
| MiniPCIe Slot WLAN/WWAN : | 1 |
| WLAN : | Optional / optional |
| Betriebssystem: | Optional |
| operating-system language version: | deutsch / english / italian |
| operating-system support: | Windows 7 / 8.1 / 10 IoT |
| operating temperatur min.: | -10°C |
| operating temperatur max.: | 50°C |
| warranty: | 24 Monate / 24 months |
