R08IWK8M-RTU1GP
Defense Computing

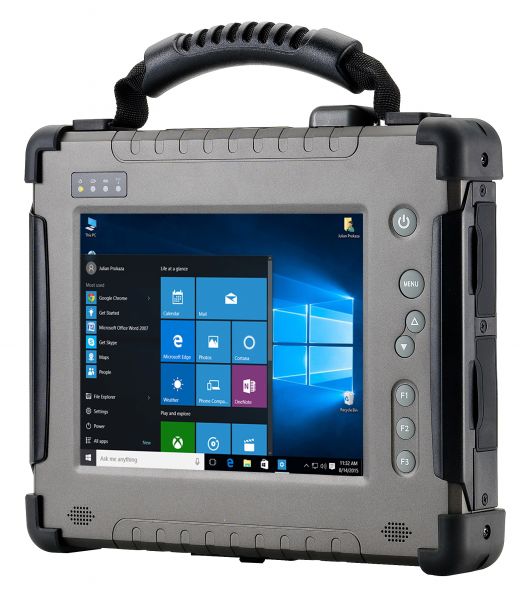

8.4" (800 x 600) Resolution Transflective TFT-LCD Panel 8th Gen. Intel® Core™ i5-8265U 1.6 GHz (turbo up to 3.9GHz) Ultra Rugged Tablet PC Plastic front cover and Alu-Mg Alloy rear cover with Protective Rubber Bulit-in Wireless / BT / GPS / 4G LTE (Optional) Trusted platform module (TPM) V2.0 Adjustable Kickstand that is Convertible to a handle Protection class IP54 all around incl. connectors Shock, vibration and drop protected (MIL-STD-810G)

01-Ultra-Rugged-Tablet-R08IWK8M-RTU1GP
01-Ultra-Rugged-Tablet-R08IWK8M-RTU1GP
02-Ultra-Rugged-Tablet-R08IWK8M-RTU1GP
02-Ultra-Rugged-Tablet-R08IWK8M-RTU1GP
03-Ultra-Rugged-Tablet-R08IWK8M-RTU1GP
03-Ultra-Rugged-Tablet-R08IWK8M-RTU1GP

Order number: 25080010
gross price: €0.00
Price on request

Prices plus VAT plus shipping costs

Delivery time: upon request

HIGHLIGHTS
  • Widerstandsfähige Alu-Mg-Gehäuse
  • Schutzkappen an den Ecken
  • Schutz gegen Staub und Wasser bis zu IP54
  • Schock-, Vibrations- und Sturz-Resistenz gemäß MIL-STD-810G
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 25080010
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: Ultra Rugged Tablet PC
Manufacturer item number: R08IWK8M-RTU1GP
mechanics: Ultra Rugged Tablet PC
dimensions width: 26,6
dimensions height: 22,4
dimensions depth: 5,04
weight: 2,4
Material housing: Magnesium Legierung / Magnesium alloy
protection device: IP54
colour: Schwarz / black, Grau / gray
cooling: lüfterlos / fanless
Display-diagonal (inch): 8,4
aspect ratio: 4:3
resolution: 800 x 600
brightness: 600 cd/m²
contrast: 600:1
Display-Technology: LCD, LED Backlight
Touch-Screen : Projected Capactive / Multi-Touch
CPU Typ: Core i5
CPU Model: 8265U
CPU speed: 1,6 GHz
CPU cores: 4
RAM size (MB): 4096
RAM max. Größe (MB: 32768
RAM Typ: SO-DDR4
RAM speed: 2400
SSD design: M.2
SSD capacity: 128
SSD number: 1
safety: TPM 2.0
WLAN: Ja / yes
Bluetooth: Ja / yes
WWAN: Optional / optional
Ethernet_connections: 1x RJ-45
Ethernet data transfer: 1 x Gigabit-LAN
Camera front: Optional / optional
Camera rear: Optional / optional
Barcode: Optional / optional
USB: 2x USB 3.2
serial: 1x RS-232
LAN: 1x RJ45 - 10/100 Mbps
Card Slot: 1x Micro SD Slot, 1x Micro SIM Slot
Audio: 1x Mic in/Line out, 2x Speaker
controls: 7 Keys: Power, 6x Function
operating temperatur min.: -10°C
operating temperatur max.: 50°C
Shock: MIL-STD-810G Method 516.6 Procedure I
Vibration: MIL-STD-810G Method 514.6 Procedure I
Drop: MIL-STD-810G Method 516.6, 4 ft
external power supply: 19 V/DC, 100 - 240 V/AC, DC plug
battery: 11.1V, 5200 mAh Li-ion Battery
