R10IP8M-RTT2ML
Defense Computing

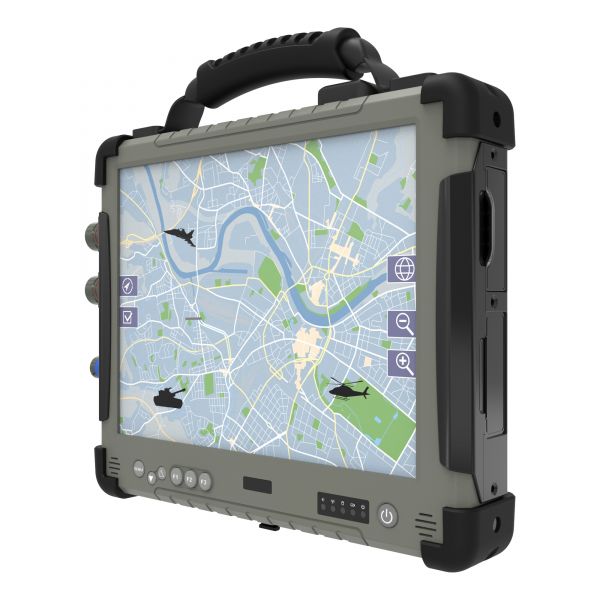

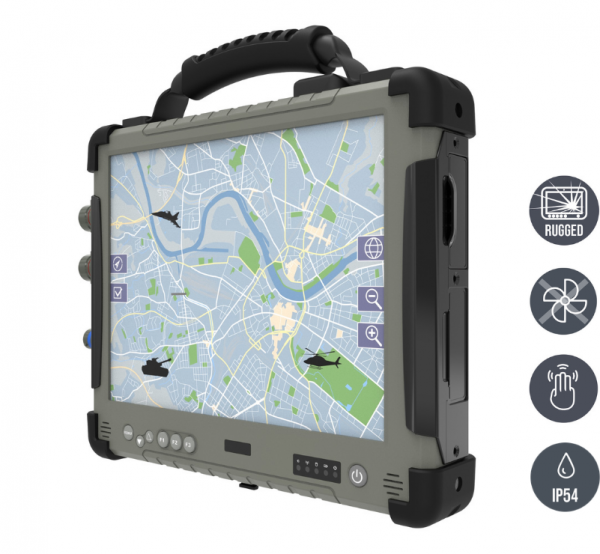

10.4" (1024 x 768) Resolution Transflective TFT-LCD Panel Intel® Pentium® N4200 Defence Ultra Rugged Tablet Ruggedized tablet in sturdy Magnbesium Alloy housing with all-around elastomeric rubber MIL-STD-38999 connector for LAN/USB2.0, RS232/RS422 and DC Power Input Adjustable Kickstand that is Convertible to a handle Protection class IP54 all around incl. connectors Shock, vibration and drop protected (MIL-STD-810G)

01-Ultra-Rugged-Tablet-R10IP8M-RTT2ML
01-Ultra-Rugged-Tablet-R10IP8M-RTT2ML
02-Ultra-Rugged-Tablet-R10IP8M-RTT2ML
02-Ultra-Rugged-Tablet-R10IP8M-RTT2ML
03-Ultra-Rugged-Tablet-R10IP8M-RTT2ML
03-Ultra-Rugged-Tablet-R10IP8M-RTT2ML
04-Ultra-Rugged-Tablet-R10IP8M-RTT2ML
04-Ultra-Rugged-Tablet-R10IP8M-RTT2ML
Order number: 25100072
gross price: €0.00
Price on request

Prices plus VAT plus shipping costs

Delivery time: upon request

HIGHLIGHTS
  • Widerstandsfähige Alu-Mg-Gehäuse
  • Schutzkappen an den Ecken
  • Schutz gegen Staub und Wasser bis zu IP54
  • Schock-, Vibrations- und Sturz-Resistenz gemäß MIL-STD-810G
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 25100072
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: Ultra Rugged Tablet PC
Manufacturer item number: R10IP8M-RTT2ML
mechanics: Ultra Rugged Tablet PC
dimensions width: 26,6
dimensions height: 22,2
dimensions depth: 5,0
weight: 2,4
Material housing: Magnesium Legierung / Magnesium alloy
protection device: IP54
colour: Schwarz / black, Grau / gray
cooling: lüfterlos / fanless
Display-diagonal (inch): 10,4
aspect ratio: 4:3
resolution: 1024 x 768
brightness: 1000 cd/m²
contrast: 700:1
Display-Technology: LCD, LED Backlight
Touch-Screen : Projected Capactive / Multi-Touch
CPU Typ: Pentium
CPU Model: N4200
CPU speed: 1,1 GHz
CPU cores: 4
RAM size (MB): 4096
RAM max. Größe (MB: 8192
RAM Typ: SO-DDR3L
RAM speed: 1866
SSD design: M.2
SSD capacity: 64
SSD number: 1
safety: TPM 2.0
WLAN: Ja / yes
WLAN-Standard: IEEE 802.11 a/b/g/n/ac
Bluetooth: Ja / yes
WWAN: Optional / optional
Ethernet_connections: 1x RJ-45
Ethernet data transfer: 1 x Gigabit-LAN
Camera front: Optional / optional
Camera rear: Optional / optional
USB: 2x USB 3.0, 1x USB 2.0
serial: 1x RS-232/422
LAN: 1x RJ45 - 10/100 Mbps
Card Slot: 1x SIM Slot
Audio: 2 x 1 watt speaker
Power: 1x 9-36 V/DC, DC plug
controls: 7 Keys: Power, 6x Function
operating system: Windows 10 IoT Enterprise
operating temperatur min.: -10°C
operating temperatur max.: 50°C
Shock: MIL-STD-810G Method 516.6 Procedure I
Vibration: MIL-STD-810G Method 514.6 Procedure I
Drop: MIL-STD-810G Method 516.6, 4 ft
voltage input DC: 9-36 V/DC
external power supply: 19 V/DC, 100 - 240 V/AC, DC plug
battery: 11.1V, 5200 mAh Li-ion Battery
