Defense Computing

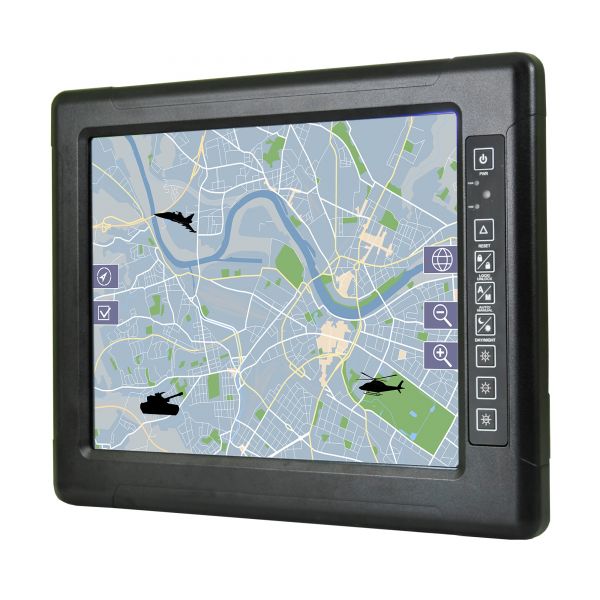

15" (1024 x 768) Defence Panel PC Ultra Low Power but High Performance Intel® Bay Trail N2930 1.83 GHz Full IP65 Dust/water resistant Protection (Except I/O parts) Compliant with MIL-STD 461E/F and MIL-STD 810F/G Resistive Touchscreen / Anti-Reflection Protection Glass (Optional) Aluminum Housing with Anti-Corrosion Treatments 12V DC (MIL-DTL-38999/1 connector) 9V to 36V wide range (Optional) VESA Mount

Order number: 23152542
gross price: €0.00
Price on request

Prices plus VAT plus shipping costs

Delivery time: upon request

  • robustes Stahlblech-Chassis
  • VESA-Montageschnittstelle
  • Schutzglas / protective glass
  • Langzeitverfügbarkeit
Download PDF datasheet

Order number: 23152542
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: G-WIN-Serie
Manufacturer item number: R15IB3S-MLA3HB
mechanics: Chassis (VESA-Mounting)
dimensions width: 39,8
dimensions height: 30,8
dimensions depth: 5,8
Material housing: Stahlblech / steel sheet
Material Front : Aluminium / aluminum
protection front: IP65
protection device: IP65
colour: schwarz / black
VESA-Mounting Interface: VESA 100 x 100 mm
mounting: Tragarm-, Standfuß-, Wandmontage / Suppo
cooling: lüfterlos / fanless
Display-diagonal (inch): 15,0
aspect ratio: 4:3
resolution: 1024 x 768
brightness: 1000 cd/m²
contrast: 2500:1
Display-Technology: LCD, LED Backlight
Touch-Screen or glass: Schutzglas / protective glass
voltage input DC: 12 V/DC
external power supply: 12 V/DC, 100 - 240 V/AC, 4-pin
HDMI: 1 x HDMI (optional)
USB: 1 x USB 2.0, 1 x USB 3.0
serial: 1 x RS-232
LAN: 2x RJ45 - 10/100/1000 Mbps
CPU Typ: Celeron
CPU Model: N2930
CPU 64bit: Ja
CPU speed: 1,83GHz
CPU cores: 4
CPU socket: FCBGA1170
RAM size (MB): 4096
RAM max. size (MB): 8192
RAM Number of benches: 1
RAM speed: 1600
Grafik Controller: Intel HD Graphics Z3700 series
CPU class: Atom / Celeron
SSD design: mSATA
SSD max. number: 1
SSD capacity (GB): 128
Ethernet connections: 2 x RJ-45
Ethernet data transfer: 2 x Gigabit-LAN
WLAN : Optional / optional
Bluetooth : optional / optional
Betriebssystem: Optional
operating temperatur min.: -20°C
operating temperatur max.: 60°C
warranty: 24 Monate / 24 months
