R19IT3S-MLA3FP
Defense Computing

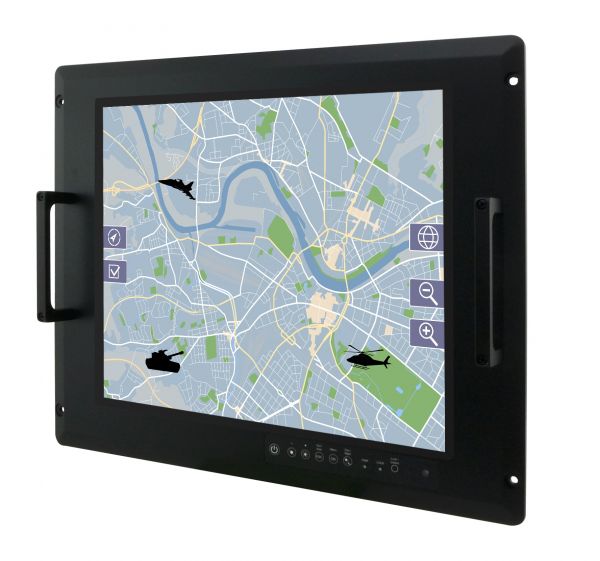

19" (1280x 1024) Defence Panel PC Full IP65 Dust/water resistant Protection (Except I/O parts) Compliant with MIL-STD 461E/F and MIL-STD 810F/G PCAP Multi Touchscreen Aluminum Housing with Anti-Corrosion Treatments 12V DC (MIL-DTL-38999/1 connector) 9V to 36V wide range (Optional) VESA Mount
Order number:
23191906
gross price: €0.00
Price on request
gross price: €0.00
Prices plus VAT plus shipping costs
Delivery time: upon request
SPEZIFIKATIONEN
| Order number: | 23191906 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| Manufacturer item number: | R19IT3S-MLA3FP |
| dimensions width: | 48,26 |
| dimensions height: | 39,93 |
| dimensions depth: | 7,96 |
| Material housing: | Stahlblech / steel sheet |
| Material Front : | Aluminium / aluminum |
| colour: | schwarz / black |
| controls: | 8 Keys: Power, 7x Function |
| VESA-Mounting Interface: | VESA 100 x 100 mm |
| mounting: | Einbau von vorne / front installation |
| cooling: | lüfterlos / fanless |
| Display-diagonal (inch): | 19,0 |
| aspect ratio: | 4:3 |
| resolution: | 1280 x 1024 |
| brightness: | 350 cd/m² |
| contrast: | 1000:1 |
| Display-Technology: | LCD, LED Backlight |
| Touch-Screen or glass: | Projected Capactive / Multi-Touch |
| Touch Interface: | USB |
| Manufacturer controller: | P-CAP Touchcontroller |
| voltage input DC: | 9-36 V/DC |
| external power supply: | 12 V/DC, 100 - 240 V/AC, 4-pin |
| HDMI: | 1 x HDMI (optional) |
| USB: | 2 x USB 3.2 Gen.1 |
| serial: | 1 x RS-232 |
| LAN: | 2x RJ45 - 10/100/1000 Mbps |
| CPU Typ: | Core i5 |
| CPU Model: | 1135G7 |
| CPU 64bit: | Ja |
| CPU speed: | 2,4 GHz |
| CPU cores: | 4 |
| CPU socket: | FCBGA1449 |
| RAM size (MB): | 4096 |
| RAM max. size (MB): | 32768 |
| RAM Number of benches: | 1 |
| RAM Typ: | SO-DDR4 |
| RAM speed: | 3200 |
| Grafik Controller: | Intel Iris Xe Graphics |
| safety: | TPM 2.0 |
| SSD design: | M.2 |
| SSD max. number: | 1 |
| SSD capacity (GB): | 128 |
| Ethernet connections: | 2 x RJ-45 |
| Ethernet data transfer: | 2 x Gigabit-LAN |
| WLAN : | Optional / optional |
| Bluetooth : | optional / optional |
| Betriebssystem: | Optional |
| operating temperatur min.: | -20°C |
| operating temperatur max.: | 60°C |
| warranty: | 24 Monate / 24 months |
