EACIL20
Embedded PC, Industrial PC

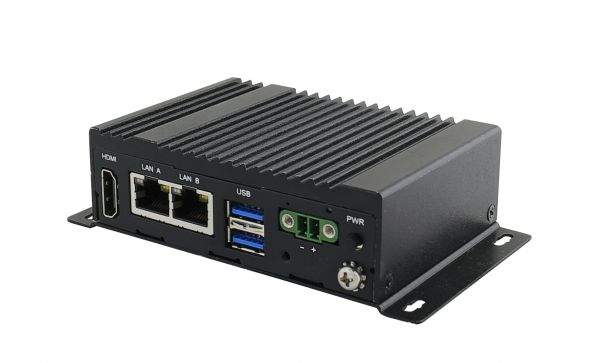

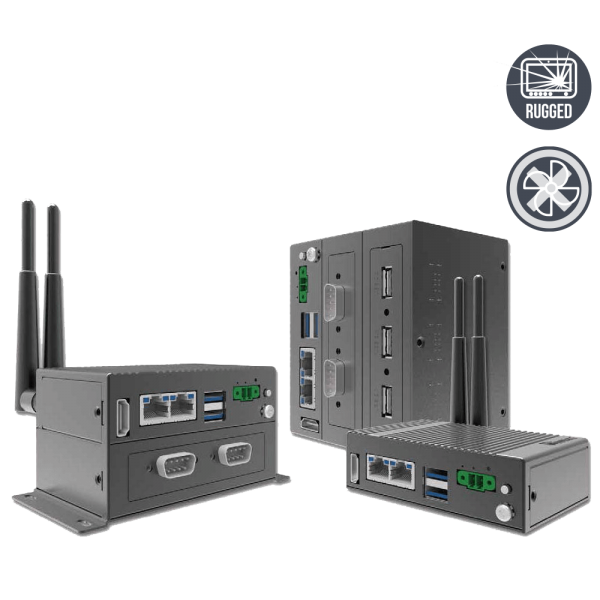

Embedded Industrial PC for Smart Factory & Industry 4.0 Mini Industrial computer in sturdy steel sheet housing Modular layout in 1 / 2 layers Expansion modules for interfaces and external antennas Shock and vibration resistant Designed for industrial applications in continuous operation Versatile mounting options: table and wall mount with integrated mounting bars, with DIN rail adapter or with VESA mounting plate Long-term availability

01-Industrial-Embedded-PC-IoT-Gateway-EACIL20.png / TL Produkt-Welten / Industrie-PC / Embedded-PC
01-Industrial-Embedded-PC-IoT-Gateway-EACIL20.png / TL Produkt-Welten / Industrie-PC / Embedded-PC
06-Industrial-Embedded-PC-IoT-Interfaces-EACIL20-1 / TL Produkt-Welten / Industrie-PC / Embedded-PC
06-Industrial-Embedded-PC-IoT-Interfaces-EACIL20-1 / TL Produkt-Welten / Industrie-PC / Embedded-PC
02-Industrial-IoT-Gateway-Applications-EACIL20 / TL Produkt-Welten / Industrie-PC / Embedded-PC
02-Industrial-IoT-Gateway-Applications-EACIL20 / TL Produkt-Welten / Industrie-PC / Embedded-PC
03-Industrial-IoT-Gateway-Mounting-Din-Rail-VESA-EACIL20 / TL Produkt-Welten / Industrie-PC / Embedded-PC
03-Industrial-IoT-Gateway-Mounting-Din-Rail-VESA-EACIL20 / TL Produkt-Welten / Industrie-PC / Embedded-PC
04-Industrial-Embedded-PC-IoT-Gateway-Expansions-EACIL20 / TL Produkt-Welten / Industrie-PC / Embedded-PC
04-Industrial-Embedded-PC-IoT-Gateway-Expansions-EACIL20 / TL Produkt-Welten / Industrie-PC / Embedded-PC
05-Industrial-Embedded-PC-IoT-Interfaces-EACIL20-2 / TL Produkt-Welten / Industrie-PC / Embedded-PC
05-Industrial-Embedded-PC-IoT-Interfaces-EACIL20-2 / TL Produkt-Welten / Industrie-PC / Embedded-PC
Order number: 15000515
gross price: €565.25
€475.00 *

Prices plus VAT plus shipping costs

Delivery time: upon request

HIGHLIGHTS
  • EmbeddedLine Kompakt Industrie PC
  • incl. Windows 10 IoT
  • Langzeitverfügbarkeit
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 15000515
Manufacturer: WM
Matchcode manufacturer: Ja
Manufacturer: Winmate
series name: EmbeddedLine
Manufacturer item number: EACIL20
mechanics: Embedded-PC
dimensions width: 10
dimensions height: 7,0
dimensions depth: 3,1
weight: 0,4
Material housing: Stahlblech / steel sheet
Material Front : Stahlblech / steel sheet
protection front: IP30
protection device: IP30
colour: schwarz / black
controls: 2 Keys: Power, Reset
VESA-Mounting Interface: Optional / optional
wall mounting: Ja / yes
cooling: lüfterlos / fanless
DIN-Rail: Optional / optional
chipset: Intel System on chip
CPU Typ : Celeron
CPU Model : N3350
CPU 64bit : Ja
CPU speed: 1100
CPU cores: 2
RAM size (MB): 4096
RAM max. size (MB): 4096
RAM Number of benches: 1
RAM Typ : LPDDR3
RAM speed: 1866
Grafik Controller: Intel HD Graphics 500
Ethernet Controller: Intel I210-AT
Mini-PCIe-slot: 1
SSD design: mSATA
SSD max. number: 1
SSD capacity (GB): 64
Display : 1x HDMI
USB : 2 x USB 3.0
LAN : 2x RJ45 - 10/100/1000 Mbps
voltage input DC: 9-36 V/DC
power adapter: Optional externes Netzteil 100 - 240 V/A
WLAN: Optional / optional
operating-system support: Windows 10 IoT inclusive
operating temperatur min.: 0°C
operating temperatur min.: 55°C
warranty: 24 Monate / 24 months
