EmbeddedLine EL1092-Q
Embedded PC

Booksize Industrial PC for professional use Industrial computer in sturdy aluminium housing 2 x drive bays, RAID option Designed for industrial applications in continuous operation Easy installation with mounting bars Long-term availability

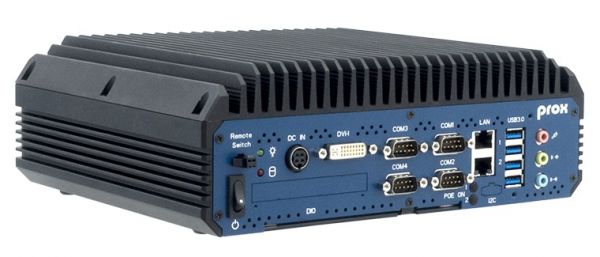

01-Front-left-EL1092 / TL Produkt-Welten / Industrie-PC / Embedded-PC
01-Front-left-EL1092 / TL Produkt-Welten / Industrie-PC / Embedded-PC
02-Front-EL1092 / TL Produkt-Welten / Industrie-PC / Embedded-PC
02-Front-EL1092 / TL Produkt-Welten / Industrie-PC / Embedded-PC
03-Rear-EL1092  / TL Produkt-Welten / Industrie-PC / Embedded-PC
03-Rear-EL1092 / TL Produkt-Welten / Industrie-PC / Embedded-PC
SE-8400E-2-Varianten / TL Produkt-Welten / Industrie-PC / Embedded-PC
SE-8400E-2-Varianten / TL Produkt-Welten / Industrie-PC / Embedded-PC
SE-8400E-3-Front-left / TL Produkt-Welten / Industrie-PC / Embedded-PC
SE-8400E-3-Front-left / TL Produkt-Welten / Industrie-PC / Embedded-PC
SE-8400E-4-Slots / TL Produkt-Welten / Industrie-PC / Embedded-PC
SE-8400E-4-Slots / TL Produkt-Welten / Industrie-PC / Embedded-PC
Order number: 15100431
gross price: €0.00
Price on request

Prices plus VAT plus shipping costs

Delivery time: upon request

HIGHLIGHTS
  • EmbeddedLine Kompakt Industrie PC
  • Atom™ bis Core™-i Embedded Systeme
  • bis zu 4 Erweiterungs-Steckplätze
  • Langzeitverfügbarkeit
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 15100431
Manufacturer: PT
Matchcode manufacturer: nein
Manufacturer: Protech
series name: EmbeddedLine
mechanics: Embedded-PC
dimensions width: 26,0
dimensions height: 8,0
dimensions depth: 20,0
weight: 4,9
Material housing: Aluminium / aluminium
Material Front : Aluminium / aluminum
protection front: IP20
protection device: IP20
colour: Gehäuse schwarz / Front blau
controls: 2 Keys: Power, Reset, Status-LEDs
wall mounting: Optional / optional
cooling: lüfterlos / fanless
chipset: Intel Q170
CPU Typ : Core i3
CPU Model : 7100T
CPU 64bit : Ja
CPU speed: 3400
CPU cores: 2
CPU socket: LGA1151, H4
CPU alternative option 1: Core i5-7xxx
CPU alternative option 2: Core i7-7xxx
CPU alternative option 3: Core i5-6xxx
RAM size (MB): 8192
RAM max. size (MB): 32768
RAM Number of benches: 2
RAM Typ : DDR4
RAM speed: 2133
PCI Express x4 : optional
Grafik Controller: Intel HD Graphics 630
Ethernet Controller: Intel PHY219-LM + 210-AT
connections SATA: 2
USB internal connections: 4x USB 2.0, 2x USB 3.0
Connections Serial internal: 4x RS-232
Mini-PCIe-slot: 1
SSD design: 2.5"
SSD max. number: 2
SSD capacity (GB): 120
RAID-System : Ja / yes
Display: 1x HDMI
USB : 2 x USB 3.0
Seriell : 2 x RS-232
SIM Card Slot : Ja / yes
Cfast Card Slot : Ja / yes
Display : 1x DVI-I
USB : 4 x USB 3.0
LAN : 2x RJ45 - 10/100/1000 Mbps
Audio : Line-Out, Line-In, Mic in
serial: 2 x RS-232, 2 x RS232/422/485
controls: Power On/Off
voltage input DC: 9-36 V/DC
power adapter: Optional externes Netzteil 100 - 240 V/A
WLAN: Optional / optional
operating-system support: Windows 7 / 8.1 / 10 IoT
operating temperatur min.: -10°C
operating temperatur min.: 50°C
warranty: 24 Monate / 24 months
