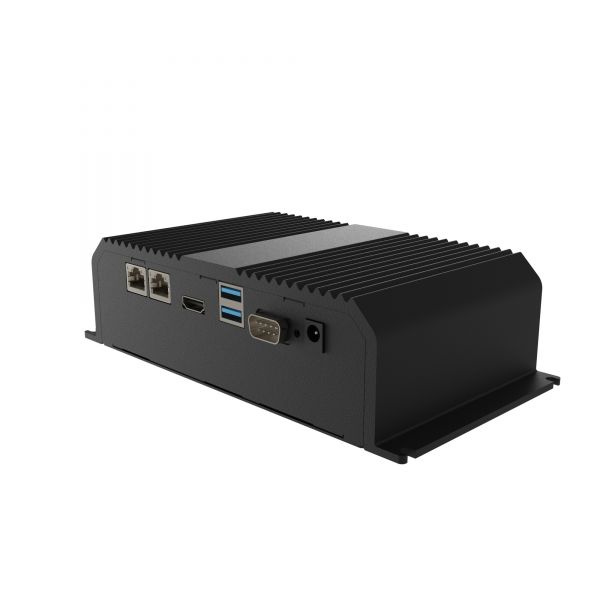

IE32SB3101
Embedded PC
HOUSING: - Robust aluminum housing made of extruded profiles incl. mounting bracket - Dimensions: (WxHxD) 205 x 110 x 55 mm - Housing color: black - Supply voltage: 12 V/DC incl. power supply unit with 100-240 V/AC PC: - Mainboard with socket 1493 - Interfaces: 1x RS-232 interface (optional: RS-422/485 and 1-2 additional RS-232), 2x USB 3.2 Gen2x1 (Type A), 1x HDMI 2.0, audio on board, power button. CONFIGURATION: - CPU: Intel Celeron N6211, 2x 3.0 GHz (Elkhart Lake) - RAM: 4 GB DDR4 SO-DIMM (max. 16 GB) - SSD: 128 GB, M.2 2242 (max. 512 GB) - Graphics: 1x HDMI - LAN: 2 x 2.5 Giga LAN RJ45 (Intel i225) - Audio: on board, 1x 12-pin line-in, 1x line-out, 1x mic-in. QUALITY / TESTS: - EMC-compliant design, CE-compliant - Operating temperature: 0° - 55° C - Continuously tested for up to 24 hours Country of origin: Taiwan
gross price: €0.00
Prices plus VAT plus shipping costs
Delivery time: upon request
| Order number: | 15000606 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| series name: | EmbeddedLine |
| Manufacturer item number: | IE32SB3-101 |
| mechanics: | Embedded-PC |
| dimensions width: | 20,5 |
| dimensions height: | 5,5 |
| dimensions depth: | 11,0 |
| Material housing: | Aluminium / aluminium |
| colour: | schwarz / black |
| controls: | 1 Key: Power On/Off |
| cooling: | lüfterlos / fanless |
| CPU Typ : | Celeron |
| CPU Model : | N6211 |
| CPU 64bit : | Ja |
| CPU speed: | 1,2GHz |
| CPU cores: | 2 |
| CPU socket: | FCBGA1493 |
| RAM size (MB): | 4096 |
| RAM max. size (MB): | 16384 |
| RAM Number of benches: | 1 |
| RAM Typ : | SO-DDR4 |
| RAM speed: | 3200 |
| Grafik Controller: | Intel UHD Gen 10 Graphics |
| Ethernet Controller: | Intel I225 |
| safety: | TPM 2.0 |
| SSD design: | M.2 |
| SSD max. number: | 1 |
| SSD capacity (GB): | 128 |
| Display: | 1x HDMI 2.0 (optional) |
| USB : | 2 x USB 3.2 Gen2x1 (Type-A) |
| LAN: | 2x RJ45 - 10/100/1000 Mbps |
| Audio : | on board |
| Seriell : | 1 x RS 232, 1-2 x RS232 (optional) |
| voltage input DC: | 12 V/DC |
| power adapter: | 100 - 240 V/AC, 4-pin, extern |
| operating-system support: | Windows 10 / 11 |
| operating temperatur min.: | 0°C |
| operating temperatur min.: | 55°C |
| warranty: | 24 Monate / 24 months |
