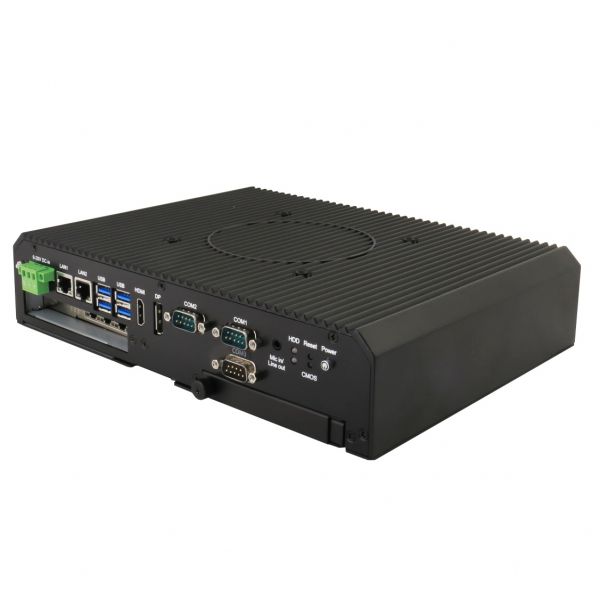

ITMH100-6L
Embedded PC

ITMH100-6L M Series Box PC Intel® Tiger Lake UP3 Core™ i5-1135G7 Support 6x Giga LAN Multi Video Output, Hdmi/Diplay Port Support wide range 9-29 V DC input Quick & Easy Replaceable Hard Disk Design, No Tools required VESA Mount

01-Industrie-Embedded-PC-ITMH100-6L.jpg / TL Produkt-Welten / Industrie-PC / Embedded-PC
01-Industrie-Embedded-PC-ITMH100-6L.jpg / TL Produkt-Welten / Industrie-PC / Embedded-PC
02-Industrie-Embedded-PC-ITMH100-6L.jpg / TL Produkt-Welten / Industrie-PC / Embedded-PC
02-Industrie-Embedded-PC-ITMH100-6L.jpg / TL Produkt-Welten / Industrie-PC / Embedded-PC
03-Industrie-Embedded-PC-ITMH100-6L.jpg / TL Produkt-Welten / Industrie-PC / Embedded-PC
03-Industrie-Embedded-PC-ITMH100-6L.jpg / TL Produkt-Welten / Industrie-PC / Embedded-PC

Order number: 15100552
gross price: €0.00
Price on request

Prices plus VAT plus shipping costs

Delivery time: upon request

HIGHLIGHTS
  • EmbeddedLine Kompakt Industrie PC
  • 1 x Erweiterungssteckplatz
  • 1 x Laufwerksschacht werkzeuglos von vorne zugänglich
  • Langzeitverfügbarkeit
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 15100552
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: EmbeddedLine
Manufacturer item number: ITMH100-6L
mechanics: Embedded-PC
dimensions width: 27,6
dimensions height: 6,0
dimensions depth: 20,7
Material housing: Aluminium / aluminium
Material Front : Aluminium / aluminum
protection front: IP20
protection device: IP20
colour: schwarz / black
controls: 2 Keys: Power, Reset, Status-LEDs
VESA-Mounting Interface: VESA 100 x 100 mm
wall mounting: Ja / yes
cooling: lüfterlos / fanless
chipset: Intel System on chip
CPU Typ : Core i5
CPU Model : 1135G7
CPU 64bit : Ja
CPU speed: 2,4GHz
CPU cores: 4
CPU socket: FCBGA1449
RAM size (MB): 8192
RAM max. size (MB): 32768
RAM Number of benches: 2
RAM Typ : SO-DDR4
RAM speed: 3200
Grafik Controller: Intel Iris Xe Graphics
Ethernet Controller: Intel I211-AT + I219-LM
safety: TPM 2.0
SSD design: M.2
SSD max. number: 1
SSD capacity (GB): 128
Display: 1x DP 1.4, 1x HDMI 2.0 (optional)
USB : 4 x USB 3.2 Gen.1 (Type-A)
LAN: 6x RJ45 - 10/100/1000 Mbps
Audio : Line-Out, Mic-In
Seriell : 2 x RS-232
voltage input DC: 9-29 V/DC
power adapter: 100 - 240 V/AC, 4-pin, extern
operating-system support: Optional / optional
operating temperatur min.: 0°C
operating temperatur min.: 50°C
warranty: 24 Monate / 24 months
