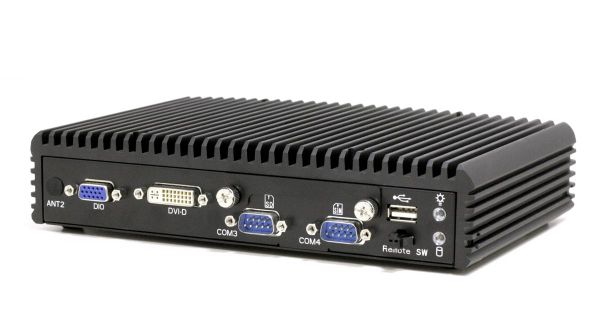

SE-8124
Embedded PC
Booksize Embedded PC for professional use Industrial computer in sturdy aluminium housing Designed for industrial applications in continuous operation Easy installation with mounting bars or DIN Rail kit Long-term availability
gross price: €0.00
Prices plus VAT plus shipping costs
Delivery time: upon request
Order number: | 15000486 |
Manufacturer: | PT |
Matchcode manufacturer: | nein |
Manufacturer: | Protech |
series name: | EmbeddedLine |
Manufacturer item number: | SE-8124 |
mechanics: | Embedded-PC |
dimensions width: | 21,7 |
dimensions height: | 4,5 |
dimensions depth: | 14,8 |
weight: | 2,0 |
Material housing: | Aluminium und Stahlblech / aluminium and steel sheet |
Material Front : | Stahlblech / steel sheet |
protection front: | IP20 |
protection device: | IP20 |
colour: | schwarz / black |
controls: | 2 Keys: Power, Reset, Status-LEDs |
VESA-Mounting Interface: | Nein / no |
wall mounting: | Optional / optional |
DIN-Rail: | Optional / optional |
cooling: | lüfterlos / fanless |
chipset: | Intel System on chip |
CPU Typ : | Celeron Bay Trail-M |
CPU Model : | J1900 |
CPU 64bit : | Ja |
CPU speed: | 2000 |
CPU cores: | 4 |
RAM size (MB): | 4096 |
RAM max. size (MB): | 8192 |
RAM Number of benches: | 1 |
RAM Typ : | SO-DDR3L |
RAM speed: | 1600 |
Grafik Controller: | Intel HD Graphics Z3700 series |
Ethernet Controller: | Intel I210IT |
Audio Controller: | Realtek ALC888S HD Codec |
connections SATA: | 1 |
Mini-PCIe-slot: | 2 |
HDD design: | 2.5" |
HDD max. number: | 1 |
HDD connection: | SATA |
HDD capacity (GB): | 500 |
MiniPCIe Slot SSD : | 1 |
RAID-System : | Nein / no |
alternate Caddies: | Nein / no |
CD/DVD-Writer : | Nein / no |
Display: | 1x DVI-D |
USB : | 1 x USB 2.0 |
Seriell : | 2 x RS-232 |
SD Card Slot : | Ja / yes |
Digitale I/O : | 1 x 4in / 4out |
controls: | Kontroll-LEDs |
Display : | 1x DVI-I |
USB : | 1 x USB 3.0, 1 x USB 2.0 |
LAN : | 2x RJ45 - 10/100/1000 Mbps |
Audio : | Line-Out, Line-In, Mic in |
serial: | 2 x RS232/422/485 |
controls: | Power On/Off, Reset |
voltage input DC: | 9-36 V/DC |
power adapter: | Optional externes Netzteil 100 - 240 V/AC |
WLAN: | Optional / optional |
GSM : | Optional / optional |
GPS : | Optional / optional |
operating-system support: | Windows 7 / 8.1 / 10 IoT |
operating temperatur min.: | 0°C |
operating temperatur min.: | 45°C |
warranty: | 24 Monate / 24 months |
