SE-8400
Embedded PC
Booksize Industrial PC for professional use Industrial computer in sturdy aluminium housing 2 x drive bays, RAID option Designed for industrial applications in continuous operation Easy installation with mounting bars Long-term availability

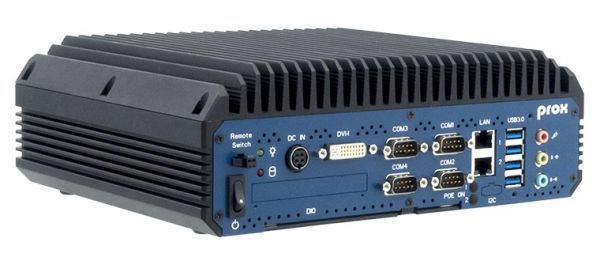

03-Embedded-Industrie-PC-Front-SE-8400.jpg / TL Produkt-Welten / Industrie-PC / Embedded-PC
04-Embedded-Industrie-PC-Rear-SE-8400.jpg / TL Produkt-Welten / Industrie-PC / Embedded-PC
Order number:
15100432
gross price: €0.00
Price on request
gross price: €0.00
Prices plus VAT plus shipping costs
Delivery time: upon request
SPEZIFIKATIONEN
| Order number: | 15100432 |
| Manufacturer: | PT |
| Matchcode manufacturer: | nein |
| Manufacturer: | Protech |
| series name: | EmbeddedLine |
| Manufacturer item number: | SE-8400 |
| mechanics: | Embedded-PC |
| dimensions width: | 26,0 |
| dimensions height: | 8,0 |
| dimensions depth: | 20,0 |
| weight: | 4,9 |
| Material housing: | Aluminium / aluminium |
| Material Front : | Aluminium / aluminum |
| protection front: | IP20 |
| protection device: | IP20 |
| colour: | Gehäuse schwarz / Front blau |
| controls: | 2 Keys: Power, Reset, Status-LEDs |
| cooling: | lüfterlos / fanless |
| chipset: | Intel H110 |
| CPU Typ : | Core i3 |
| CPU Model : | 6100TE |
| CPU 64bit : | Ja |
| CPU speed: | 2700 |
| CPU cores: | 2 |
| CPU socket: | LGA1151, H4 |
| CPU alternative option 1: | Core i5-6xxx |
| CPU alternative option 2: | Core i7-6xxx |
| CPU alternative option 3: | Core i7-7xxx |
| RAM size (MB): | 8192 |
| RAM max. size (MB): | 32768 |
| RAM Number of benches: | 2 |
| RAM Typ : | SO-DDR4 |
| RAM speed: | 2133 |
| PCI Express x4 : | optional |
| Grafik Controller: | Intel HD Graphics 530 |
| Ethernet Controller: | Intel PHY219-LM + 210-AT |
| Audio Controller: | Realtek HD Audio |
| USB internal connections: | 4x USB 2.0, 2x USB 3.0 |
| Connections Serial internal: | 4x RS-232 |
| Mini-PCIe-slot: | 1 |
| Digital I/O : | Optional / optional |
| SSD design: | 2.5" |
| SSD max. number: | 2 |
| SSD capacity (GB): | 256 |
| Display: | 1x HDMI |
| USB : | 2 x USB 2.0 |
| Seriell : | Optional / optional |
| SIM Card Slot : | Ja / yes |
| Cfast Card Slot : | Ja / yes |
| Parallel Port: | Optional / optional |
| Display : | 1x DVI-I |
| USB : | 4 x USB 3.0 |
| LAN : | 2x RJ45 - 10/100/1000 Mbps |
| Audio : | Line-Out, Line-In, Mic in |
| serial: | 2 x RS-232, 2 x RS232/422/485 |
| controls: | Power On/Off, Reset |
| voltage input DC: | 9-36 V/DC |
| power adapter: | Optional externes Netzteil 100 - 240 V/A |
| WLAN: | Optional / optional |
| operating-system support: | Windows 7 / 8.1 / 10 IoT |
| operating temperatur min.: | 0°C |
| operating temperatur min.: | 50°C |
| warranty: | 24 Monate / 24 months |
