R15L100-MRC3HB
Marine Hardware

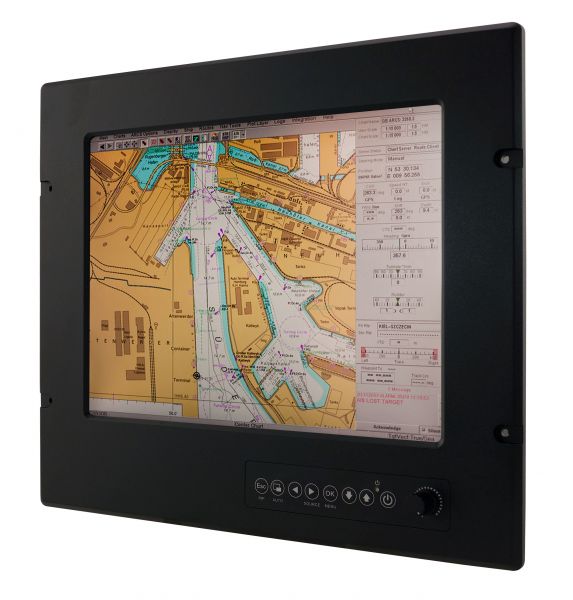

15" (1024 x 768) High Brightness Marine Display High brightness TFT-LCD panel enhance the best visibility Protection class IP66 Front side protected, IP 54 Back side protected Dimming knob control backlight brightness from nearly 0% to 100% User-friendly OSD control on the front marine display Enhanced shock and vibration resistance Resistive Touchscreen / Anti-Reflection Protection Glass (Optional) 24V DC-in with Isolation (Approval by Certificate) 9 to 36V DC Input Acceptable VESA Mount/ Panel Mount

01-Marine-Display-R15L100-MRC3HB.jpg / TL Produkt-Welten / Marine / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
01-Marine-Display-R15L100-MRC3HB.jpg / TL Produkt-Welten / Marine / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
02-Marine-Display-R15L100-MRC3HB.jpg / TL Produkt-Welten / Marine / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
02-Marine-Display-R15L100-MRC3HB.jpg / TL Produkt-Welten / Marine / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)

Order number: 51501551
gross price: €0.00
Price on request

Prices plus VAT plus shipping costs

Delivery time: upon request

HIGHLIGHTS
  • Diverse Einbau-Frontausführungen
  • Frontseitiger IP66-Schutz
  • Resistiver Touch-Screen
  • Langzeitverfügbarkeit
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 51501551
Manufacturer: WM
MatchcodeHersteller: nein
Manufacturer: Winmate
Manufacturer item number: R15L100-MRC3HB
mechanics: Panel Mount
dimensions width: 41,2
dimensions height: 34,5
dimensions depth: 7,97
Material housing: Stahlblech / steel sheet
Material Front : Aluminium / aluminum
protection front: IP66
colour: schwarz / black
controls: 8 Keys: Power, 7x Function
VESA-Mounting Interface: VESA 75 x 75 mm
mounting: Einbau von vorne / front installation
Display-diagonal (inch): 15,0
aspect ratio: 4:3
resolution: 1024 x 768
brightness: 1000 cd/m²
contrast: 2000:1
Display-Technology: LCD, LED Backlight
Touch-Screen or glass: Resistive Touch
Touch Interface: USB
Manufacturer controller: Premier
voltage input DC: 9-36 V/DC
external power supply: 12 V/DC, 100 - 240 V/AC, 4-pin
VGA: 1 x 15-pin D-sub
DVI: 1 x DVI-D
Video: 1 x Composite, 1 x S-Video
serial: 2 x RS232
operating temperatur min.: -15°C
operating temperatur max.: 55°C
warranty: 24 Monate / 24 months
