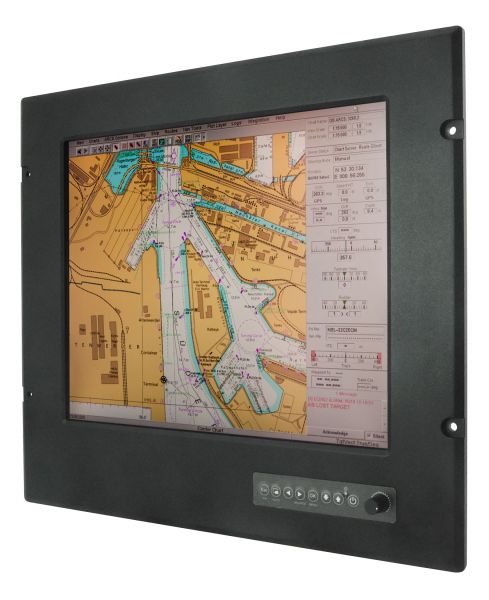

R17L500-MRM1

Marine Hardware

17" (1280 x 1024) Marine Display Protection class IP66 Front side protected, IP54 Back side protected Dimming knob control backlight brightness from nearly 0% to 100% User-friendly OSD control on the front marine display Enhanced shock and vibration resistance inclusive Resistive Touchscreen Option: Anti-Reflection Protection Glass 24V DC-in with Isolation (Approval by Certificate) 9 to 36V DC Input Acceptable VESA Mount/ Panel Mount 17" Marine Display Dimming knob control backlight brightness from nearly 0% to 100% IP66 aluminum housing with powder coating design (IP54 rear) 9-36 V/DC Isolated Power Module High quality resistive touchscreen Ease of use front panel OSD control Marine Display Enhanced shock and vibration resistance Dimensions Display: 460 x 410 x 77.2 mm, Rear VESA Mounting with 100x100 mm. Resolution: 1280 x 1024 Pixel Contrast: 1000:1 Brightness: 350 cd/m² View Angle: Hor.: -85° bis 85°, Vert.: -80° bis 80° I/O Ports: 1x VGA, 1x DVI-D, 1x Composite, 1x S-Video, 1x RS-232 for remote control, Front control: ESC/PIP, Auto adjustment, Left, Right/Source, OK/Menu, UP, Down, Power, 1x The Dimming Knob. Power rating: 9-36 V/DC incl. resistive Touch Screen Operating temperature: -15~55° C (Operating) Anti-Vibration: 0.7g@DNVGL CG-0339 (Class A) Anti-Shock: 15G, 11ms duration Certifications: IEC 60945 4th, IACS E10, CE, FCC Type: R17L500- MRM1 (with res. Touch) Country of Origin: Taiwan
