R19L300-MRA2ID3S
Marine Hardware

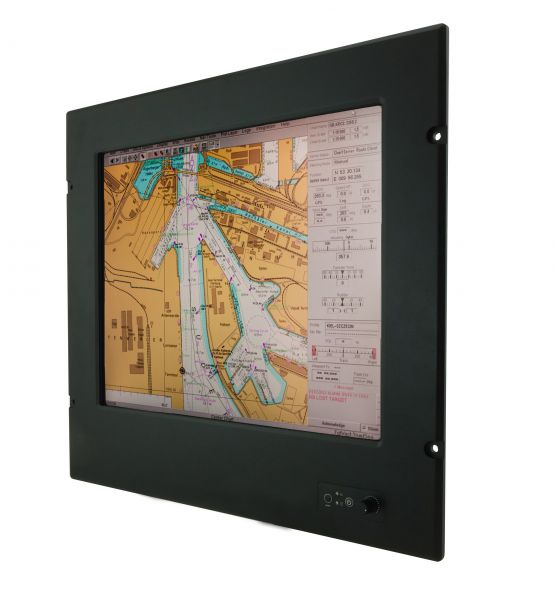

19" (1280 x 1024) Marine Panel PC Intel Atom® N2600 dual-core processor Meet the requirements of Industrial marine standards, including IEC60945 4th Edition, DNVGL-CG-0339, IACS E10 Protection class IP66 Front side protected, IP 54 Back side protected Dimming knob control backlight brightness from nearly 0% to 100% Resistive Touchscreen / Anti-Reflection Protection Glass (Optional) 24V DC-in with Isolation (Approval by Certificate) 9 to 36V DC Input Acceptable VESA Mount/ Panel Mount

01-Marine-Panel-PC R19L300-MRA2ID3S.jpg / TL Produkt-Welten / Marine Panel-PC / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
01-Marine-Panel-PC R19L300-MRA2ID3S.jpg / TL Produkt-Welten / Marine Panel-PC / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
02-Marine-Panel-PC R19L300-MRA2ID3S.jpg / TL Produkt-Welten / Marine Panel-PC / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
02-Marine-Panel-PC R19L300-MRA2ID3S.jpg / TL Produkt-Welten / Marine Panel-PC / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)

Order number: 23191858
gross price: €0.00
Price on request

Prices plus VAT plus shipping costs

Delivery time: upon request

HIGHLIGHTS
  • Frontseitiger IP66-Schutz
  • Resistiver Touch-Screen
  • Langzeitverfügbarkeit
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 23191858
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
Manufacturer item number: R19L300-MRA2ID3S
mechanics: Panel Mount
dimensions width: 38,45
dimensions height: 44,4
dimensions depth: 7,5
weight: 9,5
Material housing: Stahlblech / steel sheet
Material Front : Aluminium / aluminum
protection front: IP66
colour: schwarz / black
controls: 3 Keys: Power On/Of, Reset, Brightness
VESA-Mounting Interface: VESA 100 x 100 mm
mounting: Einbau von vorne / front installation
cooling: lüfterlos / fanless
Display-diagonal (inch): 19,0
aspect ratio: 4:3
resolution: 1280 x 1024
brightness: 350 cd/m²
contrast: 1000:1
Display-Technology: LCD, LED Backlight
Touch-Screen or glass: Resistive Touch
Touch Interface: USB
Manufacturer controller: Premier
voltage input DC: 24 V/DC
external power supply: 12 V/DC, 100 - 240 V/AC, 4-pin
VGA: 1 x 15-pin D-sub
USB: 2 x USB 2.0
serial: 1 x RS232/422/485, 4 x RS232
LAN: 2x RJ45 - 10/100/1000 Mbps
chipset: Intel NM10
CPU Typ: Atom
CPU Model: N2600
CPU 64bit: Ja
CPU speed: 1,6GHz
CPU cores: 2
CPU socket: FCBGA559
RAM size (MB): 4096
RAM Number of benches: 1
RAM Typ: SO-DDR3L
RAM speed: 1600
SSD design: mSATA
SSD max. number: 1
SSD capacity (GB): 128
Ethernet connections: 2 x RJ-45
Ethernet data transfer: 2 x Gigabit-LAN
Betriebssystem: Optional
operating temperatur min.: -15°C
operating temperatur max.: 55°C
warranty: 24 Monate / 24 months
