W24IH3S-MRA1FP
Marine Hardware

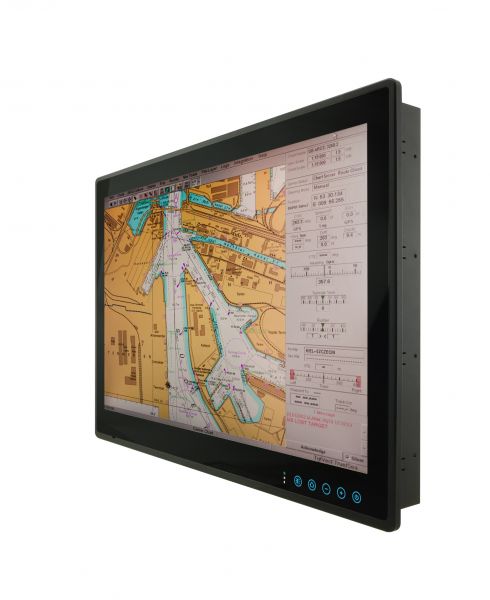

24” (1920 x 1080) PCAP ECDIS Marine Panel PC Intel Core i5-5350U Processor 1.8GHz (up to 2.9GHz) Meet the requirements of Industrial marine standards, including IEC60945 4th Edition, DNVGL-CG-0339, IACS E10 Protection class IP66 Front side protected Edge-to-edge narrow bezel design and fanless cooling system Optional Color calibrated for ECDIS compliance Capacitive touch keys for quick function access and display contro (Support ECDIS DAY, DUSK, and NIGHT mode) Optional 4 x COM port (NMEA 0183 protocol) 422/485 switchable via software Projected Capacitive Multi-Touch Screen (PCAP) / Anti-Reflection Protection Glass (Optional) / Anit-Glare film (Optional) VESA Mount/ Panel Mount

01-Marine-Panel-PC-W24IH3S-MRA1FP.jpg / TL Produkt-Welten / Marine Panel-PC / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
01-Marine-Panel-PC-W24IH3S-MRA1FP.jpg / TL Produkt-Welten / Marine Panel-PC / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
02-Marine-Panel-PC-W24IH3S-MRA1FP.png / TL Produkt-Welten / Marine Panel-PC / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
02-Marine-Panel-PC-W24IH3S-MRA1FP.png / TL Produkt-Welten / Marine Panel-PC / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
03-Marine-Panel-PC-W24IH3S-MRA1FP.png / TL Produkt-Welten / Marine Panel-PC / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
03-Marine-Panel-PC-W24IH3S-MRA1FP.png / TL Produkt-Welten / Marine Panel-PC / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)

Order number: 23240069
gross price: €0.00
Price on request

Prices plus VAT plus shipping costs

Delivery time: upon request

HIGHLIGHTS
  • Frontseitiger IP66-Schutz
  • P-CAP Touch-Screen
  • Langzeitverfügbarkeit
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 23240069
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
Manufacturer item number: W24IH3S-MRA1FP
mechanics: Panel Mount
dimensions width: 59,5
dimensions height: 38,5
dimensions depth: 6,38
weight: 10,3
Material housing: Stahlblech / steel sheet
Material Front : Aluminium / aluminum
protection front: IP66
colour: schwarz / black
controls: 5 Keys: Power, 4x Function
VESA-Mounting Interface: VESA 150 x 150 mm, 100 x 100 mm
mounting: Einbau von vorne / front installation
cooling: lüfterlos / fanless
Display-diagonal (inch): 24,0
aspect ratio: 16:9
resolution: 1920 x 1080
brightness: 300 cd/m²
contrast: 5000:1
Display-Technology: LCD, LED Backlight
Touch-Screen or glass: Projected Capactive / Multi-Touch
Touch Interface: USB
Manufacturer controller: P-CAP Touchcontroller
voltage input DC: 24 V/DC
external power supply: 12 V/DC, 100 - 240 V/AC, 4-pin
HDMI: 1 x HDMI (optional)
USB: 2 x USB 3.0, 1 x 2.0
serial: 1 x RS-232
LAN: 2x RJ45 - 10/100/1000 Mbps
CPU Typ: Core i5
CPU Model: 5350U
CPU 64bit: Ja
CPU speed: 1,8 GHz
CPU cores: 2
CPU socket: FCBGA1168
RAM size (MB): 4096
RAM max. size (MB): 8192
RAM Number of benches: 1
RAM Typ: SO-DDR3L
RAM speed: 1600
Grafik Controller: Intel HD-Grafik 6000
SSD design: mSATA
SSD max. number: 1
SSD capacity (GB): 128
Ethernet connections: 2 x RJ-45
Ethernet data transfer: 2 x Gigabit-LAN
Ethernet Controller : Intel I211-AT + I218-LM
Betriebssystem: Optional
operating temperatur min.: -15°C
operating temperatur max.: 55°C
warranty: 24 Monate / 24 months
