W26L100-MRA1FP
Marine Hardware

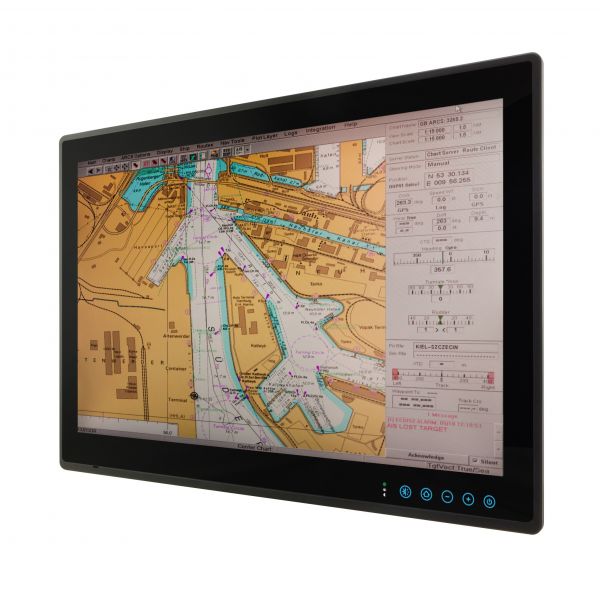

26” (1920 x 1200) PCAP ECDIS Marine Display Meet the requirements of Industrial marine standards, including IEC60945 4th Edition, DNVGL-CG-0339, IACS E10 Protection class IP66 Front side protected Edge-to-edge narrow bezel design and fanless cooling system Optional Color calibrated for ECDIS compliance Capacitive touch keys for quick function access and display contro (Support ECDIS DAY, DUSK, and NIGHT mode) Projected Capacitive Multi-Touch Screen (PCAP) / Anti-Reflection Protection Glass (Optional) / Anit-Glare film (Optional) 24V DC-in with Isolation (Approval by Certificate) 9 to 36V DC Input Acceptable VESA Mount/ Panel Mount
gross price: €0.00
Prices plus VAT plus shipping costs
Delivery time: upon request
| Order number: | 52600008 |
| Manufacturer: | WM |
| MatchcodeHersteller: | nein |
| Manufacturer: | Winmate |
| Manufacturer item number: | W26L100-MRA1FP |
| mechanics: | Panel Mount |
| dimensions width: | 62,1 |
| dimensions height: | 43,2 |
| dimensions depth: | 8,55 |
| weight: | 12,8 |
| Material housing: | Stahlblech / steel sheet |
| Material Front : | Aluminium / aluminum |
| protection front: | IP66 |
| colour: | schwarz / black |
| controls: | 5 Keys: -, +, Power, Esc, Enter |
| VESA-Mounting Interface: | VESA 200 x 100 mm, 100 x 100 mm |
| mounting: | Einbau von vorne / front installation |
| Display-diagonal (inch): | 26,0 |
| aspect ratio: | 16:9 |
| resolution: | 1920 x 1200 |
| brightness: | 350 cd/m² |
| contrast: | 1500:1 |
| Display-Technology: | LCD, LED Backlight |
| Touch-Screen or glass: | Projected Capactive / Multi-Touch |
| Touch Interface: | USB |
| Manufacturer controller: | P-CAP Touchcontroller |
| voltage input DC: | 9-36 V/DC |
| external power supply: | 12 V/DC, 100 - 240 V/AC, 4-pin |
| VGA: | 1 x 15-pin D-sub |
| DVI: | 1 x DVI-D |
| HDMI: | 1 x HDMI 1.4 |
| USB: | 1 x USB 2.0 |
| serial: | 1 x RS-232 |
| operating temperatur min.: | -15°C |
| operating temperatur max.: | 55°C |
| warranty: | 24 Monate / 24 months |
