W32L100-MRA3FP
Marine Hardware

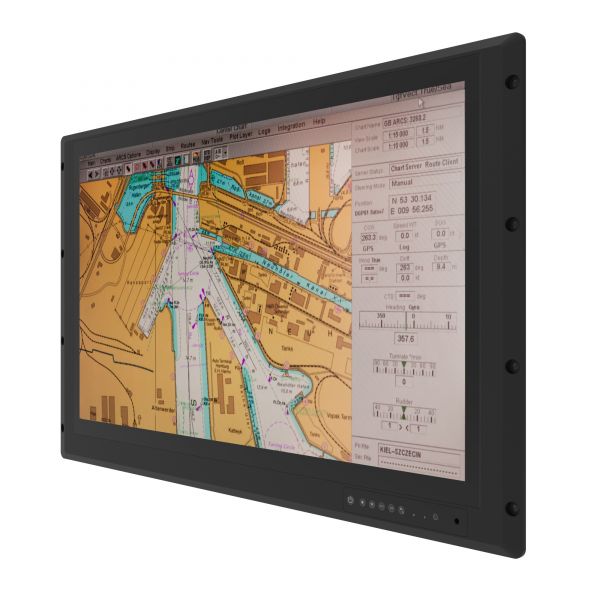

32” (1920 x 1080) PCAP ECDIS Marine Display Edge-to-edge narrow bezel design and fanless cooling system Enhanced shock and vibration resistance Projected Capacitive Multi Touch Screen / PCAP with With ITO Flim (Optional) 24V DC-in with Isolation (Approval by Certificate) 9 to 36V DC Input Acceptable VESA Mount/ Rack Mount/ Panel Mount
04-Marine-Display-W32L100-MRA3FP.jpg / TL Produkt-Welten / Industriemonitor / Marine / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
05-Marine-Display-W32L100-MRA3FP.jpg / TL Produkt-Welten / Industriemonitor / Marine / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
06-Marine-Display-W32L100-MRA3FP.jpg / TL Produkt-Welten / Marine / Industriemonitor / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Order number:
53200041
gross price: €0.00
Price on request
gross price: €0.00
Prices plus VAT plus shipping costs
Delivery time: upon request
SPEZIFIKATIONEN
| Order number: | 53200041 |
| Manufacturer: | WM |
| MatchcodeHersteller: | nein |
| Manufacturer: | Winmate |
| Manufacturer item number: | W32L100-MRA3FP |
| mechanics: | Panel Mount |
| dimensions width: | 82,5 |
| dimensions height: | 50,0 |
| dimensions depth: | 8,72 |
| Material housing: | Stahlblech / steel sheet |
| Material Front : | Aluminium / aluminum |
| protection front: | IP66 |
| colour: | schwarz / black |
| controls: | 7 Keys: Power, 6x Function |
| VESA-Mounting Interface: | VESA 200 x 100 mm, 100 x 100 mm |
| mounting: | Einbau von vorne / front installation |
| Display-diagonal (inch): | 32,0 |
| aspect ratio: | 16:9 |
| resolution: | 1920 x 1080 |
| brightness: | 400 cd/m² |
| contrast: | 4000:1 |
| Display-Technology: | LCD, LED Backlight |
| Touch-Screen or glass: | Projected Capactive / Multi-Touch |
| Touch Interface: | USB |
| Manufacturer controller: | P-CAP Touchcontroller |
| voltage input DC: | 9-36 V/DC |
| external power supply: | 12 V/DC, 100 - 240 V/AC, 4-pin |
| VGA: | 1 x 15-pin D-sub |
| DVI: | 1 x DVI-D |
| HDMI: | 1 x HDMI 1.4 |
| USB: | 1 x USB 2.0 |
| operating temperatur min.: | -15°C |
| operating temperatur max.: | 55°C |
| warranty: | 24 Monate / 24 months |
