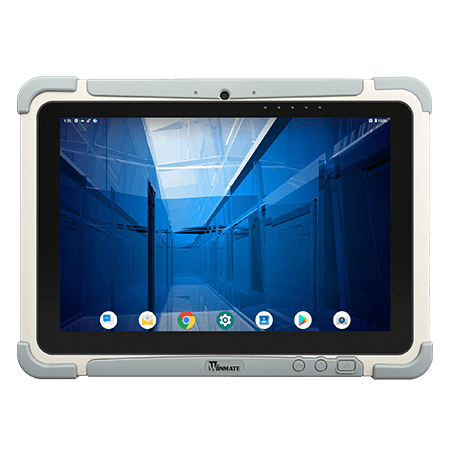

M101Q8-ME
Medical Hardware

10.1" (1920 x 1200) TFT LCD Display, Android Healthcare Tablet Qualcomm® SDA660 Kryo 260 CPU + Octa-core up to 2.2GHz Protection class IP65 all around incl. Interfaces Ruggedized tablet in aluminum case equipped with antimicrobial properties Choice of various standard and opional accessories configurable Shock, vibration and drop protected (MIL-STD-810G) Multi-touch (PCAP) with Glove / Rain / Stylus modes

01-M101Q8-ME.png / TL Produkt-Welten / Mobile Computing / Healthcare Rugged Tablets
01-M101Q8-ME.png / TL Produkt-Welten / Mobile Computing / Healthcare Rugged Tablets
02-M101Q8-ME.png / TL Produkt-Welten / Mobile Computing / Healthcare Rugged Tablets
02-M101Q8-ME.png / TL Produkt-Welten / Mobile Computing / Healthcare Rugged Tablets
03-M101Q8-ME.png / TL Produkt-Welten / Mobile Computing / Healthcare Rugged Tablets
03-M101Q8-ME.png / TL Produkt-Welten / Mobile Computing / Healthcare Rugged Tablets

Order number: 25100077
gross price: €0.00
Price on request

Prices plus VAT plus shipping costs

Delivery time: upon request

HIGHLIGHTS
  • Widerstandsfähige Alu-Mg-Gehäuse
  • Schutzkappen an den Ecken
  • Schutz gegen Staub und Wasser bis zu IP65
  • Schock-, Vibrations- und Sturz-Resistenz gemäß MIL-STD-810G
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 25100077
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: Rugged Industrial Tablet PC
Manufacturer item number: M101Q8-ME
mechanics: Rugged Tablet PC
dimensions width: 27,19
dimensions height: 1,95
dimensions depth: 19,73
weight: 1,2
Material housing: Aluminium - Magnesium
protection device: IP65
colour: weiß / white
cooling: lüfterlos / fanless
Display-diagonal (inch): 10,1
aspect ratio: 16:10
resolution: 1920 x 1200
brightness: 800 cd/m²
contrast: 800:1
Display-Technology: LCD, LED Backlight
Touch-Screen : Projected Capactive / Multi-Touch
usability: Finger/ Handschuh/ finger/ glove
CPU Typ: Qualcomm
CPU Model: Snapdragon 660
CPU speed: 2,2 GHz
RAM size (MB): 3072
SSD design: eMMC
SSD capacity: 32
WLAN: Ja / yes
Bluetooth: Ja / yes
Camera front: Ja / yes
Camera front resolution: 8MP
Camera rear: Ja / yes
Camera rear resolution: 13MP
RFID: Ja / yes
USB: 1x USB 3.0 Type C, 1x USB 2.0 Type A
Card Slot: 1x Micro SD Slot, 1x SIM Card Slot
Docking connector: 1x 19-pin Docking Connector
operating system: Android 9.0
operating temperatur min.: 0°C
operating temperatur max.: 35°C
Shock: MIL-STD-810G Method 516.6 Procedure I
Vibration: MIL-STD-810G Method 514.6 Procedure I
Drop: MIL-STD-810G Method 516.6, 4 ft
voltage input DC: 19 V/DC
external power supply: 19 V/DC, 100 - 240 V/AC, DC plug
battery: 7.4V, 5140 mAh (typ.) Li-Polymer Battery
battery Hot-Swap: Optional / optional
