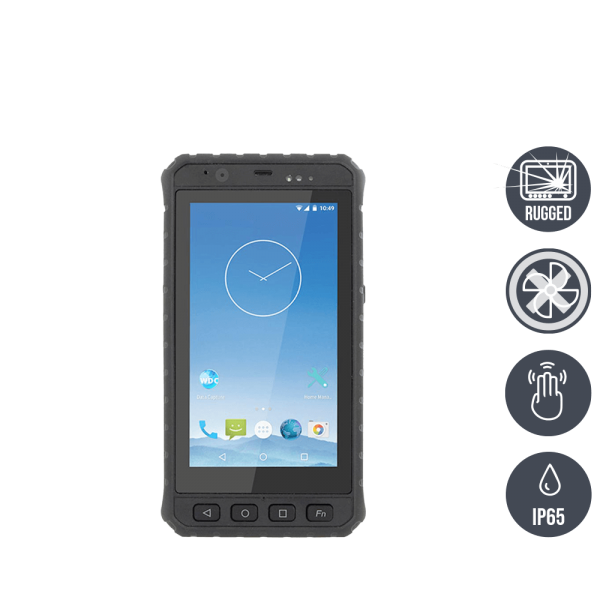

E500RM9
Rugged Industrial PDAs

Rugged Industrial PDA for professional use Ruggedized handheld in sturdy housing with all-around elastomeric rubber Protection class IP65 all around incl. Interfaces Shock, vibration and drop protected (MIL-STD-810H) 10-point multi-touch with hand / glove / rain mode, sunlight readable (optical bonding) Battery life up to 20 h The ideal partner for warehouse, logistics, automotive, outdoor, smart factory, field service etc. Long-term availability

01-Rugged-Industrial-PDA-E500RM9.png / TL Produkt-Welten / Mobile Computing / Rugged Industrial PDAs
01-Rugged-Industrial-PDA-E500RM9.png / TL Produkt-Welten / Mobile Computing / Rugged Industrial PDAs
02-Rugged-Industrial-PDA-E500RM9 / TL Produkt-Welten / Mobile Computing / Rugged Industrial PDAs
02-Rugged-Industrial-PDA-E500RM9 / TL Produkt-Welten / Mobile Computing / Rugged Industrial PDAs
03-Rugged-Industrial-PDA-Rear-E500RM9 / TL Produkt-Welten / Mobile Computing / Rugged Industrial PDAs
03-Rugged-Industrial-PDA-Rear-E500RM9 / TL Produkt-Welten / Mobile Computing / Rugged Industrial PDAs

Order number: 25050008
gross price: €0.00
Price on request

Prices plus VAT plus shipping costs

Delivery time: upon request

HIGHLIGHTS
  • Widerstandsfähige Bauform
  • Schlankes Design
  • IP65 wasser- und staubdicht
  • Schock-, Vibrations- und Sturz-Resistenz gemäß MIL-STD-810H
  • Audio: 1 x Audio Combo connector (Mic in or Line Out), 2 x Builtin Mic, 1 x Speaker, 1 x Receiver
  • Card-Slot: 1 x Micro SD Card Slot, 2 x SIM Card Slot
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 25050008
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: Rugged Industrial PDA
Manufacturer item number: E500RM9
mechanics: Handheld
dimensions width: 85,9
dimensions height: 16,32
dimensions depth: 2,25
weight: 0,315
Material housing: Kunststoff / plastic
protection device: IP65
colour: Schwarz / black
cooling: lüfterlos / fanless
Display-diagonal (inch): 5,0
aspect ratio: 16:9
resolution: 1280 x 720
brightness: 500 cd/m²
contrast: 800:1
Display-Technology: LCD, LED Backlight
Touch-Screen : Projected Capactive / Multi-Touch
usability: Finger/ Handschuh/ finger/ glove
CPU Typ: ARM Cortex
CPU Model: A73 + A53
CPU speed: 2,0 GHz
CPU cores: 8
RAM size (MB): 4096
SSD capacity: 64
WLAN: Ja / yes
Bluetooth: Ja / yes
WWAN: Optional / optional
Camera front: Ja / yes
Camera front resolution: 8MP
Camera rear: Ja / yes
Camera rear resolution: 13MP
Barcode: Optional / optional
RFID: Optional / optional
Finger Print: Optional / optional
USB: 1x Micro USB OTG
Docking connector: 1x 19-pin Docking Connector
controls: 8 Keys: Power, 7x Function
operating system: Android 11
operating temperatur min.: -10°C
operating temperatur max.: 50°C
Shock: MIL-STD-810H Method 516.6 Procedure I
Vibration: MIL-STD-810H Method 514.8 Procedure I
Drop: MIL-STD-810H Method 516.6, 4 ft
voltage input DC: 5 V/DC
external power supply: 5 V/DC, 100 - 240 V/AC, DC plug
battery: 3.7V, 3900 mAh Li-ion Battery
battery Hot-Swap: Optional / optional
