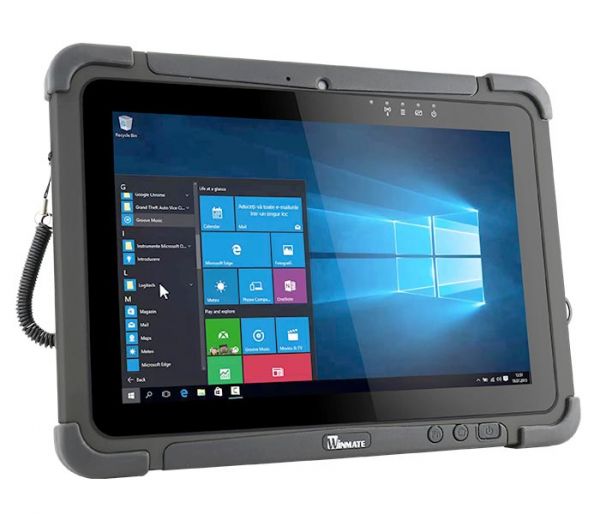

M101S-BH
Rugged Industrial Tablets

Tablet PC for professional use Ruggedized Tablet in sturdy aluminium housing Protection class IP65 all around incl. Interfaces Shock, vibration and drop protected (MIL-STD-810G) Multi-touch (PCAP) with Glove / Rain / Stylus modes Wide range of options and accessories for data capture, communication, docking, mounting, power, peripherals and transportation The ideal partner for warehouse, logistics, automotive, outdoor, smart factory, field service etc. Long-term availability

01-Rugged-Industrie-Tablet-M101S
01-Rugged-Industrie-Tablet-M101S
06-Rugged-Industrie-Tablet-Barcode-M101
06-Rugged-Industrie-Tablet-Barcode-M101
12-Rugged-Industrie-Tablet-Vehicle-Dock-M101
12-Rugged-Industrie-Tablet-Vehicle-Dock-M101

Order number: 25100021
gross price: €2,540.40
€2,190.00 *

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

HIGHLIGHTS
  • Widerstandsfähige Alu-Mg-Gehäuse
  • 1D/2D-Barcodescanner
  • Schutz gegen Staub und Wasser bis zu IP65
  • Schock-, Vibrations- und Sturz-Resistenz gemäß MIL-STD-810G
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 25100021
Manufacturer: WM
Matchcode manufacturer: Ja
Manufacturer: Winmate
series name: Rugged Industrial Tablet PC
Manufacturer item number: M101S
mechanics: Rugged Tablet PC
dimensions width: 27,2
dimensions height: 19,8
dimensions depth: 2,1
weight: 1,3
Material housing: Aluminium - Magnesium
protection device: IP65
colour: Schwarz / black
VESA-Mounting Interface: Optional / optional
cooling: aktiv / fan cooling
Display-diagonal (inch): 10,1
aspect ratio: 16:10
resolution: 1920 x 1080
brightness: 800 cd/m²
contrast: 800:1
Display-Technology: LCD, LED Backlight
Touch-Screen : Projected Capactive / Multi-Touch
usability: Finger/Stift/Handschuh / finger/pen/glov
CPU Typ: Core i5
CPU Model: 7200U
CPU speed: 2,5 GHz
CPU cores: 2
RAM size (MB): 8192
RAM max. Größe (MB: 16384
RAM Typ: SO-DDR4
RAM speed: 2133
SSD design: M.2
SSD capacity: 128
SSD number: 1
SSD number max.: 1
RAID-System: Nein / no
safety: TPM 2.0 und Kensington Lock
WLAN: Ja / yes
WLAN-Standard: IEEE 802.11 a/b/g/n/ac
Bluetooth: Ja / yes
WWAN: Optional / optional
Ethernet data transfer: 1 x Gigabit-LAN
Camera front: Ja / yes
Camera front resolution: 2MP
Camera rear: Ja / yes
Camera rear resolution: 8MP
Barcode: 1D/2D Barcode reader
RFID: Nein / no
Finger Print: Nein / no
Video: 1x Mirco HDMI
USB: 1x USB 3.0 (Type A), 1x USB 3.0 (Type C)
Card Slot: 1x Micro SD Slot
Audio: 1x Audio Combo Conn.(Mic in/Line out)
Power: 1x 12-19 V/DC, DC plug
Docking connector: 1x 19-pin Docking Connector
controls: 6 Keys: Power, Home, 2x Volume, 2x Funct
operating system: Windows 10 IoT Enterprise
operating temperatur min.: -10°C
operating temperatur max.: 50°C
Shock: MIL-STD-810G Method 516.6 Procedure I
Vibration: MIL-STD-810G Method 514.6 Procedure I
Drop: MIL-STD-810G Method 516.6, 4 ft to concr
voltage input DC: 12-19 V/DC
external power supply: 19 V/DC, 100 - 240 V/AC, DC plug
battery: 7.4V, 5900 mAh (typ.) Li-Polymer Batter
battery Hot-Swap: Ja / yes
