M116P
Rugged Industrial Tablets

Tablet PC for professional use Ruggedized Tablet in sturdy aluminium housing Protection class IP65 all around incl. Interfaces Shock, vibration and drop protected (MIL-STD-810G) Multi-touch (PCAP) with Glove / Rain / Stylus modes Wide range of options and accessories for data capture, communication, docking, mounting, power, peripherals and transportation The ideal partner for warehouse, logistics, automotive, outdoor, smart factory, field service etc.

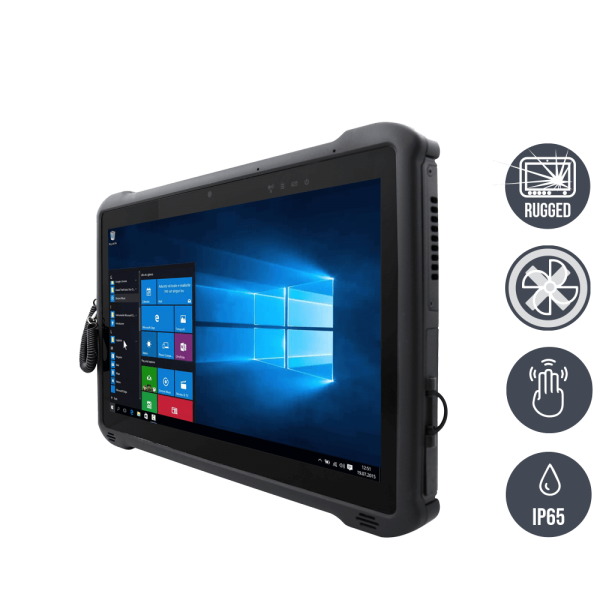

01-Front-right-M116P.png / TL Produkt-Welten / Mobile Computing / Rugged Industrial Tablets
01-Front-right-M116P.png / TL Produkt-Welten / Mobile Computing / Rugged Industrial Tablets
02-Front-M116P / TL Produkt-Welten / Mobile Computing / Rugged Industrial Tablets
02-Front-M116P / TL Produkt-Welten / Mobile Computing / Rugged Industrial Tablets

Order number: 25130026
gross price: €2,130.10
€1,790.00 *

Prices plus VAT plus shipping costs

Delivery time: upon request

HIGHLIGHTS
  • Widerstandsfähige Alu-Mg-Gehäuse
  • Schutzkappen an den Ecken
  • Schutz gegen Staub und Wasser bis zu IP65
  • Schock-, Vibrations- und Sturz-Resistenz gemäß MIL-STD-810G
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 25130026
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: Rugged Industrial Tablet PC
Manufacturer item number: M116
mechanics: Rugged Tablet PC
dimensions width: 30,06
dimensions height: 20,2
dimensions depth: 2,25
weight: 1,4
Material housing: Aluminium - Magnesium
protection device: IP65
colour: Schwarz / black
cooling: lüfterlos / fanless
Display-diagonal (inch): 11,6
aspect ratio: 16:9
resolution: 1920 x 1080
brightness: 850 cd/m²
contrast: 1000:1
Display-Technology: LCD, LED Backlight
Touch-Screen : Projected Capactive / Multi-Touch
usability: Finger/Stift/Handschuh / finger/pen/glov
CPU Typ: Pentium
CPU Model: N4200
CPU speed: 1,1 GHz
CPU cores: 4
RAM size (MB): 4096
RAM Typ: DDR4
RAM speed: 2400
SSD design: M.2
SSD capacity: 128
SSD number: 1
safety: TPM 2.0 und Kensington Lock
WLAN: Ja / yes
WLAN-Standard: IEEE 802.11 a/b/g/n/ac
Bluetooth: Ja / yes
Ethernet_connections: 1x RJ-45
Ethernet data transfer: 1 x Gigabit-LAN
Camera front: Ja / yes
Camera front resolution: 2MP
Camera rear: Ja / yes
Camera rear resolution: 8MP
Video: 1x Mirco HDMI
USB: 1x USB 3.0 (Type A), 1x USB 3.0 (Type C)
serial: 1x RS-232 über USB-C Adapter (optional)
LAN: 1x RJ45 über USB-C Adapter (optional)
Card Slot: 1x Micro SD Slot
Audio: 1x Audio Combo Conn.(Mic in/Line out)
Power: 1x 19 V/DC, DC plug
Docking connector: 1x 19-pin Docking Connector
controls: 4 Keys: Power, Volume, Fn1, Fn2
operating system: Windows 10 IoT Enterprise
operating temperatur min.: -10°C
operating temperatur max.: 50°C
Shock: MIL-STD-810G Method 516.6 Procedure I
Vibration: MIL-STD-810G Method 514.6 Procedure I
Drop: MIL-STD-810G Method 516.6, 4 ft
voltage input DC: 19 V/DC
voltage input AC: 100 - 240 V/AC
battery: 7.7V, 5900 mAh Li-Polymer Battery (2S1P)
battery Hot-Swap: Ja / yes
Weiterführende Links zu "M116P"
Verfügbare Downloads:
