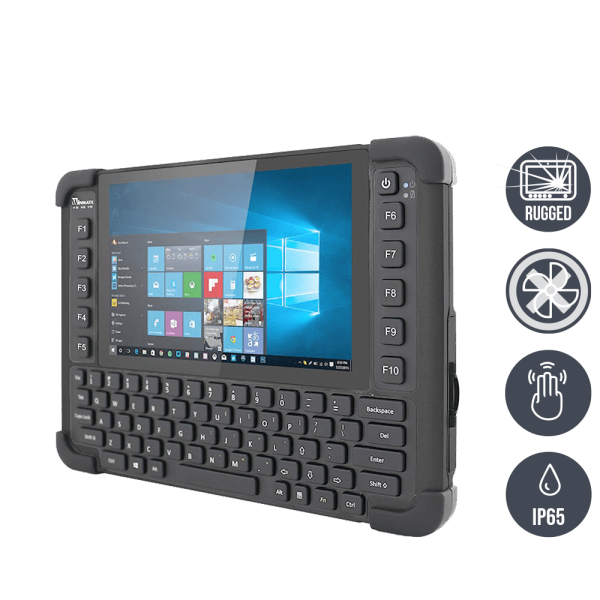

Rugged Tablet-PC M101EKB
Rugged Industrial Tablets

Tablet PC for professional use with integrated keypad Ruggedized Tablet in sturdy aluminium housing Protection class IP65 all around incl. Interfaces Shock, vibration and drop protected (MIL-STD-810H) Multi-touch (PCAP) with Glove / Rain / Stylus modes ISO/IEC 9995-3 QWERTY Keypad Wide range of options and accessories for data capture, communication, docking, mounting, power, peripherals and transportation The ideal partner for warehouse, logistics, automotive, outdoor, smart factory, field service etc. Long-term availability

01-Rugged-Industrie-Tablet-M101EKB.png / TL Produkt-Welten / Mobile Computing / Rugged Industrial Tablets
01-Rugged-Industrie-Tablet-M101EKB.png / TL Produkt-Welten / Mobile Computing / Rugged Industrial Tablets
Order number: 25080011
gross price: €2,011.10
€1,690.00 *

Prices plus VAT plus shipping costs

Delivery time: upon request

HIGHLIGHTS
  • Widerstandsfähige Alu-Mg-Gehäuse
  • Schutzkappen an den Ecken
  • Schutz gegen Staub und Wasser bis zu IP65
  • Schock-, Vibrations- und Sturz-Resistenz gemäß MIL-STD-810H
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 25080011
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: Rugged Industrial Tablet PC
Manufacturer item number: M101EKB
mechanics: Rugged Tablet PC
dimensions width: 27,18
dimensions height: 19,82
dimensions depth: 2,2
weight: 1,35
Material housing: Aluminium - Magnesium
protection device: IP65
colour: Schwarz / black
cooling: lüfterlos / fanless
Display-diagonal (inch): 8,0
aspect ratio: 16:10
resolution: 1280 x 800
brightness: 800 cd/m²
contrast: 1500:1
Display-Technology: LCD, LED Backlight
Touch-Screen : Projected Capactive / Multi-Touch
usability: Finger/ Handschuh/ finger/ glove
CPU Typ: Intel Celeron
CPU Model: N6211
CPU speed: 1,2 GHz
CPU cores: 2
RAM size (MB): 4096
RAM max. Größe (MB: 8192
RAM Typ: LPDDR4
SSD capacity: 128
SSD number: 1
safety: TPM 2.0
WLAN: Ja / yes
Bluetooth: Ja / yes
Camera rear: Ja / yes
Camera rear resolution: 8MP
Barcode: Optional / optional
RFID: Optional / optional
Video: 1x Mirco HDMI (optional)
USB: 1x USB 3.0 (Type A), 1x USB 3.0 (Type C)
Card Slot: 1x Micro SD Slot, 1x SIM Card Slot
Audio: 1x Audio Combo jack 3.5mm
Docking connector: 1x 19-pin Docking Connector
controls: 11 Keys: Power, 10x Function
operating system: Windows 10 IoT Enterprise
operating temperatur min.: -10°C
operating temperatur max.: 50°C
Shock: MIL-STD-810H Method 516.8 Procedure I
Vibration: MIL-STD-810H Method 514.8 Procedure I
Drop: MIL-STD-810H Method 516.8, 4 ft
voltage input DC: 19 V/DC
external power supply: 19 V/DC, 100 - 240 V/AC, DC plug
battery: 7.7V, 5900 mAh Li-Polymer Battery (2S1P)
battery Hot-Swap: Ja / yes
