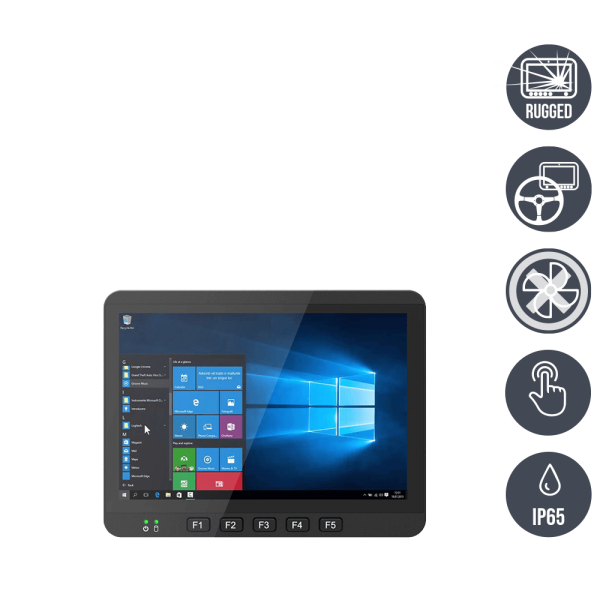

FM07P
Vehicle Mount Computer

Tablet PC ready for vehicle and forklift installation Ruggedized Tablet and docking unit in sturdy magnesium alloy housing Protection class IP65 all around incl. Interfaces Shock and vibration protected (MIL-STD-810G) Antiscratch resistive touch (finger & stylus) The ideal partner for warehouse, logistics, automotive, outdoor etc. Long-term availability

01-Vehicle-Mount-Computer-FM07P.png / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
01-Vehicle-Mount-Computer-FM07P.png / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
02-Vehicle-Mount-Computer-FM07P / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
02-Vehicle-Mount-Computer-FM07P / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
03-Vehicle-Mount-Computer-FM07P / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
03-Vehicle-Mount-Computer-FM07P / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer

Order number: 23070039
gross price: €1,642.20
€1,380.00 *

Prices plus VAT plus shipping costs

Delivery time: upon request

HIGHLIGHTS
  • Für Fahrzeug- und Gabelstapler-Einbau
  • Widerstandsfähige Gehäuse aus Magnesium-Legierung
  • IP65 wasser- und staubdicht
  • Schock- und Vibrations-Resistenz gemäß MIL-STD-810H
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 23070039
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: Vehicle Mounted Computer
Manufacturer item number: FM07P
mechanics: Vehicle Mount Computer
dimensions width: 19,0
dimensions height: 14,6
dimensions depth: 4,0
weight: 1,25
Material housing: Aluminium / aluminium
protection device: IP65
colour: Schwarz / black
VESA-Mounting Interface: VESA 30,5 x 38,1
cooling: lüfterlos / fanless
Display-diagonal (inch): 7,0
aspect ratio: 16:9
resolution: 1024 x 600
brightness: 1000 cd/m²
contrast: 700:1
Display-Technology: LCD, LED Backlight
Touch-Screen : Projected Capactive / Multi-Touch
usability: Finger/Stift / finger/pen
CPU Typ: Intel Celeron
CPU Model: N3350
CPU speed: 1,1 GHz
CPU cores: 2
RAM size (MB): 4096
RAM max. Größe (MB: 8192
RAM Typ: SO-DDR3L
RAM speed: 1600
SSD design: M.2
SSD capacity: 128
SSD number: 1
safety: TPM 2.0
WLAN: Ja / yes
Bluetooth: Ja / yes
WWAN: Optional / optional
Ethernet_connections: 1x RJ-45
Ethernet data transfer: 1 x Gigabit-LAN
USB: 2x 3.0 USB (Type A)
serial: 2x RS-232
LAN: 1x RJ45 - 10/100 Mbps
Card Slot: 1x SIM Slot
Audio: 1 x Speaker
Power: 1x 9-36 V/DC, DC plug
controls: 6 Keys: Power, 5x Function
operating system: Windows 10 IoT Enterprise
operating temperatur min.: -20°C
operating temperatur max.: 60°C
Shock: MIL-STD-810G Method 516.6 Procedure I
Vibration: MIL-STD-810G Method 514.6 Procedure I
voltage input DC: 12-19 V/DC
external power supply: 12 V/DC, 100 - 240 V/AC, DC plug
