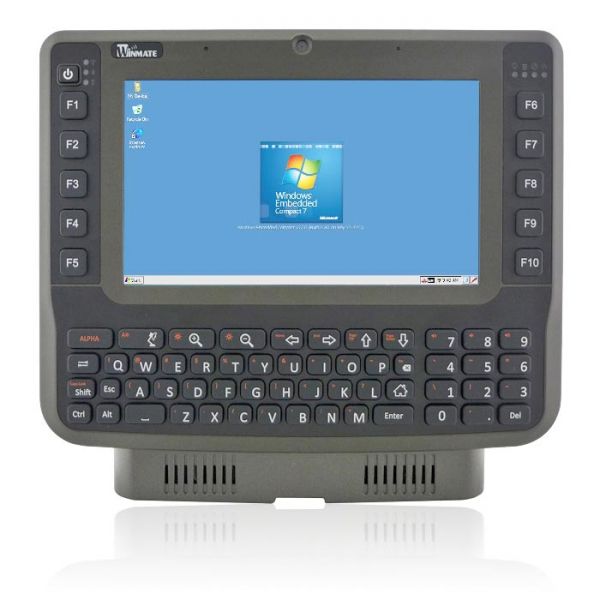

FM08
Vehicle Mount Computer
Tablet PC with integrated keypad ready for vehicle and forklift installation Ruggedized Tablet and docking unit in sturdy magnesium alloy housing Protection class IP65 all around incl. Interfaces Shock and vibration protected (MIL-STD-810G) Antiscratch resistive touch (finger & stylus) Tablet unit with QWERTY keypad, 10 function keys and numpad SMA connector for external antenna 10-60 V input, wide operating temperature range, mounting accessories etc. Field-replaceable front unit (Tablet) reduces service costs and downtime The ideal partner for warehouse, logistics, automotive, outdoor etc. Long-term availability
gross price: €0.00
Prices plus VAT plus shipping costs
Delivery time: upon request
| Order number: | 25080001 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| series name: | Rugged Industrial Tablet PC |
| Manufacturer item number: | FM08 VMC |
| mechanics: | Rugged Tablet PC |
| dimensions width: | 26,8 |
| dimensions height: | 21,4 |
| dimensions depth: | 3,2 |
| weight: | 1,6 |
| Material housing: | Magnesium Legierung / Magnesium alloy |
| colour: | Schwarz / black |
| VESA-Mounting Interface: | VESA 75 x 75 / 100 x 100 mm |
| cooling: | lüfterlos / fanless |
| Display-diagonal (inch): | 8 |
| aspect ratio: | 4:3 |
| resolution: | 800 x 600 |
| brightness: | 500 cd/m² |
| contrast: | 1100:1 |
| Display-Technology: | LCD, LED Backlight |
| Touch-Screen : | Resistive Touch |
| usability: | Finger/Stift / finger/pen |
| CPU Typ: | Atom |
| CPU Model: | E3845 |
| CPU speed: | 1,91 GHz |
| CPU cores: | 4 |
| RAM size (MB): | 4096 |
| RAM max. Größe (MB: | 8192 |
| RAM Typ: | SO-DDR3L |
| RAM speed: | 1600 |
| SSD design: | M.2 |
| SSD capacity: | 64 |
| SSD number: | 1 |
| SSD number max.: | 1 |
| RAID-System: | Nein / no |
| safety: | SOTI MobiControl compatible |
| WLAN: | Ja / yes |
| WLAN-Standard: | IEEE 802.11 a/b/g/n/ac |
| Bluetooth: | Ja / yes |
| WWAN: | Optional / optional |
| Ethernet_connections: | 1x 400 Mbps LAN Port |
| Ethernet data transfer: | 1 x Gigabit-LAN |
| Camera front: | Ja / yes |
| Camera front resolution: | 2MP |
| Camera rear: | Nein / no |
| Barcode: | Nein / no |
| RFID: | Nein / no |
| Finger Print: | Nein / no |
| USB: | 1x USB 3.0 |
| Card Slot: | 1x SD Slot |
| Audio: | Canbus |
| Power: | 1x 10-60 V/DC, DC Plug |
| Docking connector: | 1x 19-pin Docking Connector |
| controls: | 7 Keys: Power, 6x Function |
| operating system: | Windows 10 IoT Enterprise |
| operating system optional: | Windows 7 Professional |
| operating temperatur min.: | -10°C |
| operating temperatur max.: | 50°C |
| Shock: | MIL-STD-810G Method 516.6 Procedure I |
| Vibration: | MIL-STD-810G Method 514.6 Procedure I |
| Drop: | MIL-STD-810G Method 516.6, 4 ft to concrete |
| voltage input DC: | 10 V-60 V |
| battery: | 7.6V, 5800 mAh Li-Polymer Battery (2S1P) |
- CE_VMC FM08 FM10 Gebrauchsanleitung 20180114
- Zubehör Accessories FM08 + FM10 - Keyboard Base Plate
- Zubehör Accessories FM08 + FM10 - Keyboard Mounting
- Zubehör Accessories FM08 + FM10 - List
- Zubehör Accessories FM08 + FM10 - RAM Mounting
- CE Konformitätserklärung DoC VMC FM08
- Drawing Vehicle Mounted Computer FM08
