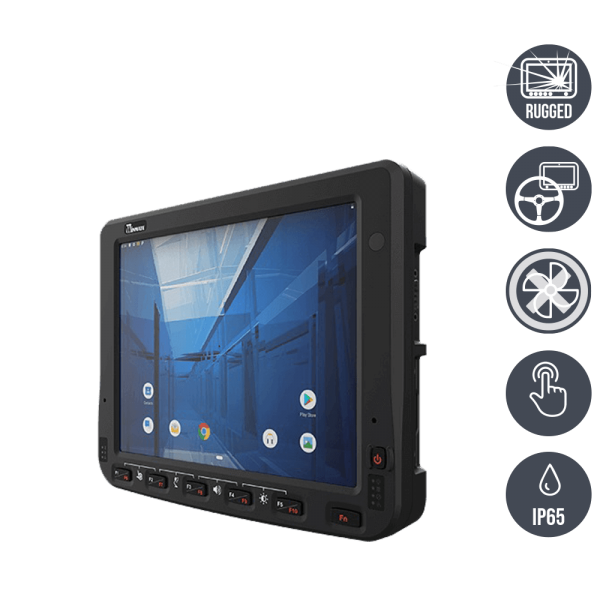

FM10Q-V
Vehicle Mount Computer
Tablet PC ready for vehicle and forklift installation Ruggedized Tablet in sturdy magnesium alloy housing Protection class IP65 all around incl. Interfaces Shock and vibration protected (MIL-STD-810H) Antiscratch resistive touch (finger & stylus) SMA connector for external antenna 10-60 V input, wide operating temperature range, mounting accessories etc. The ideal partner for warehouse, logistics, automotive, outdoor etc. Long-term availability
01-Fahrzeug-montierbarer-PC-FM10Q-V.png / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
02-Fahrzeug-montierbarer-PC-FM10Q-V / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
03-Fahrzeug-montierbarer-PC-FM10Q-V / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
04-Fahrzeug-montierbarer-PC-FM10Q-V / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
Order number:
23100607
gross price: €2,106.30
€1,770.00 *
gross price: €2,106.30
Prices plus VAT plus shipping costs
Delivery time: upon request
SPEZIFIKATIONEN
| Order number: | 23100607 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| series name: | Vehicle Mounted Computer |
| Manufacturer item number: | FM10Q-V |
| mechanics: | Vehicle Mount Computer |
| dimensions width: | 26,8 |
| dimensions height: | 21,4 |
| dimensions depth: | 5,1 |
| weight: | 2,4 |
| Material housing: | Aluminium / aluminium |
| protection device: | IP65 |
| colour: | Schwarz / black |
| VESA-Mounting Interface: | VESA 75 x 75 / 100 x 100 mm |
| cooling: | lüfterlos / fanless |
| Display-diagonal (inch): | 10,4 |
| aspect ratio: | 4:3 |
| resolution: | 1024 x 768 |
| brightness: | 400 cd/m² |
| contrast: | 1200:1 |
| Display-Technology: | LCD, LED Backlight |
| Touch-Screen : | Projected Capactive / Multi-Touch |
| usability: | Finger/Stift/Handschuh / finger/pen/glov |
| CPU Typ: | Qualcomm |
| CPU Model: | Snapdragon 660 |
| CPU speed: | 2,2 GHz |
| CPU cores: | 8 |
| RAM size (MB): | 3072 |
| SSD capacity: | 32 |
| SSD number: | 1 |
| safety: | TPM 2.0 |
| WLAN: | Ja / yes |
| Bluetooth: | Ja / yes |
| WWAN: | Optional / optional |
| Ethernet_connections: | 1x RJ-45 |
| Ethernet data transfer: | 1 x Gigabit-LAN |
| Camera front: | Ja / yes |
| Camera front resolution: | 2MP |
| USB: | 1x USB 3.0 Type C (OTG), 1x USB 2.0 Port |
| serial: | 2x RS-232 |
| LAN: | 1x RJ45 - 10/100 Mbps |
| Card Slot: | 1x Micro SD Slot, 1x Dual-Nano SIM Slot |
| Power: | 1x 10-60 V/DC, DC Plug |
| controls: | 7 Keys: Power, 6x Function |
| operating system: | Android 9.0 |
| operating temperatur min.: | -30°C |
| operating temperatur max.: | 60°C |
| Shock: | MIL-STD-810H Method 516.8 Procedure I |
| Vibration: | MIL-STD-810H Method 514.8 Procedure I |
| voltage input DC: | 10 V-60 V |
| external power supply: | 12 V/DC, 100 - 240 V/AC, DC plug |
