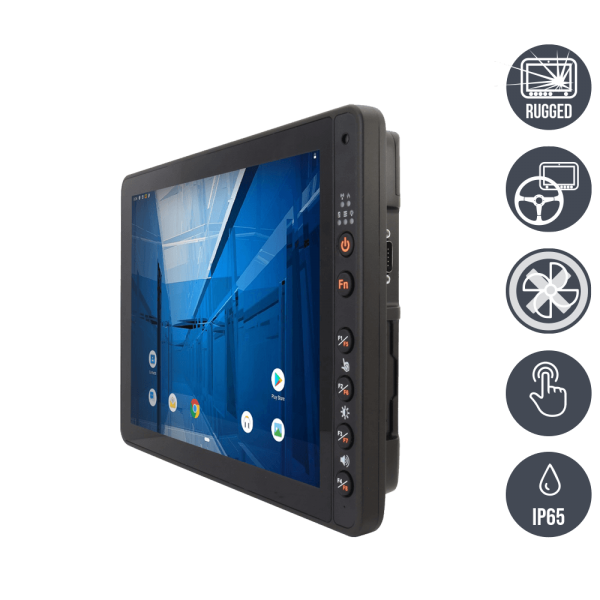

FM12Q-V
Vehicle Mount Computer

Tablet PC ready for vehicle and forklift installation Ruggedized Tablet in sturdy magnesium alloy housing Protection class IP65 all around incl. Interfaces Shock and vibration protected (MIL-STD-810H) Antiscratch resistive touch (finger & stylus) SMA connector for external antenna 10-60 V input, wide operating temperature range, mounting accessories etc. The ideal partner for warehouse, logistics, automotive, outdoor etc. Long-term availability

01-Fahrzeug-montierbarer-PC-FM12Q-V.png / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
01-Fahrzeug-montierbarer-PC-FM12Q-V.png / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
02-Fahrzeug-montierbarer-PC-FM12Q-V / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
02-Fahrzeug-montierbarer-PC-FM12Q-V / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
03-Fahrzeug-montierbarer-PC-FM12Q-V / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
03-Fahrzeug-montierbarer-PC-FM12Q-V / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
04-Fahrzeug-montierbarer-PC-FM12Q-V / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
04-Fahrzeug-montierbarer-PC-FM12Q-V / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
Order number: 23120440
gross price: €0.00
Price on request

Prices plus VAT plus shipping costs

Delivery time: upon request

HIGHLIGHTS
  • Für Fahrzeug- und Gabelstapler-Einbau
  • Widerstandsfähige Gehäuse aus Magnesium-Legierung
  • IP65 wasser- und staubdicht
  • Schock- und Vibrations-Resistenz gemäß MIL-STD-810H
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 23120440
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: Vehicle Mounted Computer
Manufacturer item number: FM12Q-V
mechanics: Vehicle Mount Computer
dimensions width: 30,7
dimensions height: 22,5
dimensions depth: 5,7
weight: 2,5
Material housing: Aluminium / aluminium
protection device: IP65
colour: Schwarz / black
VESA-Mounting Interface: VESA 75 x 75 / 100 x 100 mm
cooling: lüfterlos / fanless
Display-diagonal (inch): 12,1
aspect ratio: 4:3
resolution: 1024 x 768
brightness: 400 cd/m²
contrast: 1000:1
Display-Technology: LCD, LED Backlight
Touch-Screen : Projected Capactive / Multi-Touch
usability: Finger/Stift/Handschuh / finger/pen/glov
CPU Typ: Qualcomm
CPU Model: Snapdragon 660
CPU speed: 2,2 GHz
CPU cores: 8
RAM size (MB): 3072
SSD capacity: 32
SSD number: 1
safety: TPM 2.0
WLAN: Ja / yes
Bluetooth: Ja / yes
WWAN: Optional / optional
Ethernet_connections: 1x RJ-45
Ethernet data transfer: 1 x Gigabit-LAN
Camera front: Ja / yes
Camera front resolution: 2MP
USB: 1x USB 3.0 Type C (OTG), 1x USB 2.0 Port
serial: 2x RS-232
LAN: 1x RJ45 - 10/100 Mbps
Card Slot: 1x Micro SD Slot, 1x Dual-Nano SIM Slot
Power: 1x 10-60 V/DC, DC Plug
controls: 7 Keys: Power, 6x Function
operating system: Android 9.0
operating temperatur min.: -30°C
operating temperatur max.: 60°C
Shock: MIL-STD-810H Method 516.8 Procedure I
Vibration: MIL-STD-810H Method 514.8 Procedure I
voltage input DC: 10 V-60 V
external power supply: 12 V/DC, 100 - 240 V/AC, DC plug
