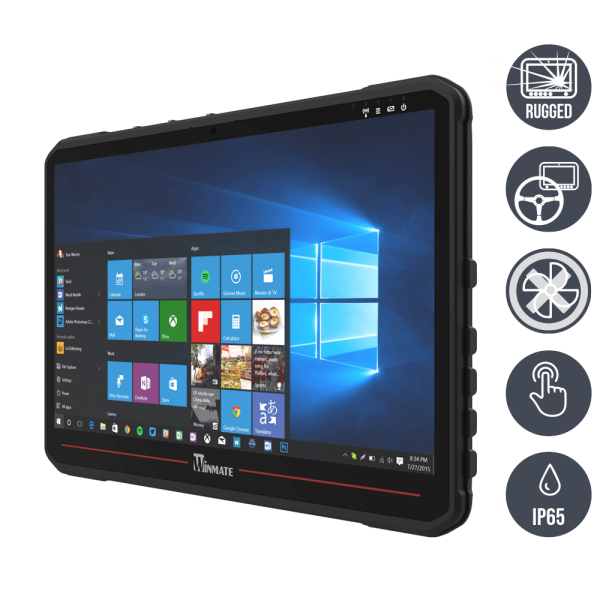

FM14AD-V
Vehicle Mount Computer
Tablet PC ready for vehicle and forklift installation Ruggedized Tablet in sturdy magnesium alloy housing Protection class IP65 all around incl. Interfaces Shock and vibration protected (MIL-STD-810H) Antiscratch resistive touch (finger & stylus) SMA connector for external antenna 10-60 V input, wide operating temperature range, mounting accessories etc. The ideal partner for warehouse, logistics, automotive, outdoor etc. Long-term availability
gross price: €0.00
Prices plus VAT plus shipping costs
Delivery time: upon request
Order number: | 23140001 |
Manufacturer: | WM |
Matchcode manufacturer: | nein |
Manufacturer: | Winmate |
series name: | Vehicle Mounted Computer |
Manufacturer item number: | FM14AD-V |
mechanics: | Vehicle Mount Computer |
dimensions width: | 34,2 |
dimensions height: | 22,5 |
dimensions depth: | 5,2 |
weight: | 2,5 |
Material housing: | Aluminium / aluminium |
protection device: | IP65 |
colour: | Schwarz / black |
VESA-Mounting Interface: | VESA 75 x 75 / 100 x 100 mm |
cooling: | lüfterlos / fanless |
Display-diagonal (inch): | 14,0 |
aspect ratio: | 16:9 |
resolution: | 1920 x 1080 |
brightness: | 700 cd/m² |
contrast: | 800:1 |
Display-Technology: | LCD, LED Backlight |
Touch-Screen : | Projected Capactive / Multi-Touch |
usability: | Finger/Stift/Handschuh / finger/pen/glov |
CPU Typ: | Core i5 |
CPU Model: | 1235U |
CPU speed: | 1,3 GHz |
CPU cores: | 4 |
RAM size (MB): | 8192 |
RAM max. Größe (MB: | 32768 |
RAM Typ: | SDRAM-DDR5 |
SSD design: | NVMe |
SSD capacity: | 128 |
SSD number: | 1 |
safety: | TPM 2.0 |
WLAN: | Ja / yes |
Bluetooth: | Ja / yes |
WWAN: | Optional / optional |
Ethernet_connections: | 1x RJ-45 |
Ethernet data transfer: | 1 x Gigabit-LAN |
Camera front: | Ja / yes |
Camera front resolution: | 2MP |
USB: | 1x USB 3.0 Type C (OTG), 1x USB 2.0 Port |
serial: | 2x RS-232 |
LAN: | 1x RJ45 - 10/100 Mbps |
Card Slot: | 1x Micro SD Slot, 1x Dual-Nano SIM Slot |
Power: | 1x 10-60 V/DC, DC Plug |
controls: | 5 Keys: Power, 4x Function Key |
operating system: | Windows 10 IoT Enterprise |
operating temperatur min.: | -30°C |
operating temperatur max.: | 50°C |
Shock: | MIL-STD-810H Method 516.8 Procedure I |
Vibration: | MIL-STD-810H Method 514.8 Procedure I |
voltage input DC: | 10 V-60 V |
external power supply: | 12 V/DC, 100 - 240 V/AC, DC plug |
