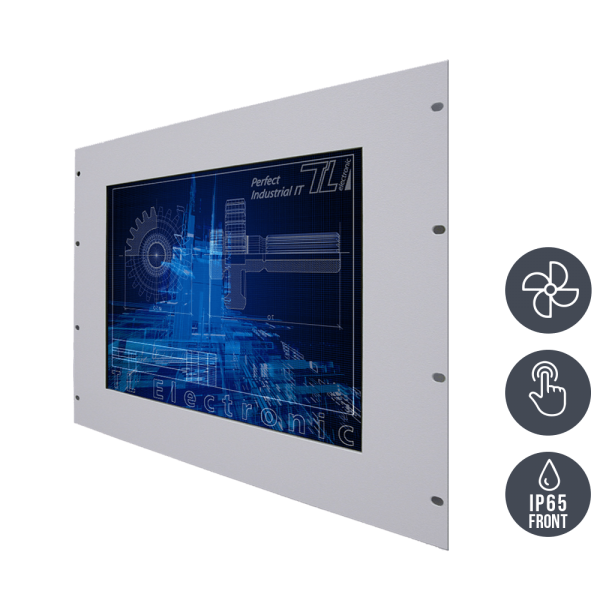

WM 17-IK70-19-PRU
Touch-Screen for 1-Finger Operation

Built-in Panel PC for professional use Industrial Panel PC in sturdy steel sheet design Robust steel sheet front panel (IP65 protected) Designed for industrial applications in continuous operation Ready to install for the 19-inch rack Long-term availability

11-Industriemonitore-19-Zoll-Rack-Einbau-WM12-6HE+WM17-8HE
11-Industriemonitore-19-Zoll-Rack-Einbau-WM12-6HE+WM17-8HE
31-Panel-PC-Frontplatten / TL Produkt-Welten / Panel-PC / 19-Zoll Rack Mount / Touch-Screen für 1-Finger-Bedienung
31-Panel-PC-Frontplatten / TL Produkt-Welten / Panel-PC / 19-Zoll Rack Mount / Touch-Screen für 1-Finger-Bedienung
21-Front-right-R17IH7T-OFM1 / TL Produkt-Welten / Panel-PC / 19-Zoll Rack Mount / Touch-Screen für 1-Finger-Bedienung
21-Front-right-R17IH7T-OFM1 / TL Produkt-Welten / Panel-PC / 19-Zoll Rack Mount / Touch-Screen für 1-Finger-Bedienung

Order number: 23171529
gross price: €0.00
Price on request

Prices plus VAT plus shipping costs

Delivery time: upon request

HIGHLIGHTS
  • Diverse Einbau-Frontausführungen
  • Frontseitiger IP65-Schutz
  • Langzeitverfügbarkeit
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 23171529
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: SlimLine-Serie
Manufacturer item number: R17IK7T-OFM1
mechanics: 19" Rack Mount
dimensions width: 48,3
dimensions height: 35,4
dimensions depth: 8,6
Material housing: Stahlblech / steel sheet
Material Front : Stahlblech / steel sheet
protection front: IP65
protection device: IP20
colour: RAL 7035 / light grey
controls: 2 Keys: Power, Reset
VESA-Mounting Interface: VESA 75 x 75 mm, 100 x 100 mm
mounting: Einbau von vorne / front installation
cooling: aktiv / fan cooling
Display-diagonal (inch): 17
aspect ratio: 4:3
resolution: 1280 x 1024
brightness: 350 cd/m²
contrast: 1000:1
Display-Technology: LCD, LED Backlight
Touch-Screen or glass: Resistive Touch
Touch Interface: USB
Manufacturer controller: Premier
voltage input DC: 12 V/DC
external power supply: 12 V/DC, 100 - 240 V/AC, 4-pin
input: 93 Watt
VGA: 1 x 15-pin D-sub
HDMI: 1 x HDMI (optional)
DisplayPort: 1 x DisplayPort
USB: 4 x USB 3.0
serial: 2 x RS232/422/485
Audio: Mic-In, Line-Out
LAN: 2x RJ45 - 10/100/1000 Mbps
Mainboard form factor: Mini-ITX
chipset: Intel H170
CPU Typ: Core i3
CPU Model: 7100T
CPU 64bit: Ja
CPU speed: 3,4 GHz
CPU cores: 2
CPU socket: FCLGA1151
RAM size (MB): 4096
RAM max. size (MB): 16384
RAM Number of benches: 1
RAM Typ: SO-DDR4
RAM speed: 2400
Grafik Controller: Intel HD Graphics 630
Audio Controller: Realtek ALC283 HD Codec
safety: TPM 2.0
CPU class: Core i3 / i5 / i7
CPU alternative option 1: Core i3-7xxx
CPU alternative option 2: Core i5-7xxx
CPU alternative option 3: Core i7-7xxx
Expansion slots: 1 x PCIe-x16
MiniPCIe Slot SSD : 1
SSD design: 2.5"
SSD capacity (GB): 128
Ethernet connections: 2 x RJ-45
Ethernet data transfer: 2 x Gigabit-LAN
Ethernet Controller : Intel I211IT + I219LM
MiniPCIe Slot WLAN/WWAN : 1
WLAN : Optional / optional
Bluetooth : Nein / no
camera: Nein / no
Barcode Scanner: Nein / no
RFID Reader : Nein / no
operating system: Windows 10 IoT Enterprise
operating-system language version: deutsch / english / italian
operating-system support: Windows 10 IoT
operating temperatur min.: 0°C
operating temperatur max.: 50°C
warranty: 24 Monate / 24 months
