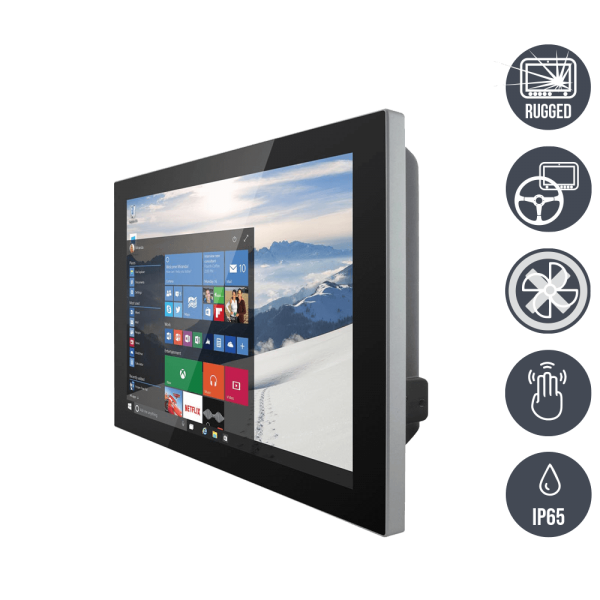

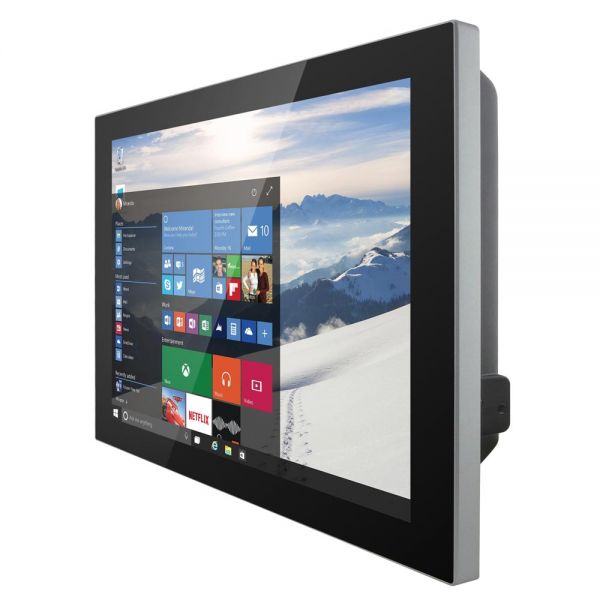

R15FA3S-GSC3
Multitouch-Screen, Projected-Capacitive (PCAP)

Rugged Panel PC for stationary and vehicle-mounted use Industrial Panel PC in sturdy steel sheet housing Protection class IP65 all around incl. Interfaces Shock and vibration resistant acc. MIL-STD-810F/G Flat PCAP glass front without dirt-collecting edges Designed for industrial applications in continuous operation Easy installation with rear VESA mounting interface Long-term availability

01-Rugged-Panel-Industrie-PC-R15FA3S-GSC3 (HB).png / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
01-Rugged-Panel-Industrie-PC-R15FA3S-GSC3 (HB).png / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Order number: 23152336
gross price: €0.00
Price on request

Prices plus VAT plus shipping costs

Delivery time: upon request

HIGHLIGHTS
  • robustes Stahlblech-Chassis
  • VESA-Montageschnittstelle
  • P-CAP Touch-Screen
  • Langzeitverfügbarkeit
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 23152336
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: GS-Serie
Manufacturer item number: R15FA3S-GSC3
mechanics: Chassis (VESA-Mounting)
dimensions width: 30,51
dimensions height: 22,91
dimensions depth: 4,52
Material housing: Stahlblech / steel sheet
Material Front : Stahlblech / steel sheet
protection front: IP65
protection device: IP65
colour: schwarz, grau / black, grey
controls: 2 Keys: Power, Reset, Status-LEDs
VESA-Mounting Interface: VESA 100 x 100 mm
mounting: Tragarm-, Standfuß-, Wandmontage / Suppo
cooling: lüfterlos / fanless
Display-diagonal (inch): 15,0
aspect ratio: 4:3
resolution: 1024 x 768
brightness: 250 cd/m²
contrast: 700:1
Display-Technology: LCD, LED Backlight
Touch-Screen or glass: Projected Capactive / Multi-Touch
Touch Interface: USB
Manufacturer controller: P-CAP Touchcontroller
voltage input DC: 12 V/DC (M12 type)
external power supply: 12 V/DC, 100 - 240 V/AC, IP65
input: 20 Watt
USB: 1 x USB 2.0 (M12 type), 1 x USB OTG
serial: 1 x RS232 (M12 type) (Optional 422/485)
Audio: 1 x 1 Watt Speaker
LAN: 1x RJ45 - 10/100/1000 Mbps (M12 type)
Mainboard form factor: i. MX6
chipset: SoC
CPU Typ: A9
CPU Model: Cortex A9
CPU 64bit: Nein
CPU speed: 1,0 GHz
CPU cores: 2
RAM size (MB): 1024
RAM max. size (MB): 2048
RAM Number of benches: 1
RAM Typ: LPDDR3
Grafik Controller: Graphics in CPU
SSD design: eMMC
SSD max. number: 1
SSD capacity (GB): 16
Ethernet connections: 1 x RJ-45
Ethernet data transfer: 1 x Gigabit-LAN
Betriebssystem: Android 6.0
operating-system language version: deutsch / english / italian
operating-system support: Linux 4.1.15, QT 5.5, Ubuntu 16.04
operating temperatur min.: -15°C
operating temperatur max.: 55°C
warranty: 24 Monate / 24 months
