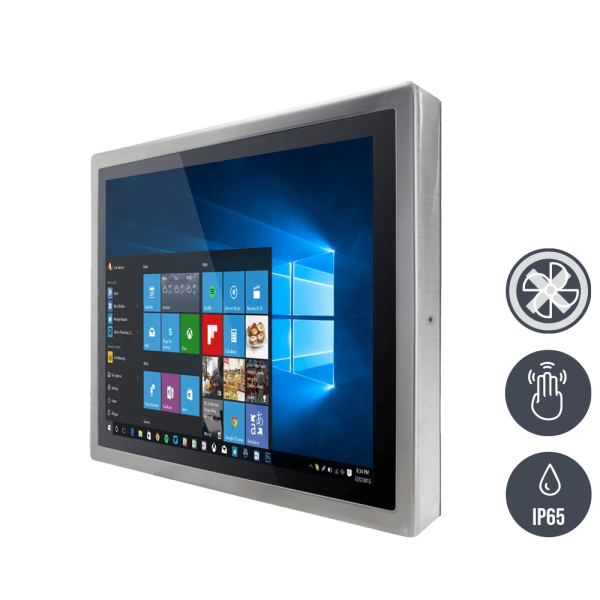

R17IE3S-SPM1
Multitouch-Screen, Projected-Capacitive (PCAP)

Robust industrial Panel PC made of brushed stainless steel Protection class IP65 all around incl. interfaces Easy to clean and corrosion resistant Designed for industrial applications in continuous operation Easy installation with rear VESA mounting interface Perfect for food, chemical, pharmaceutical industry, medical technology, process engineering, plant construction etc. Long-term availability

01-Industrie-Panel-PC-IP65-Edelstahl-PCAP-Multi-Touch-R17IE3S-SPM1.png / TL Produkt-Welten / Panel-PC / Chassis Edelstahl (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
01-Industrie-Panel-PC-IP65-Edelstahl-PCAP-Multi-Touch-R17IE3S-SPM1.png / TL Produkt-Welten / Panel-PC / Chassis Edelstahl (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
12-Industrie-Panel-PC-IP65-Edelstahl-Back.jpg / TL Produkt-Welten / Panel-PC / Chassis Edelstahl (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
12-Industrie-Panel-PC-IP65-Edelstahl-Back.jpg / TL Produkt-Welten / Panel-PC / Chassis Edelstahl (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)

Order number: 23171848
gross price: €2,088.45
€1,755.00 *

Prices plus VAT plus shipping costs

Delivery time: upon request

HIGHLIGHTS
  • Komplett aus Edelstahl
  • Rundum IP65 geschützt inkl. Schnittstellen
  • P-CAP Touch-Screen
  • Langzeitverfügbarkeit
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 23171848
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: ES-Serie
Manufacturer item number: R17IE3S-SPM1
mechanics: Chassis Edelstahl / stainless steel (VES
dimensions width: 41,2
dimensions height: 34,4
dimensions depth: 6,13
Material housing: Edelstahl / stainless steel
Material Front : Edelstahl / stainless steel
protection front: IP65
protection device: IP65
colour: Edelstahl gebürstet / brushed stainless
controls: 2 Keys: Power, Reset
VESA-Mounting Interface: VESA 100 x 100 mm
mounting: Tragarm-, Standfuß-, Wandmontage / Suppo
cooling: lüfterlos / fanless
Display-diagonal (inch): 17,0
aspect ratio: 4:3
resolution: 1280 x 1024
brightness: 350 cd/m²
contrast: 1000:1
Display-Technology: LCD, LED Backlight
Touch-Screen or glass: Projected Capactive / Multi-Touch
Touch Interface: USB
Manufacturer controller: P-CAP Touchcontroller
voltage input DC: 12 V/DC
external power supply: 12 V/DC, 100 - 240 V/AC, 4-pin
USB: 2 x USB 2.0 (M12 type)
serial: 1 x RS-232 (M12 type)
LAN: 1x RJ45 - 10/100/1000 Mbps (M12 type)
chipset: Intel System on chip
CPU Typ: Celeron
CPU Model: N6211
CPU 64bit: Ja
CPU speed: 1,2 GHz
CPU cores: 2
CPU socket: FCBGA1493
RAM size (MB): 4096
RAM Number of benches: 1
RAM Typ: SO-DDR4
Grafik Controller: Intel UHD Graphics for 10th Generation
safety: TPM 2.0
SSD design: M.2
SSD max. number: 1
SSD capacity (GB): 128
Ethernet connections: 1 x RJ-45
Ethernet data transfer: 1 x Gigabit-LAN
WLAN : Optional / optional
Bluetooth : optional / optional
Betriebssystem: Optional
operating-system language version: deutsch / english / italian
operating temperatur min.: 0°C
operating temperatur max.: 45°C
warranty: 24 Monate / 24 months
Weiterführende Links zu "R17IE3S-SPM1"
Verfügbare Downloads:
