W24IE3S-SPA2
Multitouch-Screen, Projected-Capacitive (PCAP)
Robust industrial Panel PC made of brushed stainless steel Protection class IP65 all around incl. interfaces Easy to clean and corrosion resistant Designed for industrial applications in continuous operation Easy installation with rear VESA mounting interface Perfect for food, chemical, pharmaceutical industry, medical technology, process engineering, plant construction etc. Long-term availability

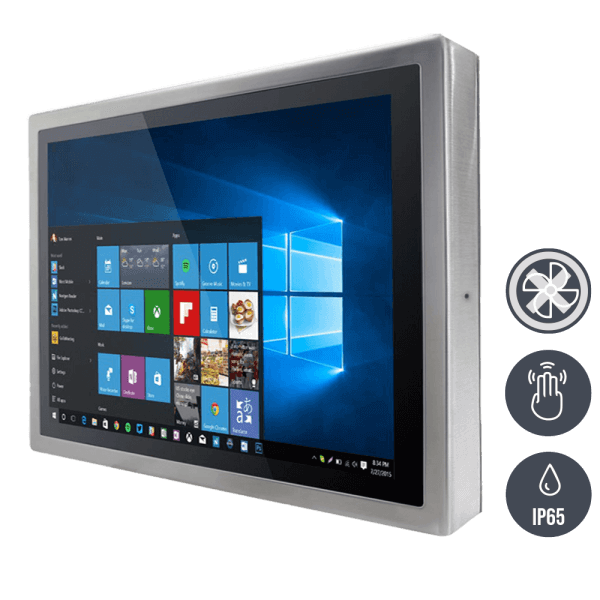

01-Front-right-W24IE3S-SPA2.png / TL Produkt-Welten / Panel-PC / Chassis Edelstahl (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
12-Industrie-Panel-PC-IP65-Edelstahl-Back.jpg / TL Produkt-Welten / Panel-PC / Chassis Edelstahl (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Order number:
23240077
gross price: €2,362.15
€1,985.00 *
gross price: €2,362.15
Prices plus VAT plus shipping costs
Delivery time: upon request
SPEZIFIKATIONEN
| Order number: | 23240077 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| series name: | ES-Serie |
| Manufacturer item number: | W24IE3S-SPA2 |
| mechanics: | Chassis Edelstahl / stainless steel (VES |
| dimensions width: | 62,0 |
| dimensions height: | 39,0 |
| dimensions depth: | 5,6 |
| Material housing: | Edelstahl / stainless steel |
| Material Front : | Edelstahl / stainless steel |
| protection front: | IP65 |
| protection device: | IP65 |
| colour: | Edelstahl gebürstet / brushed stainless |
| controls: | 2 Keys: Power, Reset |
| VESA-Mounting Interface: | VESA 200 x 100 mm |
| mounting: | Tragarm-, Standfuß-, Wandmontage / Suppo |
| cooling: | lüfterlos / fanless |
| Display-diagonal (inch): | 23,8 |
| aspect ratio: | 16:9 |
| resolution: | 1920 x 1080 |
| brightness: | 250 cd/m² |
| contrast: | 3000:1 |
| Display-Technology: | LCD, LED Backlight |
| Touch-Screen or glass: | Projected Capactive / Multi-Touch |
| Touch Interface: | USB |
| Manufacturer controller: | P-CAP Touchcontroller |
| voltage input DC: | 12 V/DC |
| external power supply: | 12 V/DC, 100 - 240 V/AC, 4-pin |
| USB: | 2 x USB 2.0 (M12 type) |
| serial: | 1 x RS-232 (M12 type) |
| LAN: | 1x RJ45 - 10/100/1000 Mbps (M12 type) |
| chipset: | Intel System on chip |
| CPU Typ: | Celeron |
| CPU Model: | N6211 |
| CPU 64bit: | Ja |
| CPU speed: | 1,2 GHz |
| CPU cores: | 2 |
| CPU socket: | FCBGA1493 |
| RAM size (MB): | 4096 |
| RAM Number of benches: | 1 |
| RAM Typ: | SO-DDR4 |
| Grafik Controller: | Intel UHD Graphics for 10th Generation |
| safety: | TPM 2.0 |
| SSD design: | M.2 |
| SSD max. number: | 1 |
| SSD capacity (GB): | 128 |
| Ethernet connections: | 1 x RJ-45 |
| Ethernet data transfer: | 1 x Gigabit-LAN |
| WLAN : | Optional / optional |
| Bluetooth : | optional / optional |
| Betriebssystem: | Optional |
| operating-system language version: | deutsch / english / italian |
| operating temperatur min.: | 0°C |
| operating temperatur max.: | 45°C |
| warranty: | 24 Monate / 24 months |
