WM 15-IK32-ES
no Touch-Screen

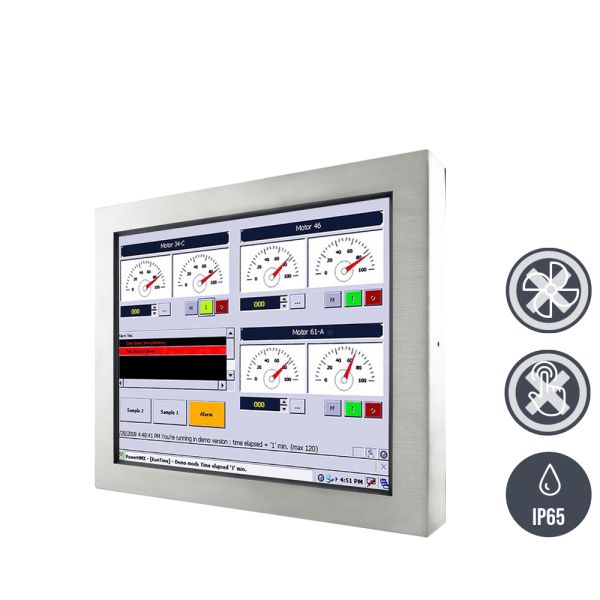

Robust industrial Panel PC made of brushed stainless steel Protection class IP65 all around incl. interfaces Easy to clean and corrosion resistant Designed for industrial applications in continuous operation Easy installation with rear VESA mounting interface Perfect for food, chemical, pharmaceutical industry, medical technology, process engineering, plant construction etc. Long-term availability
01-Industrie-Panel-PC-IP65-Edelstahl-R15IK3S-65C3.jpg / TL Produkt-Welten / Panel-PC / Chassis Edelstahl (VESA-Mounting) /ohne Touch-Screen
Order number:
23152166
gross price: €0.00
Price on request
gross price: €0.00
Prices plus VAT plus shipping costs
Delivery time: upon request
SPEZIFIKATIONEN
| Order number: | 23152166 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| series name: | ES-Serie |
| Manufacturer item number: | R15IK3S-65C3 |
| mechanics: | Chassis Edelstahl / stainless steel (VESA-Mounting) |
| dimensions width: | 37,8 |
| dimensions height: | 30,1 |
| dimensions depth: | 6,4 |
| Material housing: | Edelstahl / stainless steel |
| Material Front : | Edelstahl / stainless steel |
| protection front: | IP65 |
| protection device: | IP65 |
| colour: | Edelstahl gebürstet / brushed stainless steel |
| controls: | 5 Keys: -, +, Power, Esc, Enter |
| VESA-Mounting Interface: | VESA 100 x 100 mm |
| mounting: | Tragarm-, Standfuß-, Wandmontage / Support arm, stand, wall mount |
| cooling: | lüfterlos / fanless |
| Display-diagonal (inch): | 15 |
| aspect ratio: | 4:3 |
| resolution: | 1024 x 768 |
| brightness: | 300 cd/m² |
| contrast: | 2000:1 |
| Display-Technology: | LCD, LED Backlight |
| Touch-Screen or glass: | Schutzglas / protective glass |
| voltage input DC: | 12 V/DC |
| external power supply: | 12 V/DC, 100 - 240 V/AC, 4-pin |
| input: | 52 Watt |
| USB: | 2 x USB 2.0 (M12 type) |
| serial: | 1 x RS-232 (M12 type) |
| Audio: | 1 x Line-in (3,5 mm), 2 x Speaker |
| LAN: | 1x RJ45 - 10/100/1000 Mbps (IP65) |
| Mainboard form factor: | 3,5" |
| chipset: | Intel System on chip |
| CPU Typ: | Core i5 |
| CPU Model: | 7200U |
| CPU 64bit: | Ja |
| CPU speed: | 2,5 GHz |
| CPU cores: | 1 |
| CPU socket: | CPU on Board |
| RAM size (MB): | 4096 |
| RAM max. size (MB): | 16384 |
| RAM Number of benches: | 1 |
| RAM Typ: | SO-DDR4 |
| RAM speed: | 2133 |
| Grafik Controller: | Intel HD Graphics 620 |
| Audio Controller: | Realtek ALC283 HD Codec |
| safety: | TPM 2.0 |
| connections SATA: | 2 |
| CPU class: | Core i3 / i5 / i7 |
| CPU alternative option 1: | Core i5-7xxx |
| CPU alternative option 2: | Core i3-7xxx |
| CPU alternative option 3: | Core i7-7xxx |
| SSD design: | M.2 |
| SSD capacity (GB): | 120 |
| RAID-System: | Nein / no |
| Ethernet connections: | 1 x RJ-45 |
| Ethernet Controller : | Intel I112AT + PHYI219LM |
| WLAN : | Optional / optional |
| Bluetooth : | optional / optional |
| operating system: | Optional |
| operating-system language version: | deutsch / english / italian |
| operating-system support: | Windows 10 IoT |
| operating temperatur min.: | 0°C |
| operating temperatur max.: | 45°C |
| warranty: | 24 Monate / 24 months |
Weiterführende Links zu "WM 15-IK32-ES"
Verfügbare Downloads:
- Drawing Cable WM xx-IK32-ES 201007
- CE Konformitätserklärung DoC Panel-PC WM 15-IK32-x-y-z_201013
- CE_Panel-PC ES-Serie Gebrauchsanleitung 20190130
- Drawing Cable WM xx-IK32-ES 201007
- Drawing Panel-PC WM 15-IK32-ES 201007
