R12IB3S-GSM2
Multitouch-Screen, Projected-Capacitive (PCAP)

Rugged Panel PC for stationary and vehicle-mounted use Industrial Panel PC in sturdy steel sheet housing Protection class IP65 all around incl. Interfaces Shock and vibration resistant acc. MIL-STD-810F/G Flat PCAP glass front without dirt-collecting edges Designed for industrial applications in continuous operation Easy installation with rear VESA mounting interface Long-term availability

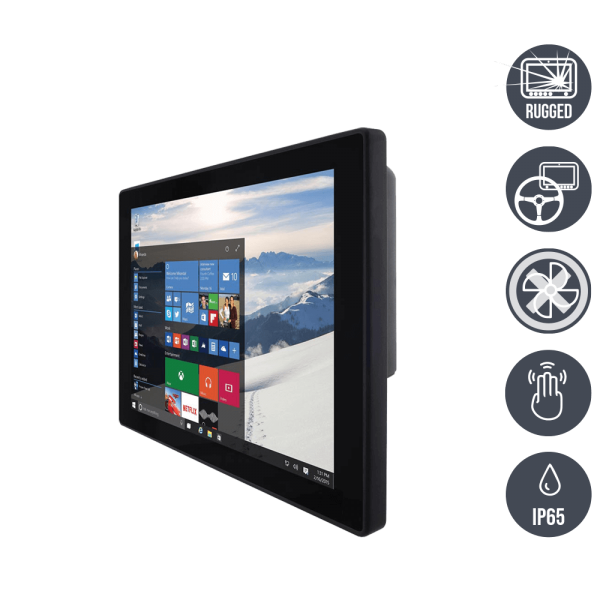

01-Front-right-R12IB3S-GSM2 / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
01-Front-right-R12IB3S-GSM2 / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
11-R12IB3S-GSM2-IP65-Interfaces / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
11-R12IB3S-GSM2-IP65-Interfaces / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)

Order number: 23120392
gross price: €1,131.00
€975.00 *

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

HIGHLIGHTS
  • Schutzart IP65 rundum inkl. Schnitstellen
  • VESA-Montageschnittstelle
  • P-CAP / Resistiver Touch-Screen optional
  • Langzeitverfügbarkeit
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 23120392
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: GS-Serie
Manufacturer item number: R12IB3S-GSM2(HB)
mechanics: Chassis (VESA-Mounting)
dimensions width: 29,62
dimensions height: 22,67
dimensions depth: 4,55
weight: 2,6
Material housing: Stahlblech / steel sheet
Material Front : Stahlblech / steel sheet
protection front: IP65
protection device: IP65
colour: RAL 9004 / signal black
controls: 2 Keys: Power, Reset
VESA-Mounting Interface: VESA 75 x 75 mm
mounting: Tragarm-, Standfuß-, Wandmontage / Support arm, stand, wall mount
cooling: lüfterlos / fanless
Display-diagonal (inch): 12,1
aspect ratio: 4:3
resolution: 1024 x 768
brightness: 500 cd/m²
contrast: 700:1
Display-Technology: LCD, LED Backlight
Touch-Screen or glass: Projected Capactive / Multi-Touch
Touch Interface: USB
Manufacturer controller: P-CAP Touchcontroller
voltage input DC: 12 V/DC (M12 type)
external power supply: 12 V/DC, 100 - 240 V/AC, IP65
input: 24 Watt
USB: 1 x USB 2.0 (M12 type)
serial: 1 x RS-232 (M12 type)
Audio: 1 x 1 Watt Speaker
LAN: 1x RJ45 - 10/100/1000 Mbps (M12 type)
Mainboard form factor: 3,5"
chipset: Intel System on chip
CPU Typ: Celeron Bay Trail-M
CPU Model: N2930
CPU 64bit: Ja
CPU speed: 1,83 GHz
CPU cores: 4
CPU socket: CPU Onboard
RAM size (MB): 2048
RAM max. size (MB): 8192
RAM Number of benches: 1
RAM Typ: SO-DDR3L
RAM speed: 1600
Grafik Controller: Intel HD Graphics 630
Audio Controller: Realtek ALC886 HD Codec
safety: TPM 1.2
connections SATA: 1
CPU class: Atom / Celeron
MiniPCIe Slot SSD : 1
SSD design: mSATA
SSD capacity (GB): 120
RAID-System: Nein / no
CD/DVD-Writer : Nein / no
Ethernet Controller : Intel I210-AT
WLAN : Nein / no
Bluetooth : Nein / no
camera: Nein / no
Barcode Scanner: Nein / no
RFID Reader : Nein / no
operating system: Optional
operating-system language version: deutsch / english / italian
operating-system support: Windows 7 / 8.1 / 10 IoT
operating temperatur min.: -15°C
operating temperatur max.: 55°C
warranty: 24 Monate / 24 months
