R15IB3S-PTC3
Multitouch-Screen, Projected-Capacitive (PCAP)

Multitouch Panel PC for professional use Industrial Panel PC in sturdy plastic housing Flat PCAP glass front without dirt-collecting edges (IP65 Front) Designed for industrial applications in continuous operation Easy installation with rear VESA mounting interface Long-term availability

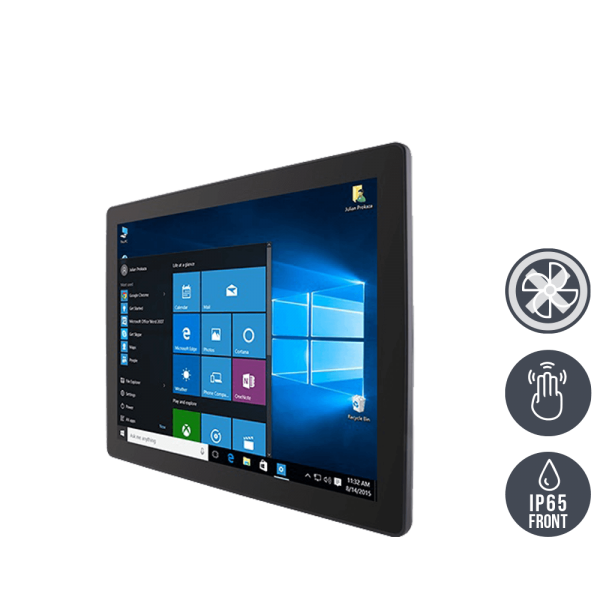

01-Front-right-R15IB3S-PTC3 TL Produkt-Welten Panel-PC  Chassis (VESA-Mounting) Multitouch-Screen projiziert-kapazitiv (PCAP)
01-Front-right-R15IB3S-PTC3 TL Produkt-Welten Panel-PC Chassis (VESA-Mounting) Multitouch-Screen projiziert-kapazitiv (PCAP)
02-Rear-R15IB3S-PTC3 TL Produkt-Welten Panel-PC  Chassis (VESA-Mounting) Multitouch-Screen projiziert-kapazitiv (PCAP)
02-Rear-R15IB3S-PTC3 TL Produkt-Welten Panel-PC Chassis (VESA-Mounting) Multitouch-Screen projiziert-kapazitiv (PCAP)
03-Front-R15IB3S-PTC3 TL Produkt-Welten Panel-PC  Chassis (VESA-Mounting) Multitouch-Screen projiziert-kapazitiv (PCAP)
03-Front-R15IB3S-PTC3 TL Produkt-Welten Panel-PC Chassis (VESA-Mounting) Multitouch-Screen projiziert-kapazitiv (PCAP)

Order number: 23152342
gross price: €748.20
€645.00 *

Prices plus VAT plus shipping costs

Delivery time: upon request

HIGHLIGHTS
  • robustes Kunststoff-Chassis
  • VESA-Montageschnittstelle
  • P-CAP / Resistiver Touch-Screen optional
  • Langzeitverfügbarkeit
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 23152342
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: PT-Serie
Manufacturer item number: R15IB3S-PTC3
mechanics: Chassis (VESA-Mounting)
dimensions width: 35,25
dimensions height: 27,67
dimensions depth: 4,5
weight: 2,8
Material housing: Kunststoff / plastic
Material Front : Kunststoff / plastic
protection front: IP65
protection device: IP20
colour: schwarz / black
controls: 2 Keys: Power, Reset, Status-LEDs
VESA-Mounting Interface: VESA 75 x 75 mm, 100 x 100 mm
mounting: Tragarm-, Standfuß-, Wandmontage / Suppo
cooling: lüfterlos / fanless
Display-diagonal (inch): 15,0
aspect ratio: 4:3
resolution: 1024 x 768
brightness: 300 cd/m²
contrast: 700:1
Display-Technology: LCD, LED Backlight
Touch-Screen or glass: Projected Capactive / Multi-Touch
Touch Interface: USB
Manufacturer controller: P-CAP Touchcontroller
voltage input DC: 12 V/DC
voltage input AC: 100 - 240 V/AC
input: 20 Watt
USB: 1 x USB 3.0, 1 x USB 2.0
serial: 1 x RS-232/422/485
Audio: 2 x 1 Watt Speaker
LAN: 1x RJ45 - 10/100/1000 Mbps
chipset: Intel System on chip
CPU Typ: Celeron Bay Trail-M
CPU Model: N2930
CPU 64bit: Ja
CPU speed: 1,83GHz
CPU cores: 4
CPU socket: CPU on Board
RAM size (MB): 4096
RAM max. size (MB): 8192
RAM Number of benches: 1
RAM Typ: SO-DDR3L
RAM speed: 1600
Grafik Controller: Intel HD Graphics Z3700 series
safety: TPM 2.0
CPU class: Atom / Celeron
SSD design: M.2
SSD max. number: 1
SSD capacity (GB): 128
Ethernet connections: 1 x RJ-45/1 x RJ-45 LAN or optional PoE
Ethernet data transfer: 1 x Gigabit-LAN
Ethernet Controller : Intel I210-AT
operating-system support: Windows 10 IoT
operating temperatur min.: 0°C
operating temperatur max.: 40°C
warranty: 24 Monate / 24 months
