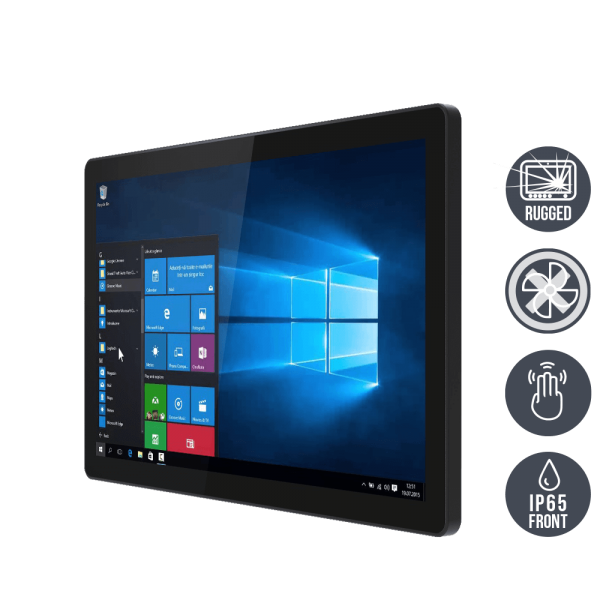

R19IB3S-GCM1
Multitouch-Screen, Projected-Capacitive (PCAP)

Built-in Panel PC for professional use Industrial Panel PC in sturdy steel sheet design Robust plastic front panel (IP65 protected) Shock and vibration resistant acc. MIL-STD-810F/G Designed for industrial applications in continuous operation Panelmount installation with rear screwed bolts Long-term availability

01-Front-R19IB3S-GCM1.png / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
01-Front-R19IB3S-GCM1.png / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Order number: 23191725
gross price: €0.00
Price on request

Prices plus VAT plus shipping costs

Delivery time: upon request

HIGHLIGHTS
  • robustes Stahlblech-Chassis
  • VESA-Montageschnittstelle
  • P-CAP Touch-Screen
  • Langzeitverfügbarkeit
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 23191725
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: GC-Serie
Manufacturer item number: R19IB3S-GCM1
mechanics: Chassis (VESA-Mounting)
dimensions width: 44,5
dimensions height: 37
dimensions depth: 5,1
Material housing: Stahlblech / steel sheet
Material Front : Kunststoff / plastic
protection front: IP65
colour: schwarz / black
controls: 2 Keys: Power, Reset
VESA-Mounting Interface: VESA 100 x 100 mm
mounting: Tragarm-, Standfuß-, Wandmontage / Suppo
cooling: lüfterlos / fanless
Display-diagonal (inch): 19
aspect ratio: 4:3
resolution: 1280 x 1024
brightness: 250 cd/m²
contrast: 1000:1
Display-Technology: LCD, LED Backlight
Touch-Screen or glass: Projected Capactive / Multi-Touch
Touch Interface: USB
Manufacturer controller: P-CAP Touchcontroller
voltage input DC: 12 V/DC
external power supply: 12 V/DC, 100 - 240 V/AC, 4-pin
input: 25 Watt
HDMI: 1 x HDMI (optional)
USB: 1 x USB 2.0, 1 x USB 3.0
serial: 1 x RS-232
LAN: 2x RJ45 - 10/100/1000 Mbps
chipset: Intel System on chip
CPU Typ: Celeron Bay Trail-M
CPU Model: N2930
CPU 64bit: Ja
CPU speed: 1,83 GHz
CPU cores: 4
CPU socket: FCBGA1170
RAM size (MB): 4096
RAM max. size (MB): 8192
RAM Number of benches: 1
RAM Typ: SO-DDR3L
RAM speed: 1600
Grafik Controller: Intel HD Graphics Z3700 series
safety: TPM 1.2
CPU class: Atom / Celeron
SSD design: M.2
SSD max. number: 1
SSD capacity (GB): 128
Ethernet connections: 2 x RJ-45
Ethernet data transfer: 2 x Gigabit-LAN
Ethernet Controller : Intel I210-AT
WLAN : Optional / optional
camera: Nein / no
Barcode Scanner: Nein / no
Betriebssystem: Windows 10 IoT Enterprise
operating-system language version: deutsch / english / italian
operating-system support: Windows 7 / 8 / 8.1
operating temperatur min.: 0°C
operating temperatur max.: 50°C
warranty: 24 Monate / 24 months
