W07IB3S-GCO1HB
Multitouch-Screen, Projected-Capacitive (PCAP)
Built-in Panel PC for professional use Industrial Panel PC in sturdy steel sheet design Robust aluminium front panel (IP65 protected) Shock and vibration resistant acc. MIL-STD-810F/G Designed for industrial applications in continuous operation Panelmount installation with rear screwed bolts Long-term availability

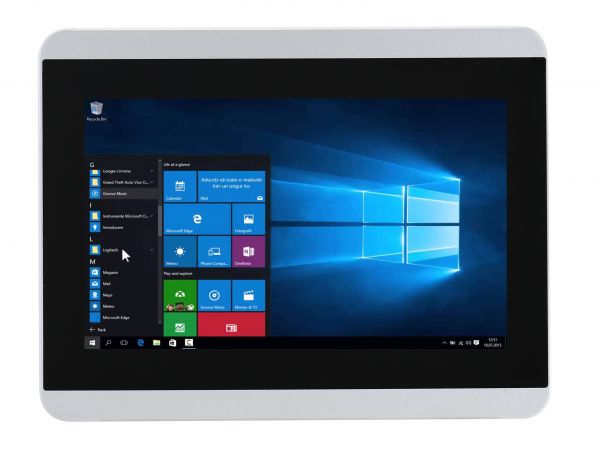

01-Chassis-Industrie-Panel-PC-W07IB3S-GCO1.png / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
02-Chassis-Industrie-Panel-PC-W07IB3S-GCO1 / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Order number:
23070037
gross price: €1,059.10
€890.00 *
gross price: €1,059.10
Prices plus VAT plus shipping costs
Delivery time: upon request
SPEZIFIKATIONEN
| Order number: | 23070037 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| series name: | GC-Serie |
| Manufacturer item number: | W07IB3S-GCO1 |
| mechanics: | Chassis (VESA-Mounting) |
| dimensions width: | 18,94 |
| dimensions height: | 14,54 |
| dimensions depth: | 1,41 |
| Material housing: | Stahlblech / steel sheet |
| Material Front : | Aluminium / aluminum |
| protection front: | IP65 |
| controls: | 2 Keys: Power, Reset |
| VESA-Mounting Interface: | VESA 38,1 x 30 mm |
| mounting: | Tragarm-, Standfuß-, Wandmontage / Suppo |
| cooling: | lüfterlos / fanless |
| Display-diagonal (inch): | 7,0 |
| aspect ratio: | 4:3 |
| resolution: | 1024 x 600 |
| brightness: | 1000 cd/m² |
| contrast: | 700:1 |
| Display-Technology: | LCD, LED Backlight |
| Touch-Screen or glass: | Projected Capactive / Multi-Touch |
| Touch Interface: | USB |
| Manufacturer controller: | P-CAP Touchcontroller |
| voltage input DC: | 12 V/DC |
| external power supply: | 12 V/DC, 100 - 240 V/AC, 4-pin |
| HDMI: | 1 x HDMI (optional) |
| USB: | 1 x USB 2.0, 1 x USB 3.0 |
| serial: | 1 x RS-232 |
| Audio: | 1 x Speaker |
| LAN: | 2x RJ45 - 10/100/1000 Mbps |
| CPU Typ: | Celeron |
| CPU Model: | N2930 |
| CPU 64bit: | Ja |
| CPU speed: | 1,83 GHz |
| CPU cores: | 4 |
| CPU socket: | FCBGA1170 |
| RAM size (MB): | 4096 |
| RAM Number of benches: | 1 |
| RAM Typ: | SO-DDR3L |
| RAM speed: | 1600 |
| Grafik Controller: | Intel HD Graphics Z3700 series |
| CPU class: | Atom / Celeron |
| SSD design: | mSATA |
| SSD max. number: | 1 |
| SSD capacity (GB): | 128 |
| Ethernet connections: | 2 x RJ-45 |
| Ethernet data transfer: | 2 x Gigabit-LAN |
| Ethernet Controller : | 2 x Intel Gigabit Ethernet Controller |
| WLAN : | Optional / optional |
| Bluetooth : | optional / optional |
| Betriebssystem: | Optional |
| operating-system language version: | deutsch / english / italian |
| operating temperatur min.: | 0°C |
| operating temperatur max.: | 50°C |
| warranty: | 24 Monate / 24 months |
