WM 19-IK70-CH
no Touch-Screen

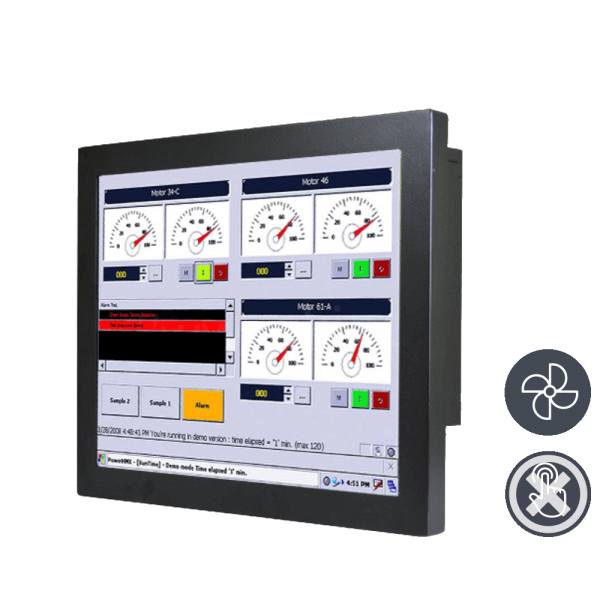

Chassis Panel PC for professional use Industrial Panel PC in sturdy steel sheet housing Designed for industrial applications in continuous operation Easy installation with rear VESA mounting interface Long-term availability
01-Chassis-Industrie-Panel-PC-R19IK7T-CHM1.png / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / ohne Touch-Screen
Order number:
23191596
gross price: €0.00
Price on request
gross price: €0.00
Prices plus VAT plus shipping costs
Delivery time: upon request
SPEZIFIKATIONEN
| Order number: | 23191596 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| series name: | SlimLine-Serie |
| Manufacturer item number: | R19IK7T-CHA1 |
| mechanics: | Chassis (VESA-Mounting) |
| dimensions width: | 43,2 |
| dimensions height: | 36,2 |
| dimensions depth: | 7 |
| Material housing: | Stahlblech / steel sheet |
| Material Front : | Stahlblech / steel sheet |
| protection front: | IP54 |
| protection device: | IP20 |
| colour: | RAL 9004 / signal black |
| controls: | 2 Keys: Power, Reset |
| VESA-Mounting Interface: | VESA 75 x 75 mm, 100 x 100 mm |
| mounting: | Tragarm-, Standfuß-, Wandmontage / Support arm, stand, wall mount |
| cooling: | aktiv / fan cooling |
| Display-diagonal (inch): | 19 |
| aspect ratio: | 4:3 |
| resolution: | 1280 x 1024 |
| brightness: | 400 cd/m² |
| contrast: | 1000:1 |
| Display-Technology: | LCD, LED Backlight |
| Touch-Screen or glass: | Schutzglas / protective glass |
| voltage input DC: | 12 V/DC |
| external power supply: | 12 V/DC, 100 - 240 V/AC, 4-pin |
| input: | 90 Watt |
| HDMI: | 1 x HDMI (Type-A) |
| DisplayPort: | 1 x DisplayPort |
| USB: | 4 x USB 3.0 |
| serial: | 2 x RS-232, 1 x RS232/422/485 |
| Audio: | Mic-In, Line-Out |
| LAN: | 2x RJ45 - 10/100/1000 Mbps |
| Mainboard form factor: | Mini-ITX |
| chipset: | Intel H170 |
| CPU Typ: | Core i3 |
| CPU Model: | 7100T |
| CPU 64bit: | Ja |
| CPU speed: | 3,4 GHz |
| CPU cores: | 1 |
| CPU socket: | LGA1151, H4 |
| RAM size (MB): | 4096 |
| RAM max. size (MB): | 16384 |
| RAM Number of benches: | 1 |
| RAM Typ: | SO-DDR4 |
| RAM speed: | 2400 |
| Grafik Controller: | Intel HD Graphics 630 |
| Audio Controller: | Realtek ALC283 HD Codec |
| safety: | TPM 2.0 |
| connections SATA: | 2 |
| CPU class: | Core i3 / i5 / i7 |
| CPU alternative option 1: | Core i3-7xxx |
| CPU alternative option 2: | Core i5-7xxx |
| CPU alternative option 3: | Core i7-7xxx |
| HDD max. number: | 1 |
| HDD connection: | SATA |
| HDD capacity (GB): | 500 |
| Ethernet connections: | 2 x RJ-45 |
| Ethernet data transfer: | 2 x Gigabit-LAN |
| Ethernet Controller : | Intel I225LM + I219LM |
| MiniPCIe Slot WLAN/WWAN : | 1 |
| WLAN : | Optional / optional |
| Bluetooth : | Nein / no |
| camera: | Nein / no |
| Barcode Scanner: | Nein / no |
| RFID Reader : | Nein / no |
| Betriebssystem: | Optional |
| operating-system language version: | deutsch / english / italian |
| operating-system support: | Windows 10 IoT |
| operating temperatur min.: | 0°C |
| operating temperatur max.: | 50°C |
| warranty: | 24 Monate / 24 months |
