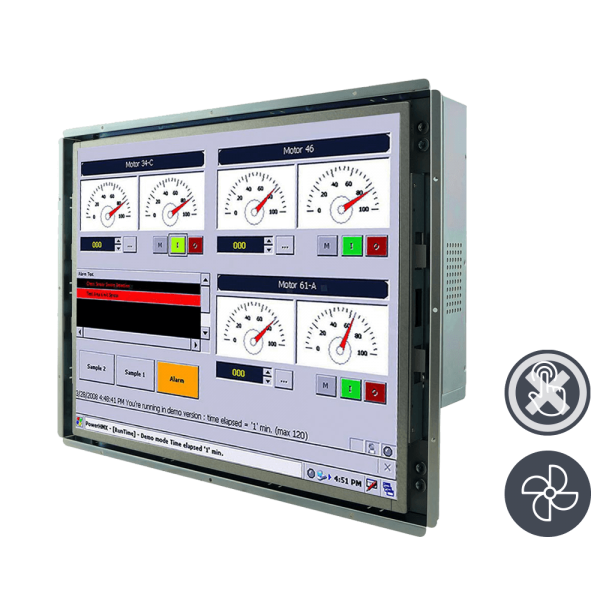

WM 17-IH70-OF
no Touch-Screen

Built-in Panel PC for professional use Industrial Panel PC in sturdy open-frame steel sheet design Rear cover protected against contact (cage chassis) Designed for industrial applications in continuous operation Long-term availability

21-Front-right-R17IH7T-OFM1 / TL Produkt-Welten / Panel-PC / Open Frame (Einbau von hinten) / ohne Touch-Screen
21-Front-right-R17IH7T-OFM1 / TL Produkt-Welten / Panel-PC / Open Frame (Einbau von hinten) / ohne Touch-Screen
31-Panel-PC-Frontplatten / TL Produkt-Welten / Panel-PC / Open Frame (Einbau von hinten) / ohne Touch-Screen
31-Panel-PC-Frontplatten / TL Produkt-Welten / Panel-PC / Open Frame (Einbau von hinten) / ohne Touch-Screen

Order number: 23171540
gross price: €0.00
Price on request

Prices plus VAT plus shipping costs

Delivery time: upon request

HIGHLIGHTS
  • Montage als Openframe oder mit Frontplatte
  • Robuste Stahlblech-Mechanik
  • P-CAP / Resistiver Touch-Screen optional
  • Langzeitverfügbarkeit
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 23171540
Manufacturer: WM
Matchcode manufacturer: ja
Manufacturer: Winmate
series name: SlimLine-Serie
Manufacturer item number: R17IK7T-OFM1
mechanics: Open Frame
dimensions width: 41
dimensions height: 32,9
dimensions depth: 7,4
Material housing: Stahlblech / steel sheet
Material Front : Aluminium / aluminum
protection device: IP22
colour: RAL 7035 / light grey
controls: 3 Keys: Power On/Of, Reset, Brightness
VESA-Mounting Interface: VESA 75 x 75 mm, 100 x 100 mm
mounting: Einbau von vorne / front installation
cooling: aktiv / fan cooling
Display-diagonal (inch): 17
aspect ratio: 4:3
resolution: 1280 x 1024
brightness: 400 cd/m²
contrast: 1000:1
Display-Technology: LCD, LED Backlight
Touch-Screen or glass: Schutzglas / protective glass, optional Touch Screen Resistive
voltage input DC: 12 V/DC
voltage input AC: 100 - 240 V/AC
external power supply: 12 V/DC, 100 - 240 V/AC, 4-pin
input: 93 Watt
HDMI: 1 x HDMI (optional)
DisplayPort: 1 x DisplayPort
USB: 4 x USB 3.0
serial: 2 x RS232/422/485
Audio: Mic-In, Line-Out
LAN: 2x RJ45 - 10/100/1000 Mbps
Mainboard form factor: Mini-ITX
chipset: Intel H170
CPU Typ: Core i3
CPU Model: 7100T
CPU 64bit: Ja
CPU speed: 3,4 GHz
CPU cores: 2
CPU socket: FCLGA1151
RAM size (MB): 4096
RAM max. size (MB): 16384
RAM Number of benches: 1
RAM Typ: SO-DDR4
RAM speed: 2400
Grafik Controller: Intel HD Graphics 630
Audio Controller: Realtek ALC283 HD Codec
safety: TPM 2.0
CPU class: Core i3 / i5 / i7
CPU alternative option 1: Core i3-7xxx
CPU alternative option 2: Core i5-7xxx
CPU alternative option 3: Core i7-7xxx
Expansion slots: 1 x PCIe-x16
HDD design: 2,5"
HDD max. number: 1
HDD connection: SATA
HDD capacity (GB): 500
MiniPCIe Slot SSD : 1
SSD design: M.2
SSD max. number: 1
SSD capacity (GB): 256
Ethernet connections: 2 x RJ-45
Ethernet data transfer: 2 x Gigabit-LAN
Ethernet Controller : Intel I211IT + I219LM
MiniPCIe Slot WLAN/WWAN : 1
WLAN : Ja / yes
Bluetooth : Nein / no
camera: Nein / no
Barcode Scanner: Nein / no
RFID Reader : Nein / no
operating system: Windows 10 IoT Enterprise
operating-system language version: deutsch / english / italian
operating-system support: Windows 10 IoT
operating temperatur min.: 0°C
operating temperatur max.: 50°C
warranty: 24 Monate / 24 months
