W10IB3S-OFH1
no Touch-Screen, Touch-Screen for 1-Finger Operation

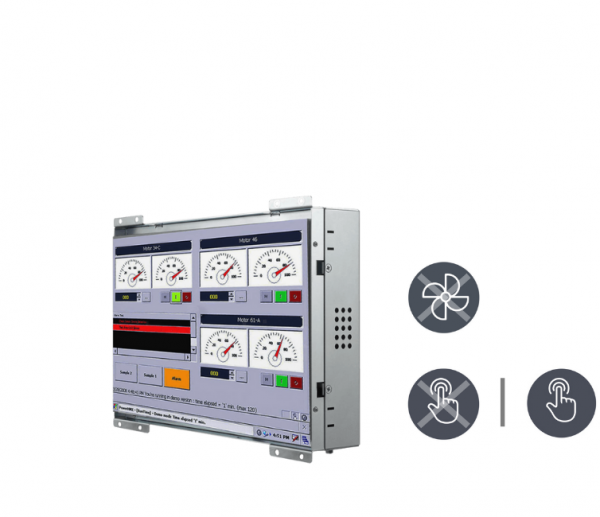

Built-in Panel PC for professional use Industrial Panel PC in sturdy open-frame steel sheet design Rear cover protected against contact (cage chassis) Designed for industrial applications in continuous operation Long-term availability
21-Einbau-Industrie-Panel-PC-W10IB3S-OFH1-v1.png / TL Produkt-Welten / Panel-PC / Open Frame (Einbau von Hinten) / Resistive / Glas (optional)
Order number:
23100529
gross price: €0.00
Price on request
gross price: €0.00
Prices plus VAT plus shipping costs
Delivery time: upon request
SPEZIFIKATIONEN
| Order number: | 23100529 |
| Manufacturer: | WM |
| Matchcode manufacturer: | ja |
| Manufacturer: | Winmate |
| series name: | SlimLine-Serie |
| Manufacturer item number: | W10IB3S-OFH1 |
| mechanics: | Open Frame |
| dimensions width: | 23,7 |
| dimensions height: | 17,4 |
| dimensions depth: | 4,74 |
| Material housing: | Stahlblech / steel sheet |
| protection device: | IP22 |
| colour: | RAL 7035 / light grey |
| controls: | 2 Keys: Power, Reset |
| VESA-Mounting Interface: | VESA 75 x 75 mm |
| mounting: | Einbau von vorne / front installation |
| cooling: | lüfterlos / fanless |
| Display-diagonal (inch): | 10,1 |
| aspect ratio: | 16:9 |
| resolution: | 1024 x 600 |
| brightness: | 450 cd/m² |
| contrast: | 800:1 |
| Display-Technology: | LCD, LED Backlight |
| Touch-Screen or glass: | Resistive / Glas (optional) |
| Touch Interface: | USB oder RS-232 |
| Manufacturer controller: | Premier |
| voltage input DC: | 12 V/DC |
| external power supply: | external, 100–240 VAC |
| input: | 24 Watt |
| HDMI: | 1 x HDMI (Type-A) |
| USB: | 1 x USB 3.0, 1 x USB 2.0 |
| serial: | 1 x RS-232, 1 x RS232/422/485 |
| LAN: | 2x RJ45 - 10/100/1000 Mbps |
| Mainboard form factor: | 3,5" |
| chipset: | Intel System on chip |
| CPU Typ: | Celeron Bay Trail-M |
| CPU Model: | N2930 |
| CPU 64bit: | Ja |
| CPU speed: | 1,83 GHz |
| CPU cores: | 4 |
| CPU socket: | FCBGA1170 |
| RAM max. size (MB): | 8192 |
| RAM Number of benches: | 1 |
| RAM Typ: | SO-DDR3L |
| RAM speed: | 1066 |
| Grafik Controller: | Intel HD Graphics Z3700 series |
| Audio Controller: | Realtek ALC886 HD Codec |
| safety: | TPM 2.0 |
| connections SATA: | 1 |
| CPU class: | Atom / Celeron |
| HDD max. number: | 1 |
| HDD connection: | SATA |
| HDD capacity (GB): | 500 |
| SSD design: | 2.5" |
| SSD capacity (GB): | 128 |
| RAID-System: | Nein / no |
| CD/DVD-Writer : | Nein / no |
| Ethernet connections: | 2 x RJ-45 |
| Ethernet data transfer: | 2 x Gigabit-LAN |
| Ethernet Controller : | Intel I210-AT |
| MiniPCIe Slot WLAN/WWAN : | 1 |
| camera: | Nein / no |
| Barcode Scanner: | Nein / no |
| RFID Reader : | Nein / no |
| Betriebssystem: | Optional |
| operating-system language version: | deutsch / english / italian |
| operating-system support: | Windows 7 / 8.1 / 10 IoT |
| operating temperatur min.: | 0°C |
| operating temperatur max.: | 50°C |
| warranty: | 24 Monate / 24 months |
